Specifications
2BV vacuum pump1.oil-free design
2.smooth operation
3.low noise

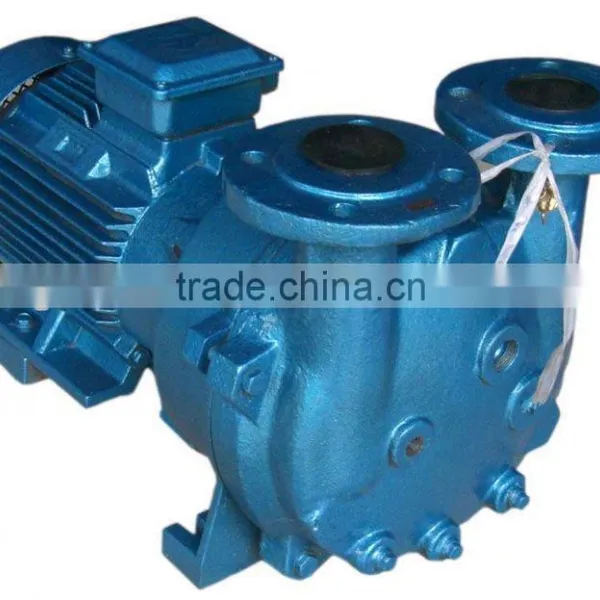

2BV series water ring vacuum pump
Usage
Drawing lessons from advanced technology, the independently-manufactured 2BV water ring vacuum pump which absorbs many advanced technologies. Its unique structure and performance greatly meet the demand of users, which can be widely used for vacuum filtration, vacuum distillation, vacuum sterilization and plastic molding in these fields such as petroleum, chemical, grain deep processing, pharmaceutics, electric power and metallurgy etc.
Characteristics:
1. Coaxial pump installation and simple structure;
2. Mechanical sealed pump acts as standard configuration;
3. High reliability and easy maintenance;
4. 100% oil-free design;
5. Smooth operation and low noise;
6. Displacement from 6m³ to 500m³ per hour;
7. Minimum suction pressure of 33mbar (absolute pressure)
8. Adopting air jet, and the minimum suction pressure of 10mbar(absolute pressure)
9. The greatest pressure to 0.26Mpa (absolute pressure)
Main Technical Parameters
|
Product Model |
Max volume m³/h |
Ultimate vacuum Mpa |
Motor power kw |
Pump speed r.p.m |
Working fluid flow L/minute |
Noise dB(A) |
Weight kg |
| 2BV2060 | 27 | 0.097 | 0.81 | 2900 | 2 | 62 | 37 |
| 2BV2061 | 52 | 0.097 | 1.45 | 2900 | 2 | 65 | 41 |
| 2BV2070 | 80 | 0.097 | 2.35 | 2900 | 2.5 | 66 | 66 |
| 2BV2071 | 110 | 0.097 | 3.85 | 2900 | 4.85 | 72 | 85 |
| 2BV5110 | 165 | 0.097 | 4 | 1440 | 4.2 | 72 | 120 |
| 2BV5111 | 230 | 0.097 | 5.5 | 1440 | 8.3 | 68 | 150 |
| 2BV5121 | 280 | 0.097 | 7.5 | 1440 | 10 | 69 | 210 |
| 2BV5131 | 400 | 0.097 | 11 | 1440 | 15 | 73 | 280 |
| 2BV5161 | 500 | 0.097 | 15 | 970 | 20 | 74 | 390 |
| 2BV6110 | 165 | 0.097 | 4 | 1440 | 4.2 | 72 | 150 |
| 2BV6111 | 230 | 0.097 | 5.5 | 1440 | 8.3 | 68 | 180 |
| 2BV6121 | 280 | 0.097 | 7.5 | 1440 | 10 | 69 | 240 |
| 2BV6131 | 400 | 0.097 | 11 | 1440 | 15 | 73 | 340 |
| 2BV6161 | 500 | 0.097 | 15 | 970 | 20 | 74 | 420 |
