Specifications
1, PLC system easy to operate, adopt LCD touch screen.2, Material:PVC,PET,PP,PP PE and so on.

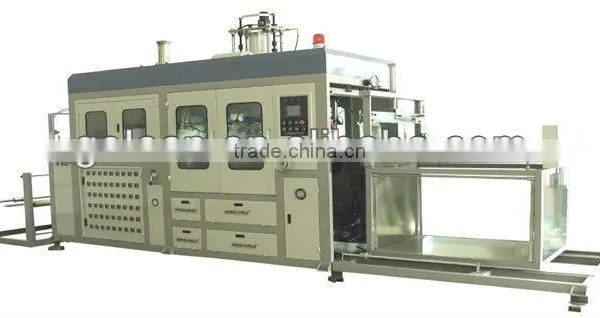

HLJ-D1220S Computerized vacuum forming machine with LCD touch screen
Machine feature:
(1) PLC system easy to operate, adopt LCD touch screen.
(2) Digital pulls sheet structure, can arbitrarily change speed and length control by micro-computer.
(3) Material:PVC,PET,PP,PP PE and so on.
(4) clients can choose two suitable mould plates width from 410mm to 710mm for free.
Some parts of quality( you’d better visit our factory to check the machine if possible),we have
sold to many countries such as Vietnam UAE ,Indonesia and so on:
Pump:BUSCH, Relay:OMRON, Motor: Taiwan , Air cylinder: ZHICHENG
(5) Electric conversion motor, adjustable speed, exact length and width of the pull sheet.
(6) Vibrate to take off from mould
(7 )Electric adjust upper die
(8) Having twice upper mold function
(9) Having delay vacuum function
(10) Having twice vacuum forming function.
Mainly Paremeters
Model |
HJL-D1220S |
Max Forming Area |
710*1220MM |
Min Forming Area |
410*600MM |
Forming Length |
600mm-1220mm |
Forming Height |
180mm |
Material thickness |
0.2mm-1.2mm(Roll materials PVC,PET etc) |
Production Power |
220-500times/hour(according to products) |
Power |
380 Vs/220 Vs/50 HZs |
Furnace Power |
15-25KW |
Vacuum pump |
100 cubic meters BUSCH from Germany |
Motor to Pull sheet |
Taiwan |
Electromagnetic switch |
CKD Japan |
Relay |
OMRON Japan |
Air cylinder |
ZHICHENG |
Heating bricks |
60 heat bricks Henglongji |
Sprayer |
Meiji Japan amount: 10 |
Water cooler |
4P RIOU Shenzhen |
PLC |
Delta |
Weight |
3000KG |
Mechanistic Dimensions |
L6800*W1400*H2650mm |

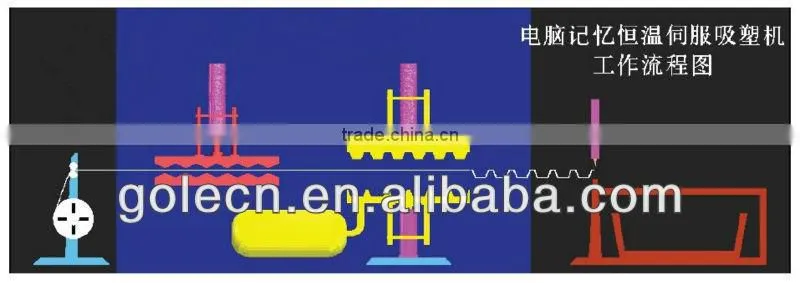

Working process:
