Specifications
original model, increasing the production of dual-use demolition operatives bit fully closed the doorHD-SP III 3500kg automatic blister forming machine for packing egg, egg tray forming machine
Description:

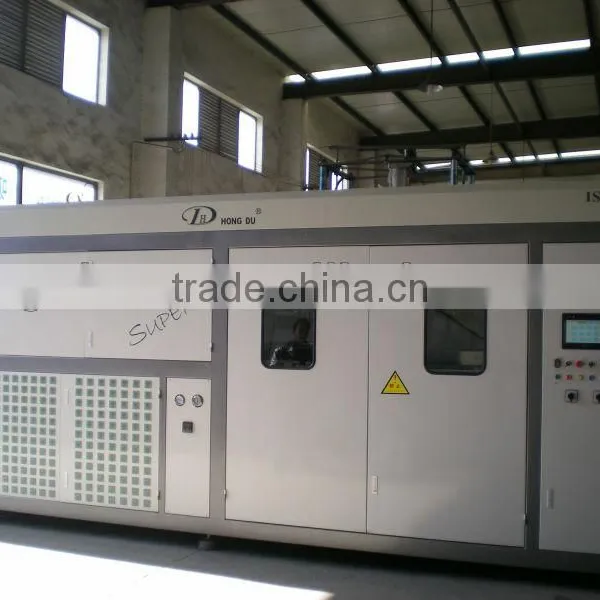

HD-SP Ⅲ Automatic digital high speed blister forming machine (environmentally friendly)
SP-Ⅲ type forming machine is the fifth generation of the latest plastic equipment, this machine has all the features of the original model, increasing the production of dual-use demolition operatives bit fully closed the door. More suitable for dust-free workshop, a modern-scale manufacturer of choice for plastic products.
Some major improvements:
1.Using the latest CNC heating element, the operation easier, more power-saving features, reducing production costs.
2.Retrofitting furnace heat insulation plate mirror reflector, improving thermal efficiency utilization and more stringent product quality meet the requirements.
3.Use of precision drawing tablet device, and have poured film, taking film function, the material losses to a minimum.
4.Cooling fan installed wind guide slot, installation of steel beams supporting insulated pipe, in order to speed up the cooling rate, to improve productivity.
5.The whole machine sheet metal using paint and spray, so that looks more beautiful and more environmentally friendly, easy to clean.
Standard Specifications (HD-SUPER [III]): Computer PLC control touch screen system/computer PLC control manual system
Molding Length: 660-1250mm/26-47in
Width of Applicable Sheet: 410-760mm/16in-30in (adjustable)
Thickness of Applicable Sheet: 0.12-1.8mm
Production Speed: 220-480 times/hour (based on the product shape and sheet thickness)
Number of Molding: 1 or 2 times (free setting)
Molding Height Adjustment: Motor adjustment
Demolding: vibration demolding
Rated Power of Electric Furnace: 39.1KW (max.)
Thermostat: Stepless adjustment by 60 stand-alone electrons (digital input)
Motor Power: 2.25KW (complete machine)
Power of Vacuum Pump: 2.25KW
Power of Water Chiller: 3.37KW (3 h.p.)
Rated Power of Complete Machine: 46.87 KW (max.)
Actual Power Consumption of Complete Machine for Normal Production: 30KW
Power Supply: 3-phase, 380V 50/60HZ
Matched Air Compressor: 15KW/20HP (self-prepared by user)
Mechanical Dimensions: (L) 5,840*(W) 1,370*(H) 2,440mm/230*54*96in
Weight: About 3,500kg
