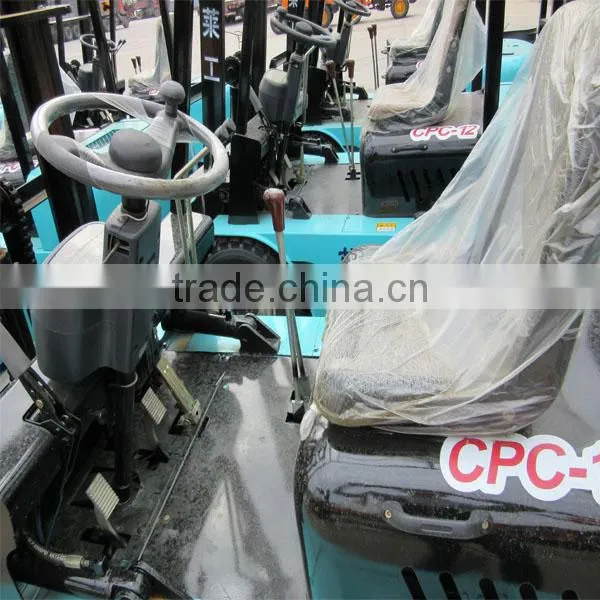

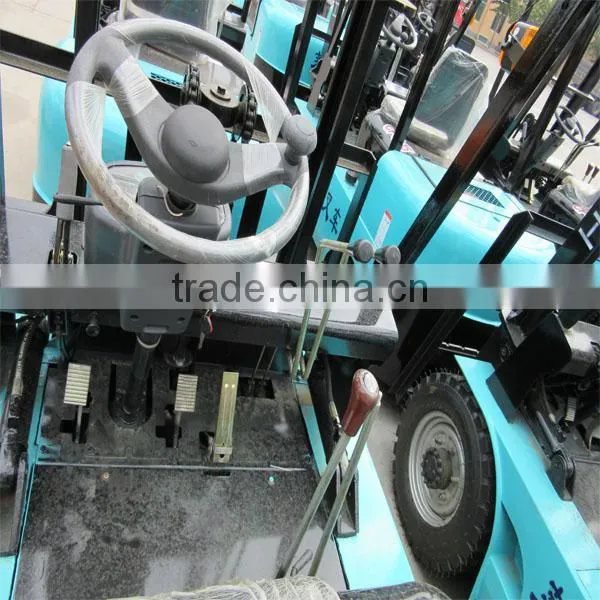

Chinese Diesel Electric Forklift Reach Truck for Sale With CE

Name: Chinese Diesel Electric Forklift Reach Truck for Sale With CE
Brand: GOLE
SKU: 137509581

US$ 1,000 - 3,896 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Henan, China

Brand Name:

GOLE

Henan Province Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Henan, China

Brand Name GOLE

Model Number TKA10-30,TKA15-30

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1000kg,1500kg

Max. Lifting Height 4m

Min. Lifting Height 2m

Fork Length 1070mm

Fork Width 120mm

Overall Dimensions 3250*1160*2122

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

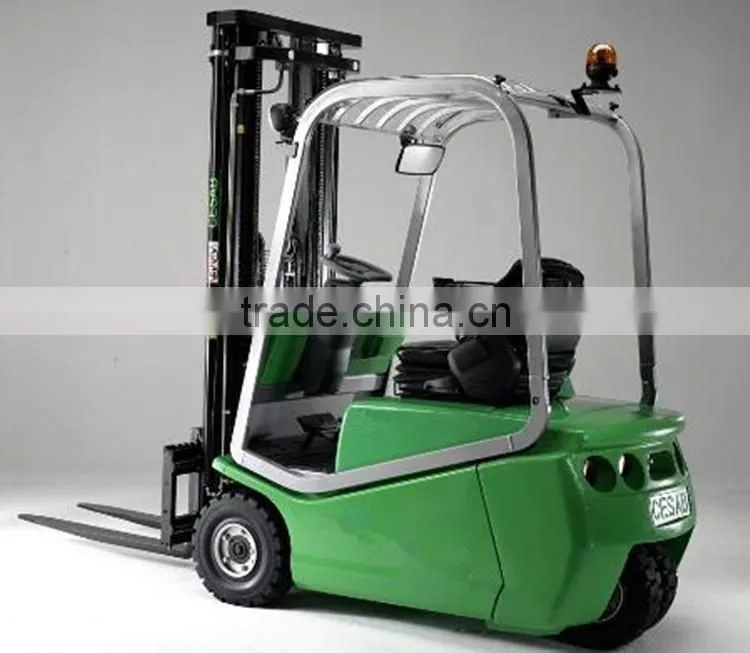

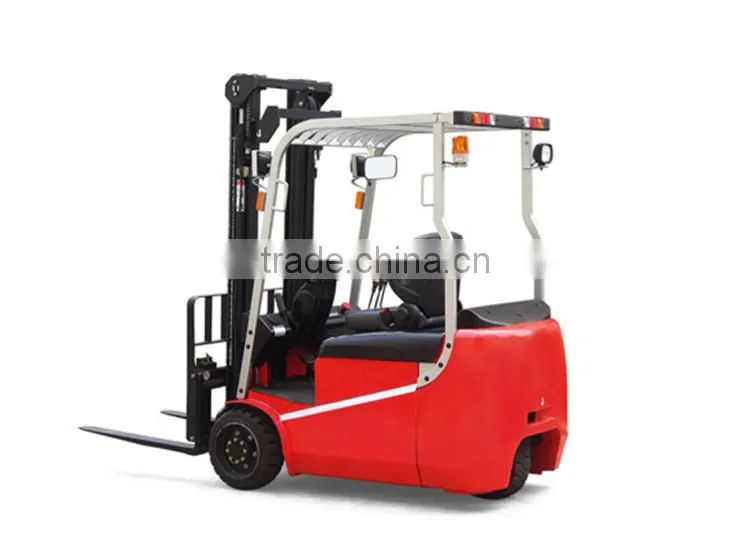

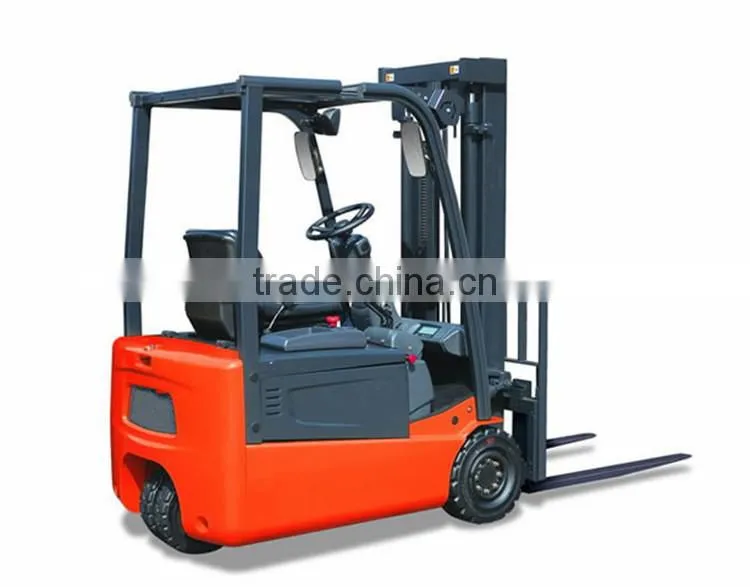

Chinese diesel electric forklift reach truck for sale with CE

Rated load capacity: 1000-1500 kg, maximum lift height: 4500mm

AC drive motor with strong applicability suitable for small space operation and storey operation;

1. Safety neutral device which does not allow starting when in a neutral position to enhance security of the car;

2. Curve Safe control to automatically slow down when turning;

3. Safety oil shut-off valve to ensure security of the personnel and cargo;

4. Forward cylinder security locks and variable wheelbase to ensure more security in forklift running;

5. High-strength overhead guard to ensure safety of the operating personnel;

6. Parallel arrangement of the drives to minimize power consumption;

7. Hydraulic power steering to reduce fatigue;

8. Ergonomically designed operating handle with comfortable soft seat to decrease fatigue in working.

Description Model No.	TKA10-30	TKA15-30
Rated Capacity (KG)	1000	1500
Operator Type	Seated	Seated
Max. Lifting Height (MM)	3000	3000
Min. Turning Radius (MM)	1170	1275
Min. Stacking Aisle---mm (1200*1200 Pallet) --AST	2870	2975
Max Travel Speed km/h-laden/unladen	6.5/7.5	6.0/7.0
Load center MM	500	500
Fork Dimensions-L/W/T---mm	92010035	92010035
Max. Gradeability ---%--Laden/unladen	8/10	8/10
Lifting Speed (MM/S)-laden/unladen	125/170	125/170
Overall Length (MM)	2265	2370
Length-to Fork Face	1345	1450
Overall Width (MM)	915	1055
Height-Overhead guard--mm	1965	1965
Height---Mast Lowered (MM)	2065	2065
Height-Mast Extended w/ Load-Backrest -mm	3545	3545
Height--Free Lift --mm	0	0
Height--seat to overhead guard ---mm	1000	1000
Tilt Angle----Forward/Backward--deg.	2/4	2/4
Fork Spread Range (MM)	220-548	220-548
Front Overhang ----mm	175	175
Wheelbase ----mm	880-961	950-1031
Tread ----mm --front/rear	747	871
Min Ground Clearance--mm	90	90
Front Tyre -- (MM)	305×127	305×140
Rear Tyre -- (MM)	267×127	267×127
Service Brake	Hydraulic
Parking Brake	Hand
Battery V/AH	24V /360 AH	24V/480 AH
Battery-Weight ---kg	295	370
Charger-Intelligent	24V /40 A	24 V/50 A
Driving Motor (KW)	2.8	2.8
Steering Motor (KW)	0.75	0.75
Lifting Motor (KW)	3.5	3.5
Service Weight ---kg --incl. Battery	1950	2170
