Evaporator of Cold Room

Evaporator of Cold Room thumbnail-1
Evaporator of Cold Room photo-1
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Frigeast
Model Number:
DD
Contact Supplier Request Quote Chat Now
Taizhou Yuhua Refrigeration Equipment Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Frigeast
Model Number DD

Specifications

1).0C to +15C Chiller Fin space:4.5mm
2).-18C to 0C Freezer.Fin space:6mm
3).-25C to deep Freezer.Fin space:9mm

1).PC type is suitable for cold rooms with a temperature of

   0°C, such as cold rooms for storing fresh vegetables and eggs. (0C to +15C Chiller Fin space:4.5mm)

2).PCE type is suitable for cold rooms with a temperature of

   18 °C, such as cold rooms for storing freezing meat and fish.(-18C to 0C Freezer.Fin space:6mm)
3).PE type is suitable for cold rooms with a temperature of

   -25 °C or even lower, such as cold rooms for freezing meat and    fish .or seasoning (-25C to deep Freezer.Fin space:9mm)



 PC type is suitable for cold rooms with a temperature of 0°C, such as cold rooms for storing fresh vegetables and eggs.
Model Capacity
 (KW) Temp. 0°CT=7°C		 Cooling
area(M2)		 Fan Parameters Defrosting Unit price
(USD)/FOB
SHANGHAI
No. (Unit) Dia. Of
 fan φmm		 Volume
(m3/h)		 Pressure
(Pa)		 Voltage(V) Power(W) Power(W)  Voltage(V)
PC-2.1/10 2.1 10 1 φ330 2000 98 380/220 120 1200 220 $162.00
PC-3.1/15 3.1 15 1 φ330 2000 98 380/220 120 1800 220 $191.00
PC-4.2/20 4.2 20 1 φ330 2000 98 380 120 1800 220 $258.00
PC-5.2/25 5.2 25 2 φ330 2×2000 98 380 2×120 2400 220 $308.00
PC-6.26/30 6.26 30 2 φ330 2×2000 98 380 2×120 2600 220 $377.00
PC-8/40 8 40 2 φ330 2×2000 98 380 2×120 3900 220 $421.00
PC-11.5/55 11.5 55 2 φ400 2×3000 118 380 2×250 5400 220 $482.00
PC-16.7/80 16.7 80 2 φ500 2×6000 167 380 2×550 3900 220 $679.00
PC-22/105 22 105 2 φ500 2×6000 167 380 2×550 5100 220 $638.00
PC-25.8/125 25.8 125 3 φ500 3×6000 167 380 3×550 6300 220 $1,082.00
PC-33.6/160 33.6 160 4 φ500 4×6000 167 380 4×550 7200 220 $1,247.00
PC-38.7/185 38.7 185 4 φ500 4×6000 167 380 4×550 9000 220 $1,468.00
PC-44/210 44 210 3 φ600 3×10000 167 380 3×1100 14400 220 $1,599.00
PC-52.9/260 52.9 260 4 φ600 4×10000 200 380 4×1100 16200 220 $1,968.00
PC-67.2/330 67.2 330 3 φ600 3×10000 200 380 5×1100 19800 220 $2,553.00

Note:   kilocalorie/ hr= 1.163W
            Suitable for cold rooms with a temperature:  -2 ~ +5°C
           Special processing is available on demand

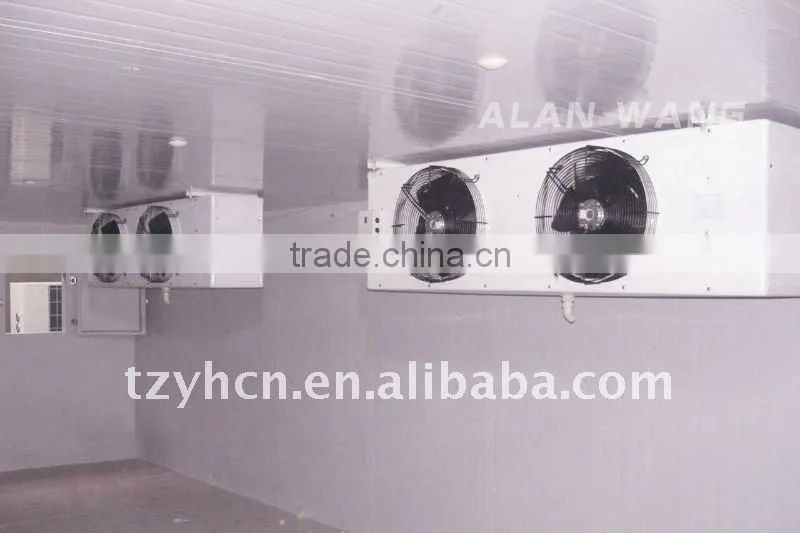

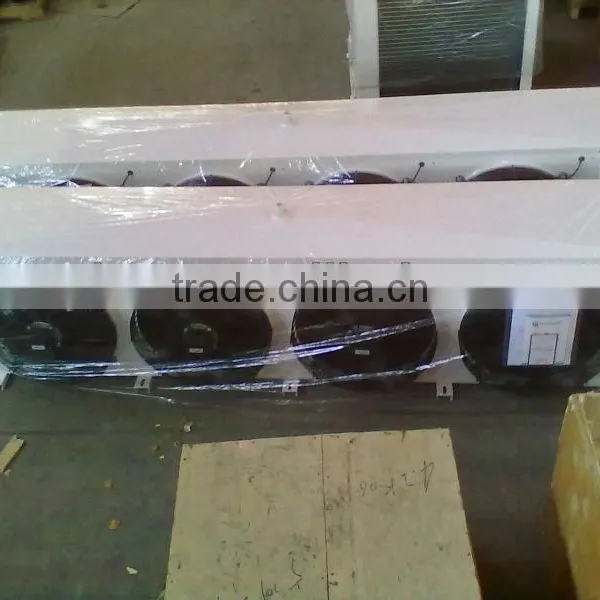

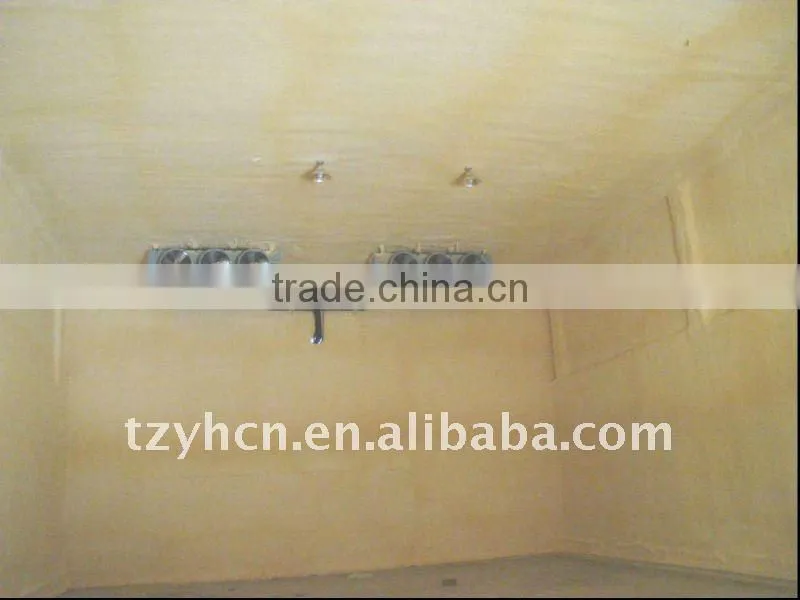

Evaporator of cold roomEvaporator of cold roomEvaporator of cold roomEvaporator of cold room
