1.Bitzer condensing unit
2.we are the best agency of Bitzer compressor in China

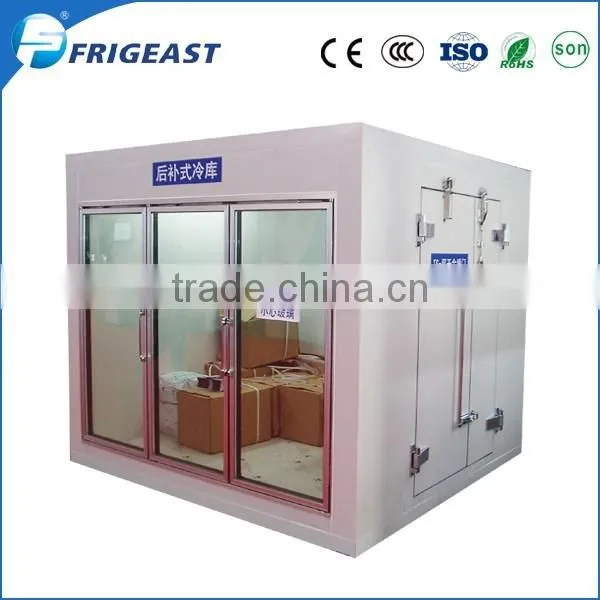

ld store panel
A.To store frozen meat and fish
B.Keep fruits and vegetables,eggs fresh.
C.Frascold semi hermetic piston compressor
D.World Brand Spare Parts,such as Danfoss and Castel etc.
E.High Effective Evapoartors.

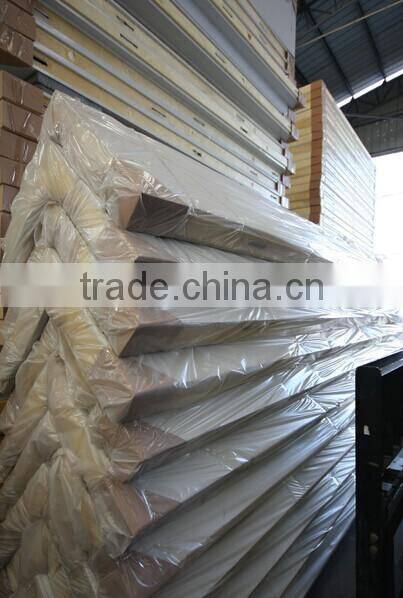

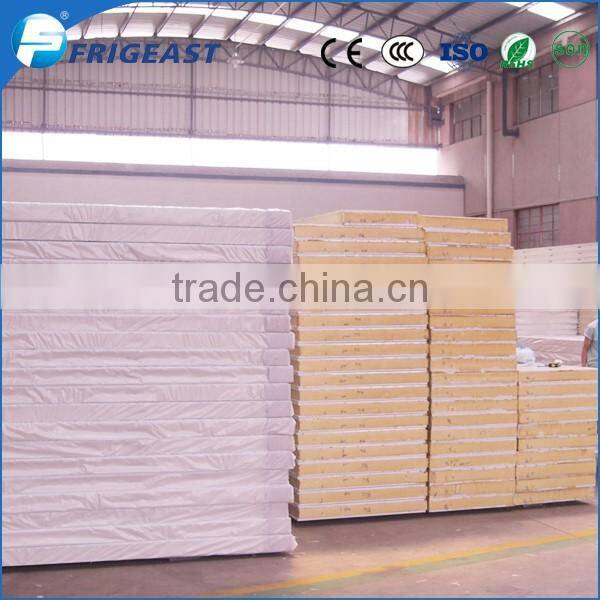

F.PU Foam Sandwich Panels.

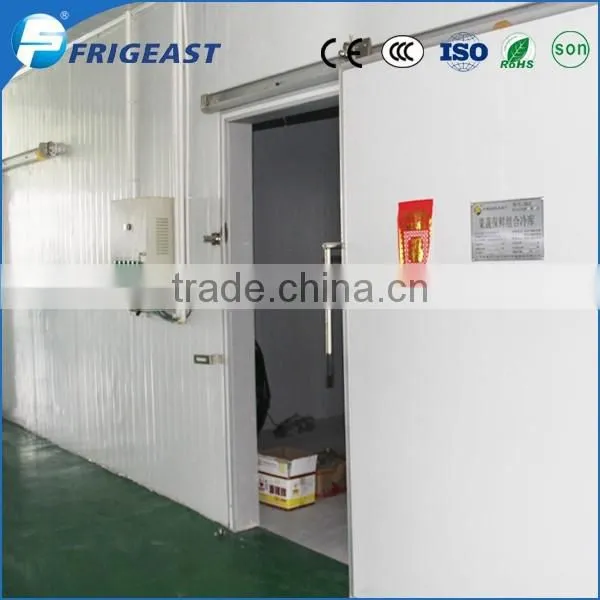

G.Swing or Sliding Doors.
Detailed Product Description
Insulation Material: polyurethane sandwich insulation panel
Insulation Material Thickness: 100mm, 150mm, 200mm, 250mm
Insulation Material Density: ≥42Kg per cubic metre
Stell Plate Thickness: 0.5mm
Insulation Material Fire Rating: B2
Connection: Concave and convex chamfer CAM lock hook connection
Corners Connection: L type angle panel
Refrigeration Equipment: Bitzer Condensing Unit,
Equipment Configuration: Condenser, Reservoirs, Gas-Liquid Separator, Oil Separator, H/L Pressure Controller, Condensing Pressure Controller, liquid Sight Glass, Solenoid Valve, Filter, H/L Pressure Gauge, Oil Pressure Gauge, Junction Box
Brand Compendents: Danfoss, Alco, Castol,

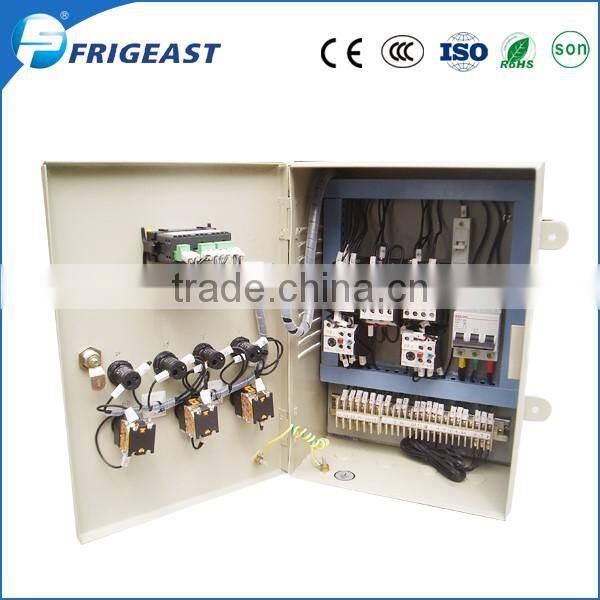

Electric Control Box: With CE Mark
Electrical Element Brand: Schneider, LG, Siemens
Cold Room Features:
1. Modular insulation panel, CAM hook, Installation is simple, easy to install
2. Refrigeration: R22, R404A, Glycol Secondary Refrigerant
3. Temperature Range: From - 45°C To + 20°C
4. Room Size: According to the customer request design
5. Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof,
6. The world famous brand refrigeration fittings
7. Long life cycle
8. Full automatic control, easy to operation and management
9. Defrost Type: Electric defrosting, Water defrosting
10.High efficiency and energy saving design
Classification Temperature:
- 0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
- -5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
- -10 °C ~ -20 °C: Freezer Storage
- -25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
- -35 °C ~ -40 °C: Blast Freezer, Quick-Freeze
- Main Applications:
Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, ommunication equipment, ship manufacturing and more.
Detailed Product Description
Insulation Material: polyurethane sandwich insulation panel
Insulation Material Thickness: 100mm, 150mm, 200mm, 250mm
Insulation Material Density: ≥42Kg per cubic metre
Stell Plate Thickness: 0.5mm
Insulation Material Fire Rating: B2
Connection: Concave and convex chamfer CAM lock hook connection
Corners Connection: L type angle panel
Refrigeration Equipment: Bitzer Condensing Unit,
Equipment Configuration: Condenser, Reservoirs, Gas-Liquid Separator, Oil Separator, H/L Pressure Controller, Condensing Pressure Controller, liquid Sight Glass, Solenoid Valve, Filter, H/L Pressure Gauge, Oil Pressure Gauge, Junction Box
Brand Compendents: Danfoss, Alco, Castol,
Electric Control Box: With CE Mark
Electrical Element Brand: Schneider, LG, Siemens
Cold Room Features:
1. Modular insulation panel, CAM hook, Installation is simple, easy to install
2. Refrigeration: R22, R404A, Glycol Secondary Refrigerant
3. Temperature Range: From - 45°C To + 20°C
4. Room Size: According to the customer request design
5. Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof,
6. The world famous brand refrigeration fittings
7. Long life cycle
8. Full automatic control, easy to operation and management
9. Defrost Type: Electric defrosting, Water defrosting
10.High efficiency and energy saving design
Classification Temperature:
- 0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
- -5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
- -10 °C ~ -20 °C: Freezer Storage
- -25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
- -35 °C ~ -40 °C: Blast Freezer, Quick-Freeze
- Main Applications:
Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, ommunication equipment, ship manufacturing and more.
| Model | Volume (m3) |
Overall Dimensions | Ref Capacity(w) |
Compressor (Frascold) |
Equip Unit | Evaporator | Power(HP) | Power Supply |
|
| Model | Qty | ||||||||
| ZKD-30 | 30 | L4m×W3m×H2.5m | 4450 | F5 25Y | F5 25Y | PCE-6/30 | 1 | 5HP | 3Ph 380V 50Hz |
| ZKD-60 | 60 | L5m×W4m×H3m | 7450 | S7 39Y | S7 39Y | PCE-12/60 | 1 | 7HP | |
| ZKD-90 | 90 | L7.5m×W4m×H3m | 9770 | S10 39Y | S10 39Y | PCE-16/80 | 1 | 10HP | |
| ZKD-150 | 150 | L12.5m×W4m×H3m | 12540 | S15 51Y | S15 51Y | PCE-12/60 | 2 | 15HP | |
| ZKD-200 | 200 | L16.5m×W4m×H3m | 17870 | S20 56Y | S20 56Y | PC-16/80 | 2 | 20HP | |
Note:
1):Refrigerant:R22/R404A/R134
2):Evaporating Temp:-27C
3):Condensing Temp:+50C
4):The thickness of the panels:100mm or 120mm
