Help CenterContinuous Cast Iron Bar/ Grey Iron Round Bar / Ductile Iron Bar
Related Products
-
Grey Cast Iron Square Bar / Ductile Cast Iron Aquare BarUS$ 5 - 550MOQ: 1 Piece -
Grey Iron / Ductile Iron/ Round / Square / Rectangular Continuous Cast Iron BarUS$ 5 - 550MOQ: 1 Piece
-
Continuous Cast Iron Bar Special / Grey Cast Iron Bar/ Duction Cast Iron BarUS$ 5 - 550MOQ: 1 Piece
-
Cast Iron Round Bar / Cast Iron Square Bar / Cast Iron Rectangular BarUS$ 5 - 550MOQ: 1 Piece
-
Grey Iron Bar / Ductile Iron Bar / Continuous Cast Iron BarUS$ 5 - 550MOQ: 1 Piece
Why should choose us ?
We are one of the leading and most successful suppliers of continuously cast iron bar in China. Incorporating more than 10 years of cumulative experience and expertise in the engineering of continously cast iron bar, we have large portfolio of products avaliable.
What we have got ?
HBMCBar is our registered trademark.

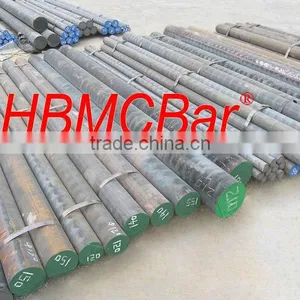

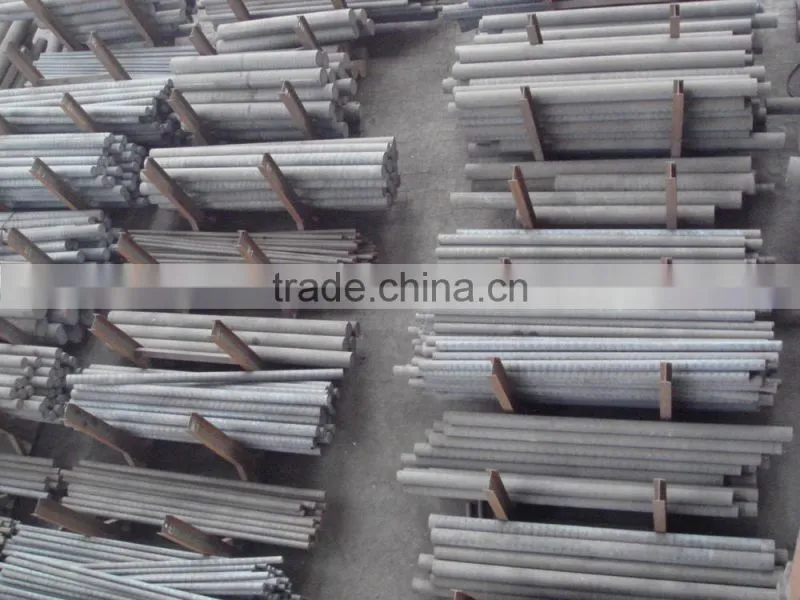

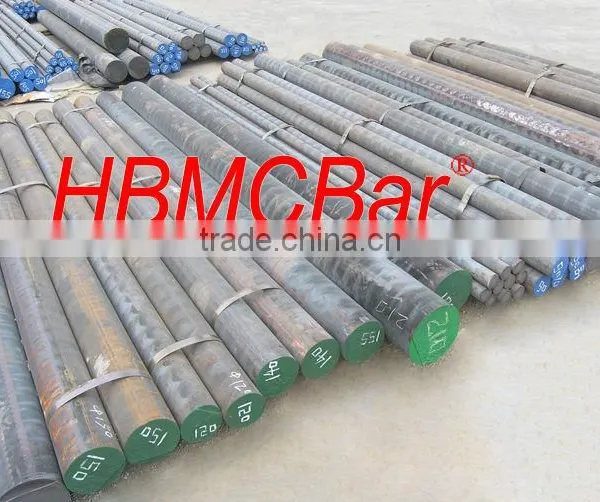

HBMCBar is available in a range of grades, both in grey cast iron and spherodal graphite cast iron bars. Produced in the shape of round, square and rectangle as standard, and also shape of special requirements of customers accepeted.
HBMCBar is produced in a range of sizes of each grade and shape, and under the standard of GB, EN, ISO and ASTM.
Here are some details of products you may want to know.
Standard
GRADE |
RELEVANT STANDARD |
||
HBMCBar 200 |
ISO 200 |
EN-GJL-200 |
ASTM A48 CLASS 30 |
HBMCBar 250 |
ISO 250 |
EN-GJL-250 |
ASTM A48 CLASS 35 |
HBMCBar 300 |
ISO 300 |
EN-GJL-300 |
ASTM A48 CLASS 45 |
HBMCBar 400-15 |
ISO 400-15 |
EN-GJS-400-15 |
|
HBMCBar 400-18 |
ISO 400-18 |
EN-GJS-400-18 |
ASTM A536 CLASS 60-40-18 |
HBMCBar 450-10 |
ISO 450-10 |
EN-GJS-450-10 |
ASTM A536 CLASS 65-45-12 |
HBMCBar 500-7 |
ISO 500-7 |
EN-GJS-500-7 |
ASTM A536 CLASS 80-55-06 |
HBMCBar 600-3 |
ISO 600-3 |
EN-GJS-600-3 |
ASTM A536 CLASS 80-60-03 |

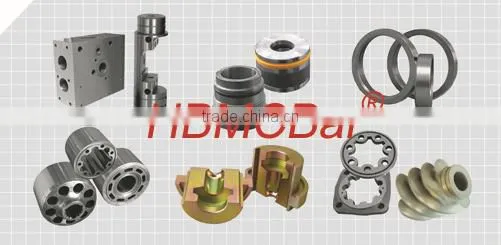

What our products can be used for you ?
| Fluid Power Industry | bushing, slider, disc |
| Hydraulics and Pneumatics Industry | cylinder, manifold, piston, valve, gland |
| Metal Mould Indutry | glass mould |
| Parts for machine | gera, pulley, sheave, sprochet, flange, pin, seal, shaft,wheel,sleeve,roller,coupling,nuts and screws |
More information about family group of HBMCBar
Grey cast irons:
HBMCBar 200 offers excellent machinability , heat and electrical conductivity and noise and vibration damping.
HBMCBar 250 offers a good combination of strength and wear resistance, while still possessing good machinability and produces excellent surface finishes. Noise and vibration damping are execellent in this grade.
HBMCBar 300 is alloyed to achieve the properties, to give excellent wear resistance, strength and heat- treatment response, while still possessing reasonable machinability and an excellent surface finish.
Noudular irons:
HBMCBar 400-15 is the softest grade,offering strengths, excellent machinability combined with good tensile, impact and
fatigue strengths.
HBMCBar 500-7 increased wear resistance,strength & heat-treatment response while still possessing good machinability and excellent surface finish.
HBMCBar 600-3 offers reasonable machinability and excellent surface finish, improved wear resistance, strength & heat
treatment response.
What can be guaranteed for you?
Our strict test by professional engineers of HBMCBar for you.
Feel free to contact us for more information, you will be welcomed.
Sales Manager: Ms Zhang
Mobil : 0086-13930110936
Tel : 0086-0311-85022826
Fax: 0086-0311-87055924
Skype : zhangyun731123
QQ : 2880983290
Web:
