Tri-lobe Roots Blower

Tri-lobe Roots Blower thumbnail-1
Tri-lobe Roots Blower photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hetian
Model Number:
HDSR-50
Contact Supplier Request Quote Chat Now
Qingdao Hetian Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hetian
Model Number HDSR-50
Application Air Blower
Type Roots Blower
Pressure Medium Pressure
Power Source Electric Blower
Rated Power 0.55-4kw
Rated Voltage 380V,400V,415V

Specifications

1)tri-lobe roots blower
2)high efficiency
3)tri-lobe linear-shaped impeller
4)50HZ, 60HZ

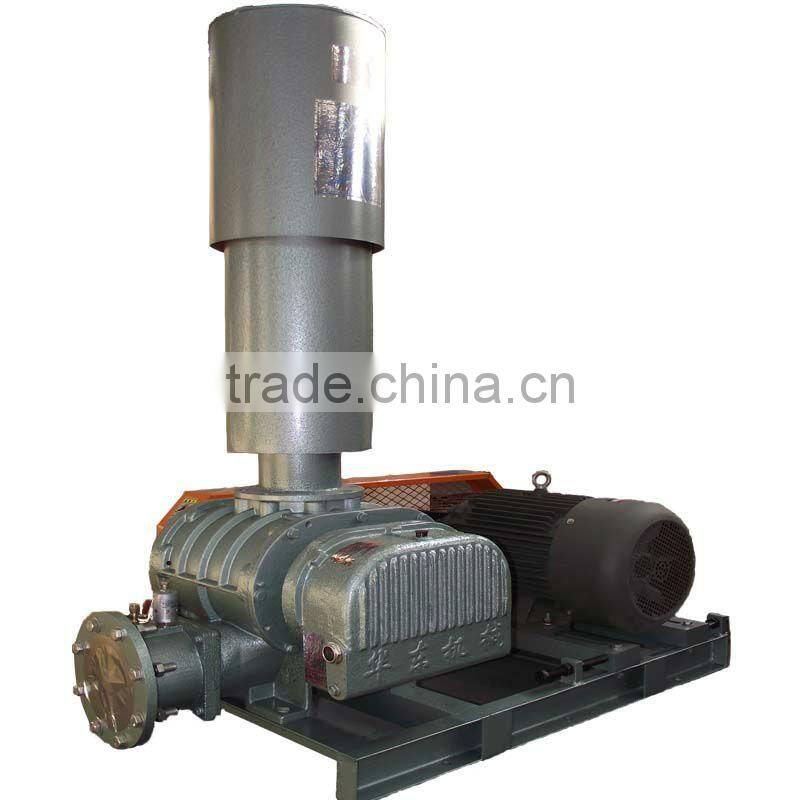

tri-lobe roots blower

HDSR-50



HDSR series tri-lobe roots blower is a new product developed by our Company, it consolidated on the basis of the advanced technical features of various models of roots blower domestic and International. The products developed using Advanced CAD design and processing technology to ensure the blower quality and performance.

Application: Widely used in national economic areas: sewage treatment, flour, aquaculture, pneumatic conveying, electric power and cement industries. A wide range of product capacity, high boost, nearly 20 models, and more than 100 kinds of specifications.

Brief features:

(1)Constant Volume blower, no compression, air conveying is smooth, so there is small flow rate changes along with the pressure changes.

(2)The use of tri-lobe linear-shaped impeller, made inlet and outlet pulsation quiet having low noise and vibration.

(3)Using Special Impeller of mesh curve and small enclosure make the roots blower high efficiency, low energy consumption, and it is a new energy-saving products.

(4) Using a variety of new structural design, made the blower with compact structure, small size, light weight, and elegant appearance.

(5)Using high-precision synchronous hard-toothed surface gears ensure long life of the roots blower.

(6)More cleaner and contain oily free air delivery



Model: HDSR-50
Capacity scope: 0.67-2.27m3/min
Pressure scope: 9.8-58.8kPa
Discharge dia.: 50mm
Cooling type: Air Current
Drive type: belt&pully, direct coupline
Matched motor power: 0.55-4kw
Usable voltage: 380V,400V,415V
Frequency: 50HZ, 60HZ
Weight: 85-87kg
Dimension: 730×390×790mm
Package Dimension: 800×450×570mm





 We have the following types for your choice.

HDSR-50
HDSR-65
HDSR-80
HDSR-100
HDSR-125
HDSR-150
HDSR-175
HDSR-200
HDSR-250
HDSR-300



tri-lobe roots blower
