Small Pasteurized Milk Line

Small Pasteurized Milk Line thumbnail-1
Small Pasteurized Milk Line thumbnail-2
Small Pasteurized Milk Line photo-1

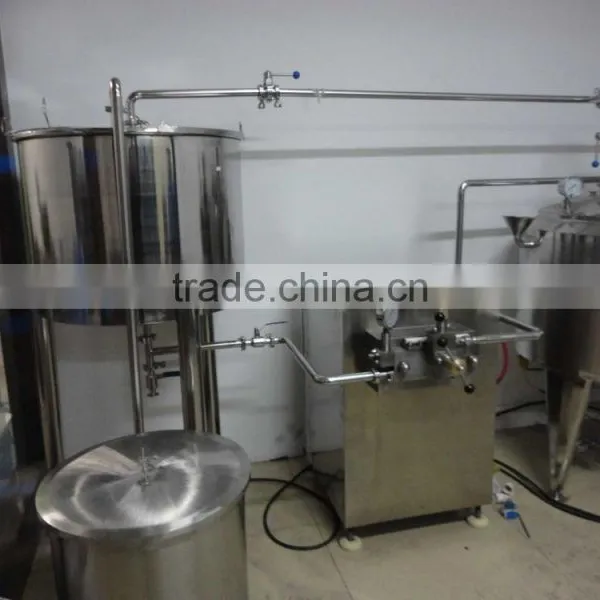

Small Pasteurized Milk Line photo-2
US$ 1,000 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
dingtian
Contact Supplier Request Quote Chat Now
Langfang City Dingtian Light Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
All ports in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Hebei, China
Brand Name dingtian
Usage Milk
Voltage 220V / 380V / 415V
Power(W) 0.5KW~2.2KW
Weight 450KG
Dimension(L*W*H) 1500*1500*2300
Certification CE
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas



We are special manufacture on dairy, yoghurt, milk processing machinery, both the whole line and single machine. We can provide you with advanced craft and training system. The whole milk, yoghurt, milk powder production line machinery includes: milk receiving system, weighing vessel, plate heat interchanger, storage tank, milk clarifier and cream separator, high speed emulsification tank, tubular filter, rotary pump, UHT instant sterilization, plate UHT sterilization machine, double and triple effective vacuum concentration equipment, spray and drying machine, centrifugal pump, screw pump etc.



Equipment list sample of 2T/D milk production line







Equipment list of 2T/D dairy production line
(pasteurized milk/yogurt/cheese/cream/butter)
No. Name Main technology parameter
1 Milk receive, storage and cream separator unit
2 Electron pound scale          Maximum weighing 500KG
3 Milk weighing tank SUS304, single layer, product feeded in through 40 mesh filter net, CIP cleaning ball
4 Milk acceptor SUS304, single layer, CIP cleaning ball
5 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
6 Twin piping filter SUS304, two pipe, stainless steal filter element 100 mesh
7 Dish separator Auto residue discharge
8 Chiling tank SUS304, alveolate jacket, attached with compressor
9 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
10 Preparing unit
11 Blending tank SUS304, heat insulated, top off center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
12 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
13 Mini set of plate-type heat exchanger SUS304, two stages
14 High speed emulsification tank SUS304, heat insulated, bottom high speed emulsifier, digital readout thermometer, supporters with adjustable feet
15 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
16 Twin piping filter SUS304, two pipe, stainless steal filter element 100 mesh
17 Sterilizing and homogenizing unit
18 UHT sterilizer Tub-type, sterilzing temperature 137 C, holding time 4s, full automatic control
19 High pressure homogenizer 40MPa (starting box included)
20 Temperature holding SUS304, holding 300s
21 Distributing plate SUS304, 3 holes
22 Cheese/butter processing unit
23 Bufferying tank SUS304, heat insulated, top off center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
24 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
25 Cream seperator
26 Bufferying container SUS304, with cover
27 Milk pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
28 Butter churner SUS304, stepless timing
29 Cheese vat SUS304, with heating jacket and insising device
30 Pressor SUS304, 6 heads
31 Mould SUS304, 10L, with cover
32 Yogurt fermentation unit
33 Fermentation tank SUS304, heat insulated, top off center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
34 Rotary pump SUS304, hard alloy mechanical seal, manual stepless shift
35 Plate cooler SUS304, single stage, milk discharge at 4C
36 Rotary pump SUS304, hard alloy mechanical seal, manual stepless shift
37 Filling unit
38 Higher position tank SUS304, heat insulated, top off center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
39 Pasteurized milk filling machine
40 Yogurt filling machine
41 CIP system unit
42 Semi-auto CIP system Outer shell of SUS304, inner shell of SUS316, single cleaning way, concentrated acid/alkali tank adding system based on US technology, 100L×2 acid/alkali concentrate tanks
43 CIP return pump SUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
44 Installation part Whole milk processing line installation and commissioning
