industrial vertical sesame peanut butter colloid mill

Specifications

The machine has a compact, stable, large output, low temperature, small size and other characteristics

Colloid mill technical parameters

Model		JMS-50	JMS-80	JMS-130	JMS-180	JMS-240	JMS-300
Materials processing fineness  μm		2-50
Yield ( t/h )		0.005-0.03	0.1-0.5	0.4-2.0	0.8-6.0	4-15	6-20
Motor	KW	1.1	4	7. 5/11/15	15/18.5/22	37/45	55/75
	V	220/380	380	380	380	380	380
	n/min	2820	2890	2930	2930	2970	2970
Rotor diameter mm		50	80	130	180	240	300
Dimensions	Length mm	520	685	975	981	1319	1350
	width mm	250	335	456	476	500	600
	height mm	555	928	1054	1124	1276	1420
Weight Kg		70	210	400	420	1300

. Overview

Colloid fluid ultrafine grinding machinery, both crushing, emulsifying, dispersing, homogenizing, mixing and other functions, can replace the stone, sand mill, ball mill, crushing machines and other organizations.

Second, the main purpose, scope

Food industry: tea, soy milk, ice cream, moon cake stuffing, soy products, beverages, fruit juices, jams

Construction industry: interior and exterior paint, cold porcelain paint, colorful paint, waterproof anti-corrosion coatings, fire retardant coatings

Cultural goods industry: ink, ink, pencil, color advertising, painting color

Chemical industry: grease, paint, emulsified asphalt, adhesives, detergents, leather dyes

Pharmaceutical industry: biologics, vaccines, ointments, various oral

Daily Chemical Industry: shampoo, toothpaste, shoe polish, jacket oil, cosmetics

In addition, the colloid is also used in the plastics industry, textile industry, paper industry and so on.

  Features

1.This sesame paste machine is a new type of equipment for the wet type super-micro processing, suitable for the homogenization, emulsification and comminuting of the emulsions.

2.This sesame paste machine has an advanced design, it can adjust rotate speed of millstones according to different demand of different materials, and users can exchange optionally the blast motor for different materials and working condition.

3.This sesame paste machine has ascendant efficacy(comminuting of the emulsions, spread around, emulsification, suitable for the homogenization etc.), the granularity processed can reach to 2-60μm, the homogenization reaches to 95%.
Application scope: This sesame paste machine is widely applied in the industrial productions of food (Peanut butter, sesame jam, soy milk, dairy products, soft drinks and etc.), medicine (syrups, nutrition liquid, Chinese herb extracts, poultice and etc.), daily chemical products (tooth paste, cosmetic, washing agent and etc.), chemical industry products (pigment, dye, dope, lubricant, petroleum activator and etc.) and the flotation and emulsification of the explosives.

 Working Principle:

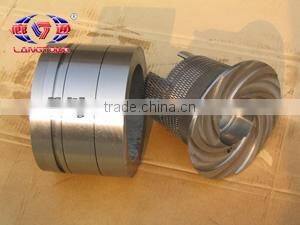

It is a different geometry of the rotor in high-speed rotation of the relative motion,breaking through the shearing, grinding, high-frequency vibration .

It has three areas, one area for coarse grinding, the other area for fine grinding ,and another one for the ultrafine grinding .Through adjusting the gap between the rotor, it can effectively achieve the required standard (the gap also can be re-processed).
