PP Needle Punch Polyester Nonwoven Geotextile Dewatering Bag
Description:
Groupeve Needle-Punched Non-Woven geobag is made of a special kind of nonwoven geotextile because of its special manufacture method by puncturing the rolling formed layer made of randomly oriented short staple fiber. Our raw material is the top class 100% new PP(Polyproplylene) or PET(Polyester) fiber. We are ISO, CE & SGS qualified big factory, who makes the top quality geotextile & geobags in China. Our product is widely used in civil and environmental engineering applications like subsurface drainage, roadway separation, railroad stabilization, erosion control, hard armor underlayment, landfill leachate collection, underground retention/detention systems, environmental protection and other projects.
The most popular inquired Specification:
| Size | Weight | Capacity | Description | Order Qty | Loading qty in 1*40HQ container |
| 1030mm x 700 mm | 400gsm | 125kgs | Raw material: PP UV Resistant HS.Code: 6305320090 Color: White |
2,000,000pcs | 13235pcs |
| 1700mm x 1250 mm | 600gsm | 800kgs | 2,000,000pcs | 3000pcs | |
| 2100mm x 1500mm | 600gsm | 1000kgs | 2,000,000pcs | 2025pcs |
Technical Data for our geotextile:
| Properties | Unit | PET100 | PET150 | PET200 | PET250 | PET300 | PET350 | PET400 | PET450 | PET500 | PET600 | PET800 | |
| Mechanical Properties | |||||||||||||
| Tensile Strength | MD | KN/m | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 |
| TD | KN/m | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | |
| Tear Strength | MD | KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 |
| TD | KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | |
| CBR Plunger Strength | KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |
| Elongation at Yield | MD | % | 25~100 | ||||||||||
| TD | % | 25~100 | |||||||||||
| Hole Size | O90 (O95) | mm | 0.07~0.2 | ||||||||||
| Vertical Permeability | cm/s | k*(10-1~10-3),k=1.0~9.9 | |||||||||||
| Identification Properties | |||||||||||||
| Material | / | Polyester | |||||||||||
| Color | / | White | |||||||||||
| Thickness | mm, ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
| Weight unit area | g/m² | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | |
| Forms of Supply | |||||||||||||
| Roll width | m | 1~6 | |||||||||||
| Roll length | m | 100 | |||||||||||
Overall features & benefits:
1. High strength and elongation, due to the use of superior PP or PET fiber, even in the wet state, it can keep sufficient strength and elongation, excellent stability in civil engineering applications.
2. Net structure formed by indefinite fiber guarantees variability and motility.
3. High permeation and No delamination.
4. Superior wearing and abrasion resistant properties: Corrosion resistance, oxidation resistance, acid and alkali resistance and biological degradation resistance.
5. Light weight, makes it convenient in construction operation.
6. Extends performance life of all the applied projects.

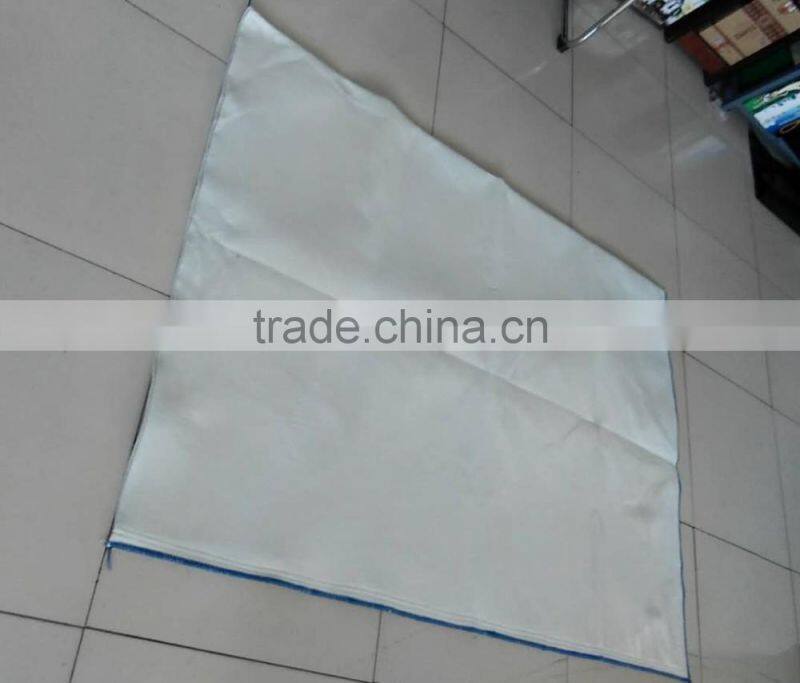

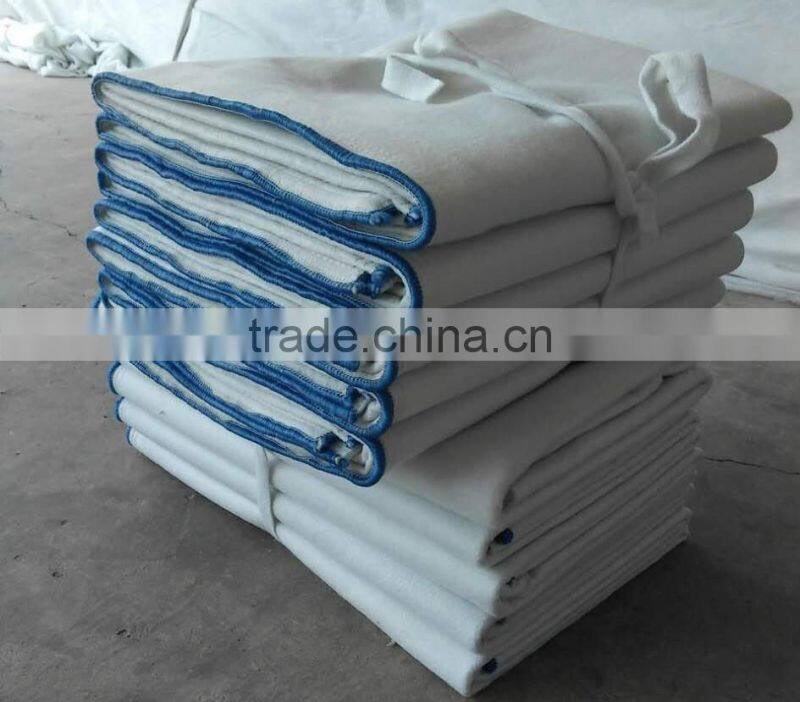

Geobags photos:

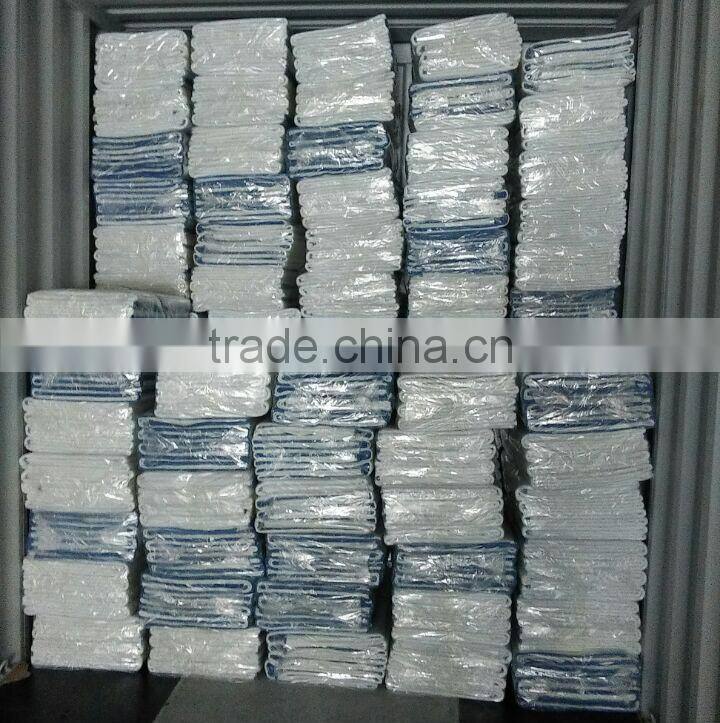

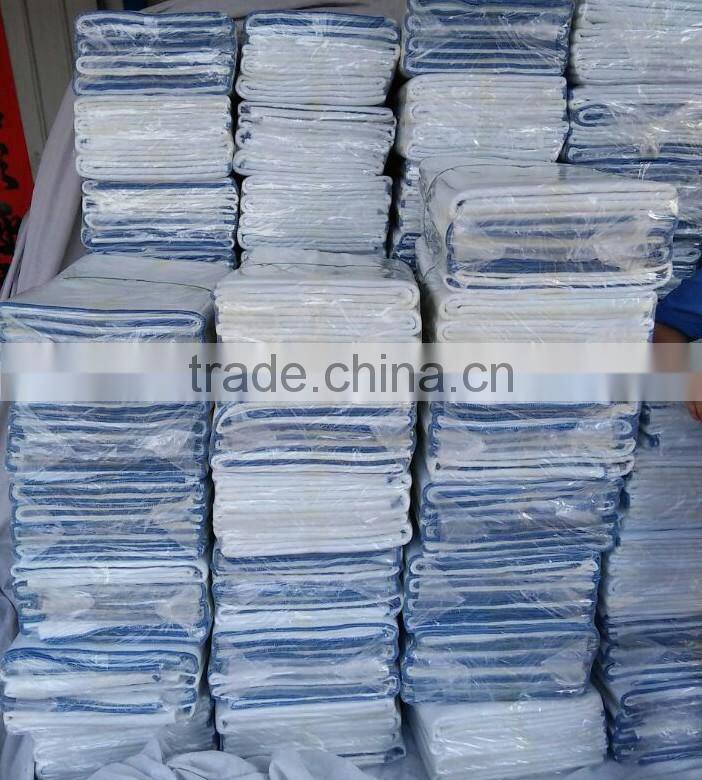

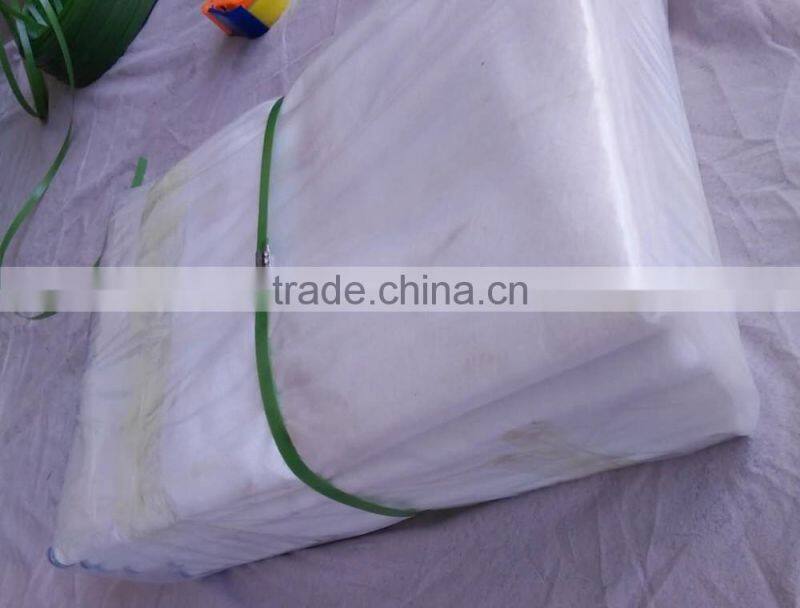

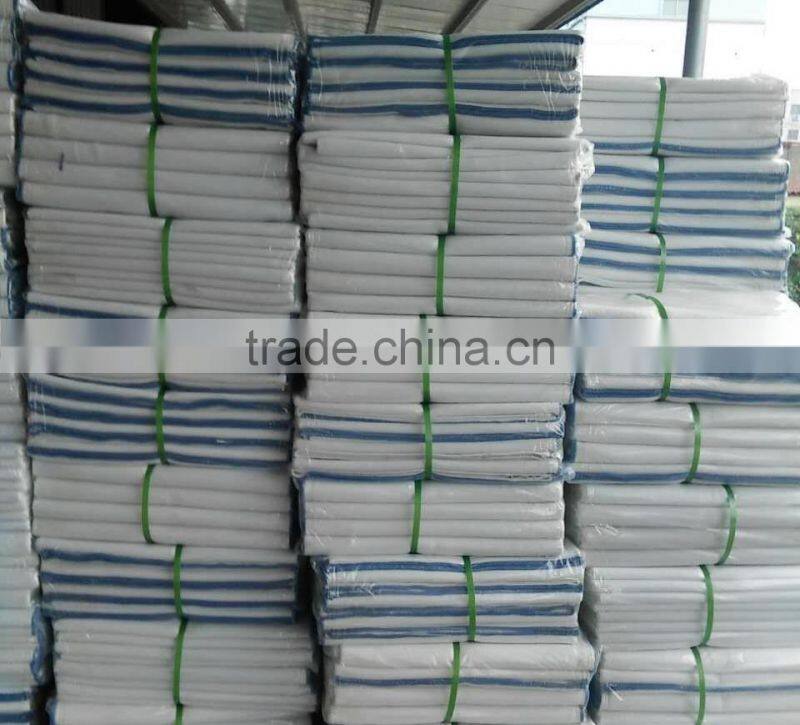

Packing photos:
For more information, please feel free to contact us.
