Free Moving Fiber Laser Marking Machines LX- 20W for Jewelry !!!
More detailes

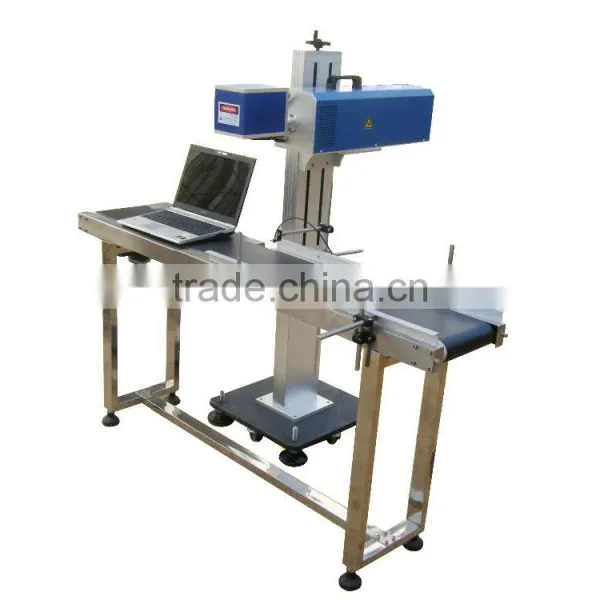

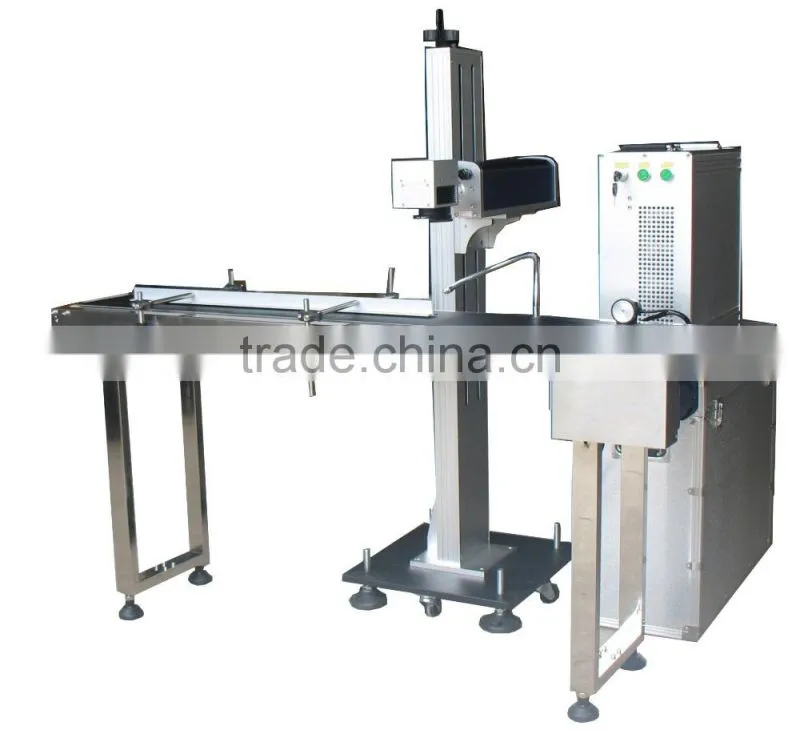

Free Moving Fiber Laser Marking Machines LX- 20W for Jewelry Introduction
Online fly laser marking machine is mainly used to spray and engrave the code. on products package surface.It is
different with traditional laser marking machine. Traditional laser marking machine only can mark on static objects
.Products are flowing on production line When marking with on-line fly laser marking machine .This can greatly
improve efficiency and adapt to industrial production demand. It almost cover all the function of inkjet machine.
This kind of laser marking machine is no longer just marking production data and batch number,it also has
anti-fake ,anti-channel conflict feature because of its visual and tactile effects ,also it never can be erased .
Free Moving Fiber Laser Marking Machines LX- 20W for Jewelry Application
Kinds of metal, alloy, metallic oxide materials
non metal materials, such as: silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, printing ink, plating,
spraying ,coating film etc.
Electronic parts and component, electrical appliance
Telecommunication product
Car ,motor car 's spare parts
Instrument and meters
Plastic case
Aviation and aerospace
Military products
Sanitary package, medical instrument data matrixes ent, clock, Jewelry
Key board, glasses, solar PV, craft
Features
Fast marking speed.
Power is controlled by software , continuously adjustable
Carving effect is perfect ,will never be wiped
Anti-counterfeiting code automatically generated
No consumables,Without wearing parts,maintenance-free,very low operating cost
Perfect dynamic and static marking online adaptation of different production line
Specification
Model No. |
LX-A3 |
The average output power |
20w/30w/50W |
Laser wavelength |
1064nm |
Beam Quality(M2) |
1.5 |
Frequency |
20KHz-80KHz |
Repetitive accuracy |
0.005mm |
Min Linear Width |
0.01mm |
Marking Depth |
0.01-0.2mm |
Max Speed |
7000mm/s |
Standard marking |
100*100mm |
The optional scope of marking |
70×70mm/175×175mm |
Consumed power |
<500W |
Power Supply |
220V/50Hz/15A |
Cooling system |
Air cooling |
Our service
* 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.
* One-year warranty is provided. (The detailed reference will be written into the final contract.)
* Professional staff for installation and training if needed.
* Spare parts are supplying on time or doing some inventory if promising certain sales volume.
* Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
* If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair.
fiber laser marking machine samples
Packaging and shipping
1.Durable wooden case or as per required.
2.The delivery lead time would be 3-7 working days after recieving the payment.
3.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder
