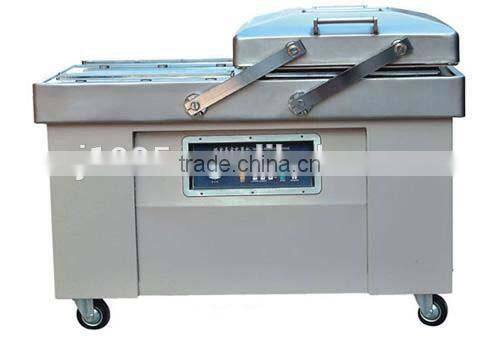

Double Chamber Vacuum Packing Machine
Description:
The products after vacuuming can be prevented from getting damp and going mould, thus to prolong storage. Aerating inert gases after vacuuming can lead to a longer storage and fresh appearance.
Due to its middle size,CJ-DS-510 series are suitable for big products and bulky small articles. It is efficient for continuous production for middle or small factories.
CJ-DS-510 Series have relay control and PCB control for users’ option.
CJ-DS-510/2A Double Chamber Packaging Machine, it is efficient for chamber operating by turns. With chamber height of 40mm, it is suitable for high products.
CJ-DS-510/2B Double Chamber Packaging Machine with flat vacuum lid, it is efficient for chamber operating by turns. It is suitable for vacuuming high water percentage products, due to easy cleaning.
CJ-DS-510/2C Double Chamber Packaging Machine, it is efficient for vacuuming in short time with ultra slim vacuum lid and small vacuum space.
CJ-DS-510/4C Double Chamber packaging machine, it is more efficient, with four sealing bar assembly in each chamber. It mainly applies to small and thin bags.
CJ-DS-510 series can be made with two 20m /h pump or one 40 m /h pump or one 63 m /h pump or one 100 m /h pump.
The model CJ-DS-510/2C and CJ-DS-510/4C can not be made with gas flushing function.
Parameters:
Model |
CJ-DS-510/2A |
CJ-DS-510/2B |
CJ-DS-510/2C |
CJ-DS-510/4C |
Voltage (V/Hz) |
AC 380/50 220/50 110/60 |
|||
Motor Power (W) |
1800 |
1100 |
||
Sealing Power (W) |
600 |
800×2 |
||
Ultimate Vacuum Pressure (Kpa) |
1 |
|||
No. of Sealing Bar forEach Chamber |
2 |
4 |
||
Sealing Length (mm) |
510 |
|||
Sealing Width (mm) |
10 or 2×3 |
|||
Chamber Dimension(L×W×H) (mm) |
610×550×160 |
610×550×150 |
610×550×45 |
610×630×45 |
Vacuum Pump Rate (m3/h) |
20×2 |
40 |
||
Material of Vacuum Chamber |
Stainless steel |
|||
External Dimensions(L×W×H) (mm) |
1270×735×940 |
1270×735×930 |
1270×735×910 |
1270×820×910 |
Net Weight (Kg) |
220 |
230 |
||
product sample:
Sale-after service:
l Warranty: One year since the date of delivery. If there is any wearing part be broken within the warranty and isn't caused by un-properly operation, then the we would offer the new parts for free.(If you use it in a stable voltage,and no big wrong with the machine,it can work for about 8 years)
l Inspection and test :The buyer will do the machine inspection and test when the machines are ready.
l Other : Accompany with the machine we will supply the English instruction book and operational video to make sure you can operate the machine .
packing:

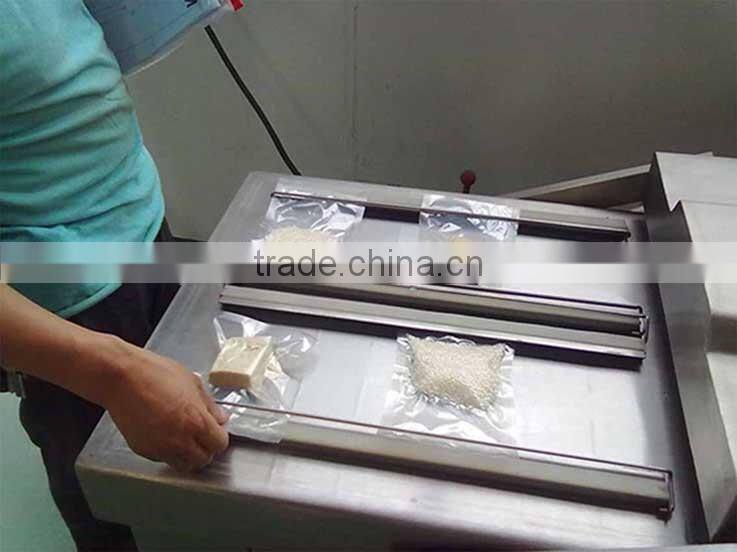

Work place:
