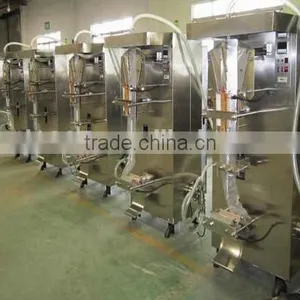

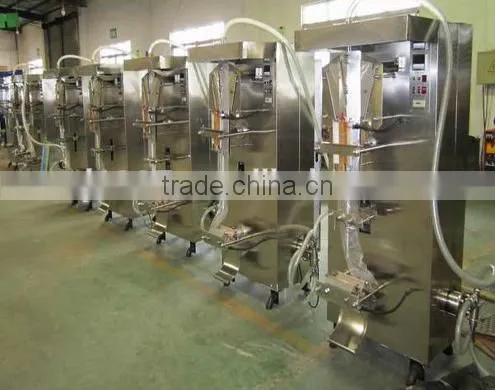

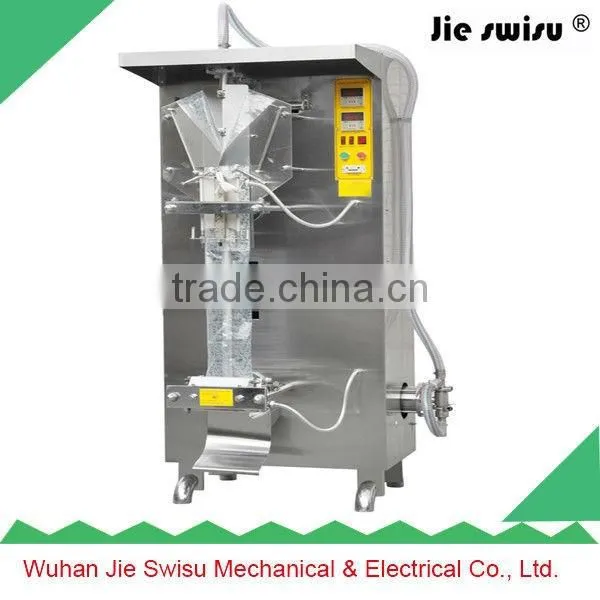

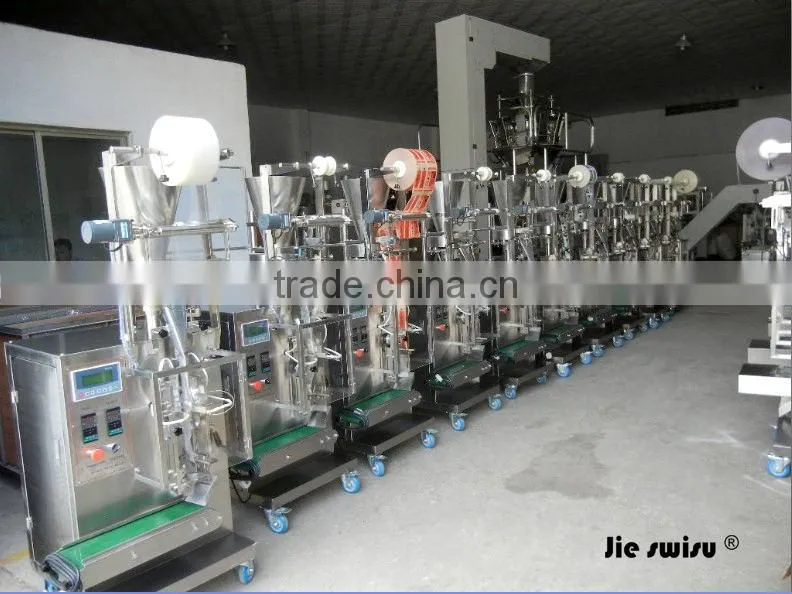

liquid / bag /pouch packing machine
Feature
1 The high degree of automation, automatic quantitative filling, bag making, sealing code;
2 Before packing to ultraviolet disinfection of packaging film, Meet a criterion of food hygiene requirements;
3 Cursor recognition function to prevent accumulation error, more precise for cutting bag;
4 Use stainless steel equipment;
5 Use self-priming pump to quantitative filling ;
6 Straight hot sealing and cutting, bag size, packing weight, easy to adjust reliable sealing and cutting temperatur
Application

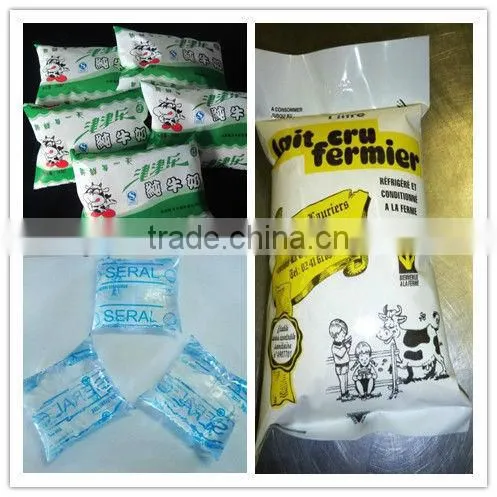

The machine is widely used in food, cosmetic and pharmaceutical industries such as tomato paste, shampoo, facial cream, spices such as paste, liquid, paste, honey.
Features: bag making, measuring, filling, sealing, cutting, counting and hot pressing batch No. or printing date can be done automatically.
Technical parameters
Model |
CJ-YQ500 |
CJ-YQ1000 |
CJ-YQ2000 |
produces the speed( minute) |
30-40 bags/minute |
25-35bags/minute |
20-30bags/minutes |
System bag size( mm) |
240-320mm |
280-360mm |
320mm-400mm |
Films thickness |
0.08 mm |
0.08mm |
0.08mm |
Packing capacity( ml) |
Max 500ml |
Max1000ml |
Max2000ml |
Filling accurary |
±1% |
±1% |
±1.5% |
Voltage |
220 V/380V 50Hz |
220 V/380V 50Hz |
220 V/380V 50Hz |
Weight(KG) |
350KG |
400KG |
450KG |
features size(M) |
0.85×0.75×1.80M |
0.90×0.75×1.80M |
0.95×0.85×1.97M |

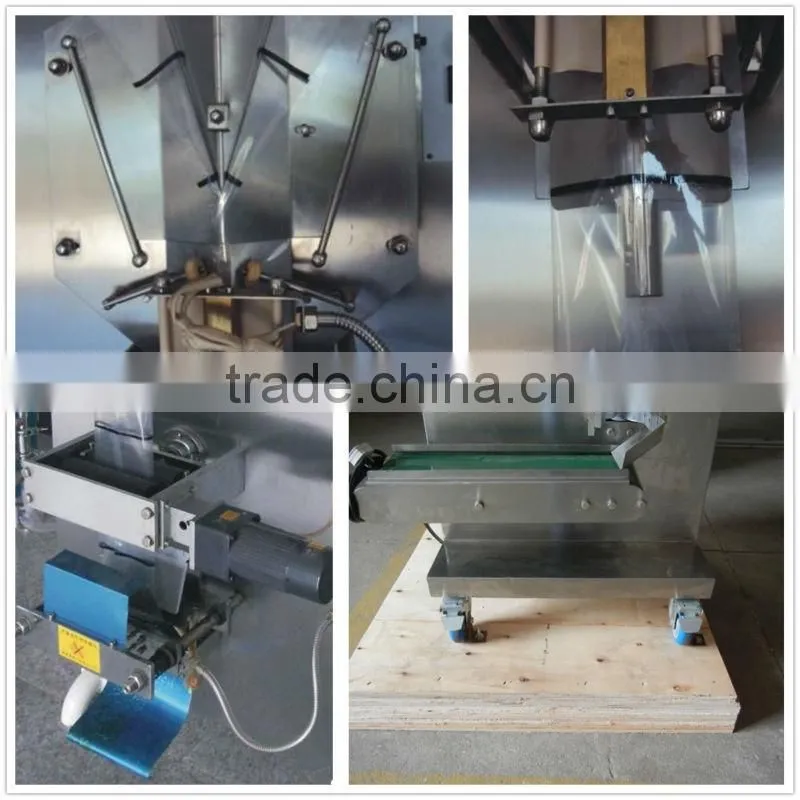

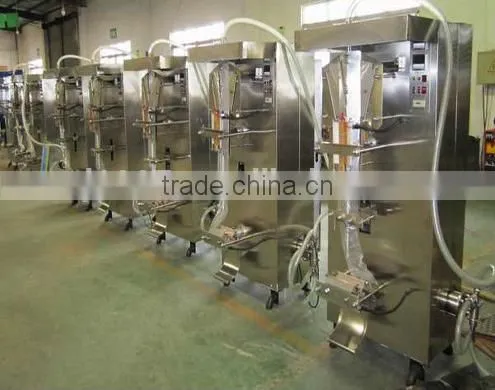

Machine
Kindly reminder
Please tell us the following information when you send us an inquiry. Base on your message, we will suggest the optimum machine or options to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Filling material
4. Bag shape
5. Bag material
Our Services
1.Pre-sale services:
Design customised project for clients.
Design and manufacture products according to clients special requirement.
Train technical personnel for clients.
2.Services during the sale:
Pre-check and accept products ahead of delivery.
Help clients to draw solving plans.
3.After-sale services:
Assist clients to prepare for the construction scheme.
Install and debug equipment.
Train the first-lin operators.
Examine equipment.
Take initiative to eliminate the troubles immediately.
Provide technical exchanging.

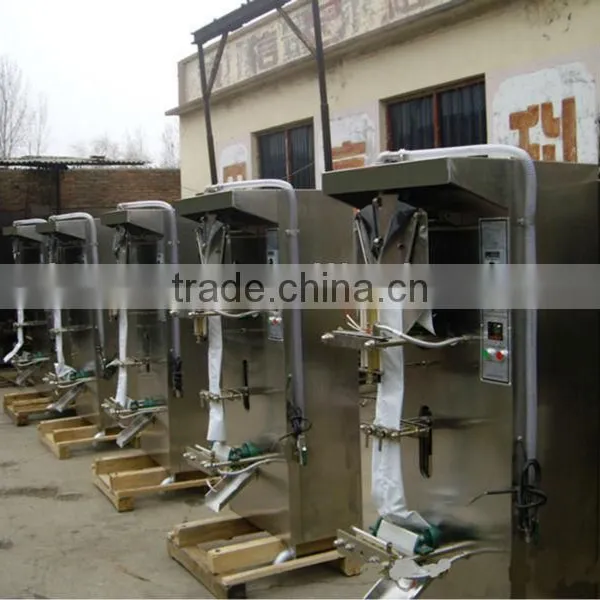

Packing
