Dalian Jialin Machine Manufacture Co., Ltd. is a professional manufacturer specialized in developing, designing, producing and installing auto conveyors (standard or nonstandard), packing machines and medical apparatus, etc.
Located in Dalian City, our company covers an area of 5,300 square meters with a building area of 5,000 square meters. Total assets over USD2,500,000. There are 120 employees, including 27 professional technicians.
Being ISO9001:2000 certified, we have import and export right, and also have manufacture license of medical apparatus. We keep supplying machines worldwide reguarly and had won sound reputation among our customers. We try our best to supply the optimal conveyors for you all the time!

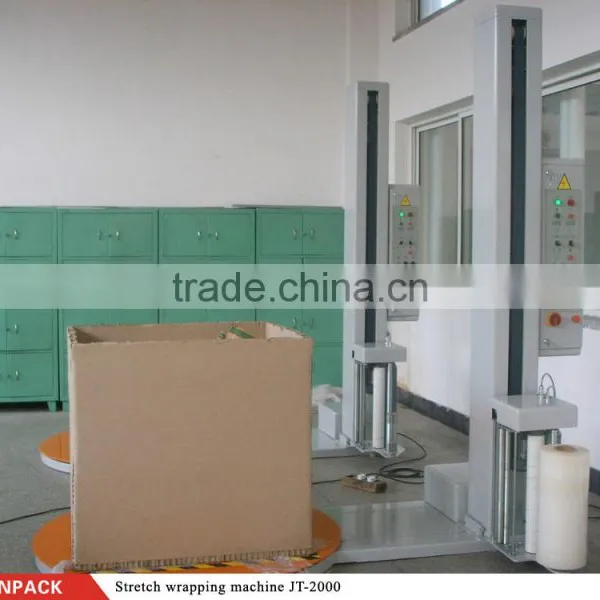

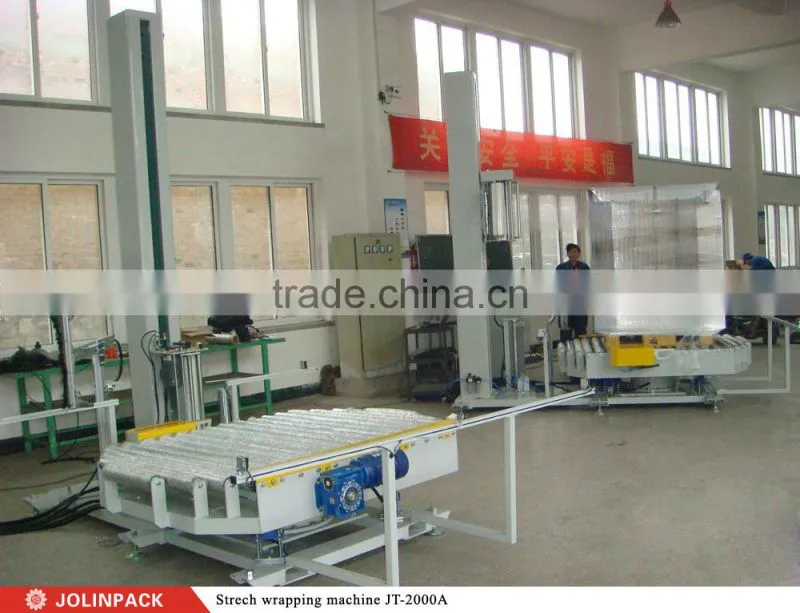

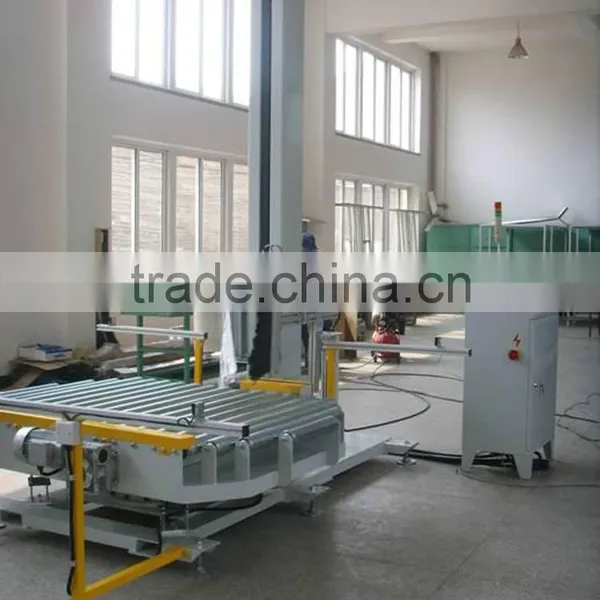

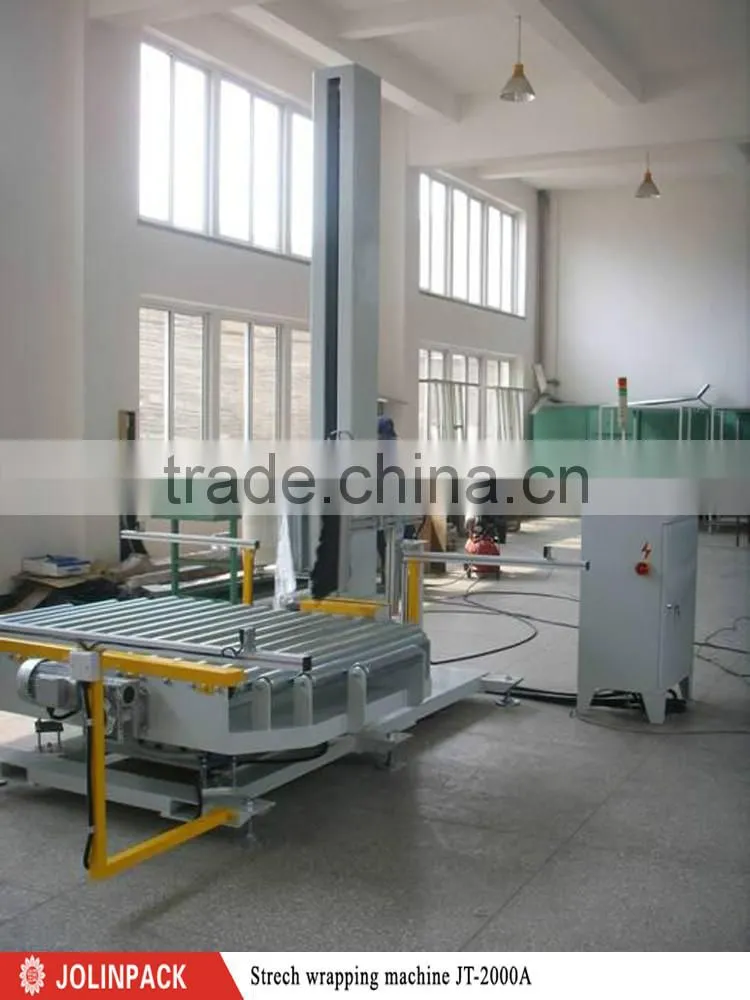

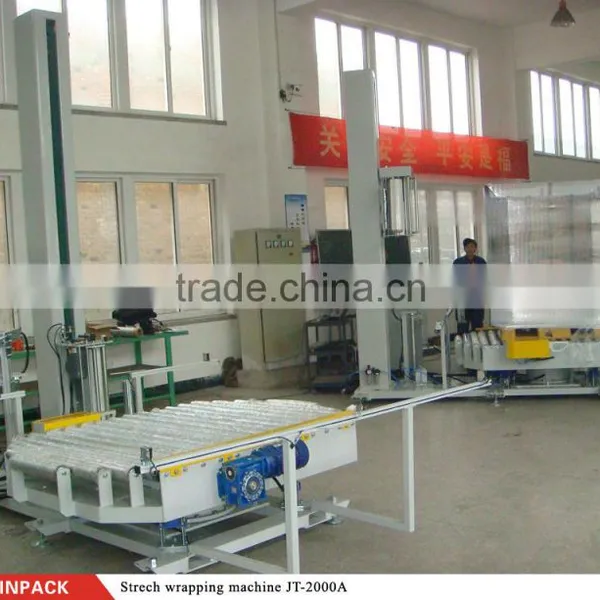

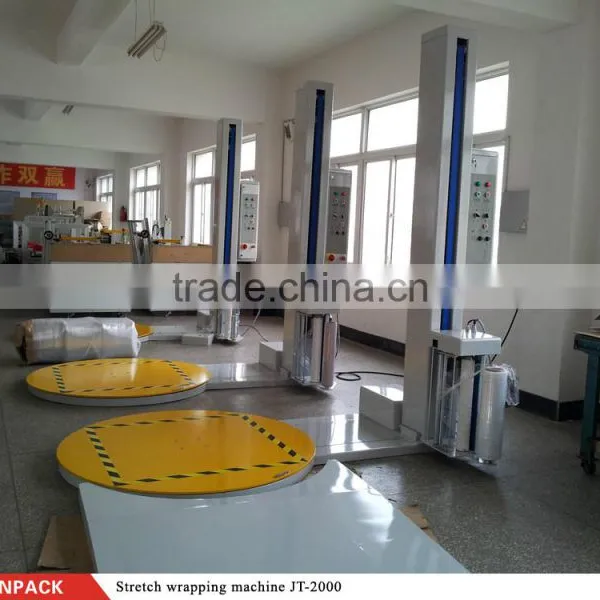

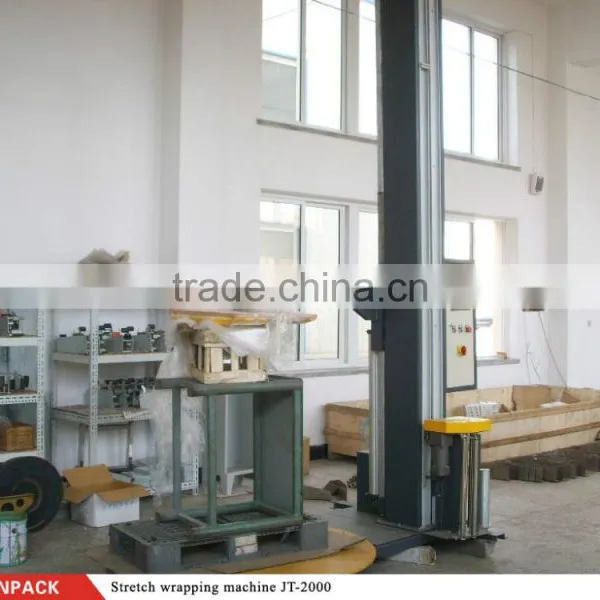

strech wrapping machine JT-2000A
Quick Details:
Type: |
strech wrapping machine |
Condition: |
New |
Application: |
Beverage, Chemical, Commodity, Food, Machinery & Medical |
||||||
Packaging Type: |
Cartons, Case |
Packaging Material: |
Stretch film
|
Automatic Grade: |
Automatic |
||||||
Driven Type: |
Electric |
Voltage: |
380V |
Power: |
taiwan brand |
||||||
Place of Origin: |
Liaoning China (Mainland) |
Brand Name: |
JOLINPACK |
Model Number: |
JT-2000 |
||||||
Dimension(L*W*H): |
L3200mm W2000mm H3450mm |
Weight: |
500KG |
Certification: |
CE |
||||||
After-sales Service Provided: |
Engineers available to service |
|
|
|
|
||||||
1. Description:
stretch wrapping machine JT-2000A applied to the pallet and pallet packaging, the winding method of various regular or irregular goods packaging, using tensile membrane retraction and self-adhesive will goods and tray bound into a whole, play a fixed role, because goods does not occur scattered packet and collapse phenomenon, of goods but also to dust-proof, moisture-proof, anti damage effect. Especially suitable for a large number of fast transportation or storage, packing cartons, bottles or bulky goods. At the same time reduce the labor intensity, improve the work efficiency, is the ideal equipment for modern enterprise product packaging.
The bottom of the supporting roller conveyor makes the whole production process can be automatically connected to the use of the production line.
2. Equipment data sheet
Machine Model |
JT-2000A |
||
max. package height |
2100mm(including pallet height) |
||
Table height |
600mm |
||
turntable load capacity |
2000kg |
||
turntable speed |
0~13 r/min(adjustable) |
||
turntable diameter |
Diameter 2000mm |
||
air supply |
5-6 kg/cm² |
||
film size |
ID:76,OD:max 250mm |
||
turntable |
1HP |
||
machine weight |
950kgs(contain wooden box) |
||
3. Competitive Advantage:
Automatic unmanned operation.
Manual / automatic mode selection.
Feeding, film, film, film cutting, winding, discharging, storage using mechanical automation.
PLC microcomputer control, HMI touch screen operation.
Frequency conversion speed control, multi section speed, slow start, slow stop function.
With overload, over current protection functions.
Fault, broken film, missing film, the object is over length automatic stop alarm.
Independent control system, simple operation, easy maintenance.
Sturdy airframe design, reasonable mechanical and electrical integration.
With the stacking machine, cover film machine.
strech wrapping machine JT-2000A
Quick Details:
Type: |
strech wrapping machine |
Condition: |
New |
Application: |
Beverage, Chemical, Commodity, Food, Machinery & Medical |
||||||
Packaging Type: |
Cartons, Case |
Packaging Material: |
Stretch film
|
Automatic Grade: |
Automatic |
||||||
Driven Type: |
Electric |
Voltage: |
380V |
Power: |
taiwan brand |
||||||
Place of Origin: |
Liaoning China (Mainland) |
Brand Name: |
JOLINPACK |
Model Number: |
JT-2000 |
||||||
Dimension(L*W*H): |
L3200mm W2000mm H3450mm |
Weight: |
500KG |
Certification: |
CE |
||||||
After-sales Service Provided: |
Engineers available to service |
|
|
|
|
||||||
1. Description:
stretch wrapping machine JT-2000A applied to the pallet and pallet packaging, the winding method of various regular or irregular goods packaging, using tensile membrane retraction and self-adhesive will goods and tray bound into a whole, play a fixed role, because goods does not occur scattered packet and collapse phenomenon, of goods but also to dust-proof, moisture-proof, anti damage effect. Especially suitable for a large number of fast transportation or storage, packing cartons, bottles or bulky goods. At the same time reduce the labor intensity, improve the work efficiency, is the ideal equipment for modern enterprise product packaging.
The bottom of the supporting roller conveyor makes the whole production process can be automatically connected to the use of the production line.
2. Equipment data sheet
Machine Model |
JT-2000A |
||
max. package height |
2100mm(including pallet height) |
||
Table height |
600mm |
||
turntable load capacity |
2000kg |
||
turntable speed |
0~13 r/min(adjustable) |
||
turntable diameter |
Diameter 2000mm |
||
air supply |
5-6 kg/cm² |
||
film size |
ID:76,OD:max 250mm |
||
turntable |
1HP |
||
machine weight |
950kgs(contain wooden box) |
||
3. Competitive Advantage:
Automatic unmanned operation.
Manual / automatic mode selection.
Feeding, film, film, film cutting, winding, discharging, storage using mechanical automation.
PLC microcomputer control, HMI touch screen operation.
Frequency conversion speed control, multi section speed, slow start, slow stop function.
With overload, over current protection functions.
Fault, broken film, missing film, the object is over length automatic stop alarm.
Independent control system, simple operation, easy maintenance.
Sturdy airframe design, reasonable mechanical and electrical integration.
With the stacking machine, cover film machine.
