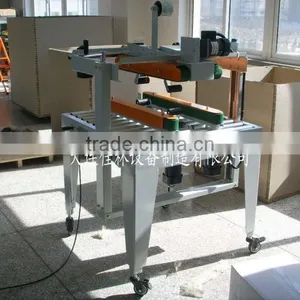

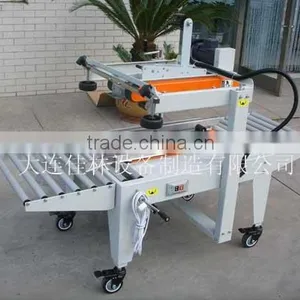

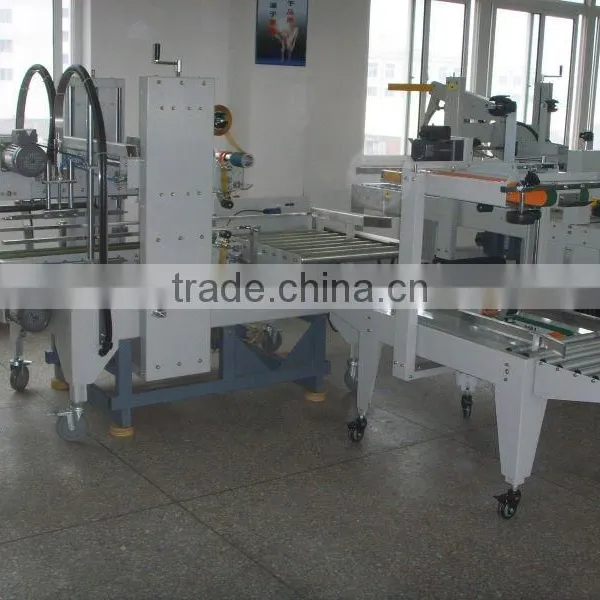

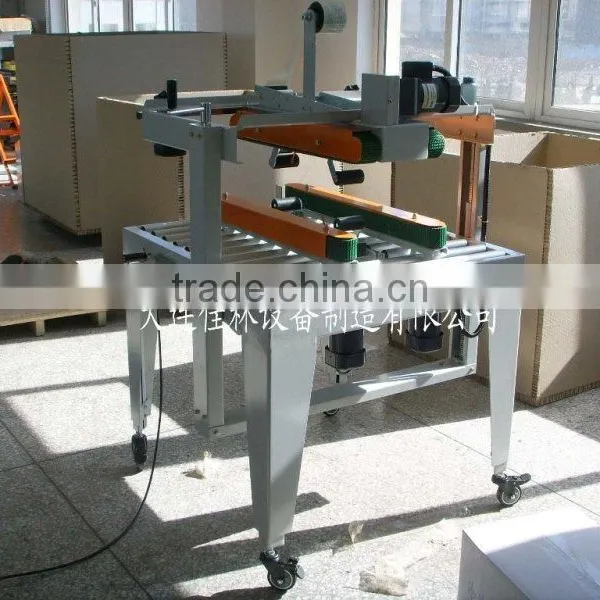

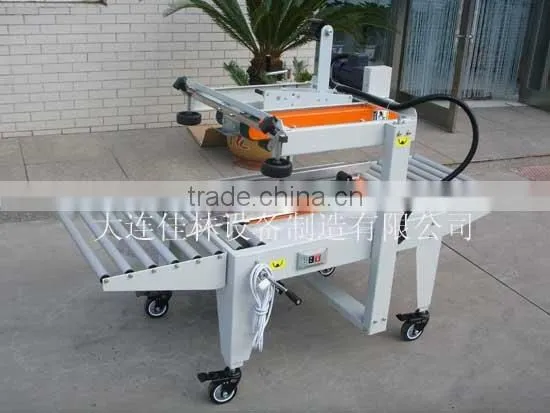

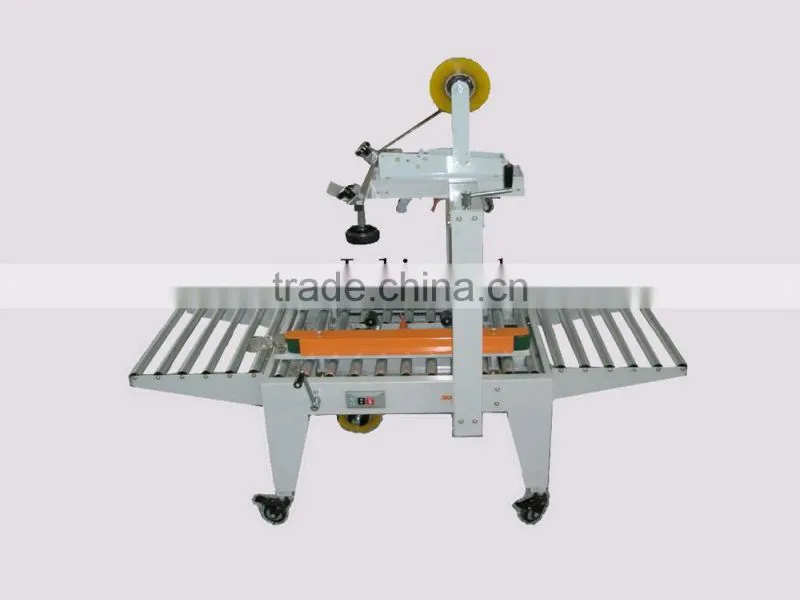

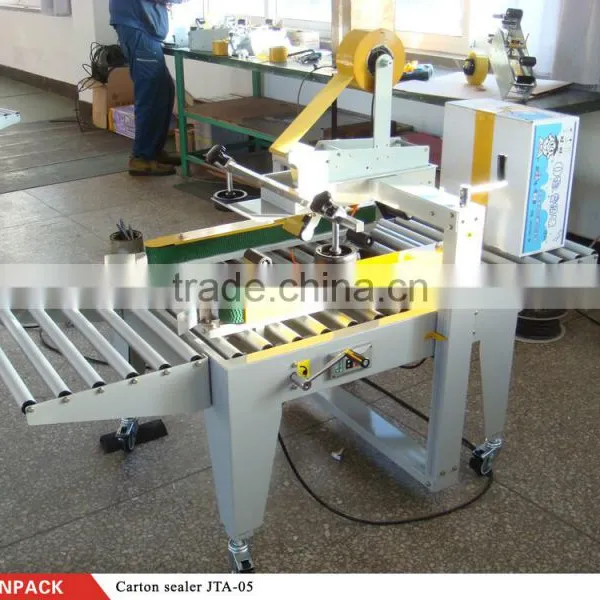

Help CenterJTA-05 Carton Sealer
Related Products
-
Water Production LineUS$ 100,000 - 100,000MOQ: 1 Set -
Sugar Packing MachineUS$ 100,000 - 100,000MOQ: 1 Set
-
Beer Bottle Packing LineUS$ 100,000 - 100,000MOQ: 1 Set
-
Toothpaste Capsule Packing MachineUS$ 100,000 - 100,000MOQ: 1 Set
-
Glass Bottle Liquid Packaging LineUS$ 100,000 - 100,000MOQ: 1 Set
Dalian Jialin Machine Manufacture Co., Ltd. is a professional manufacturer specialized in developing, designing, producing and installing auto conveyors (standard or nonstandard), packing machines and medical apparatus, etc.
Located in Dalian City, our company covers an area of 5,300 square meters with a building area of 5,000 square meters. Total assets over USD2,500,000. There are 120 employees, including 27 professional technicians.
Being ISO9001:2000 certified, we have import and export right, and also have manufacture license of medical apparatus. We keep supplying machines worldwide reguarly and had won sound reputation among our customers. We try our best to supply the optimal conveyors for you all the time!
Description:
Carton Sealers can be applied in cases with different sizes and different sealing manners, such as top and bottom sealing, side sealing, automatic flap folding etc..
a.It mainly suits for sealing the carton. It can be singly used and combined with packaging line.
b.It is widely used in the field of food, medicament, and chemistry etc.
c.It seals both top and bottom of the carton with adhesive tape at one time.
d.The JTA-05 is simple to operate and adjust.
e.Case size changes are made without tools by the operator in less than one minute with easy to use hand wheel settings
2. Equipment data sheet
Machine Model |
JTA-05 |
Carton size |
(L)150mm~infinity(w)160~500(H)100~500mm |
Table height |
Min.580,max.780mm |
Capacity |
700~1200ctns/h |
Machine size |
L770mm(W)735mm(H)1,200-1600mm |
Machine surface |
Plastic spraying processing |
Power |
Taiwan brand 110/220V,single phase,50/60Hz or specified by clients |
Tape width |
48,60,75mm(choose one type) |
Machine net weight |
Approx.95kg |
Packing material |
Corrugated paper |
3. Competitive Advantage:
3.1 Excellent configuration design;
3.2 High performance of automation;
3.3 Short time for change-over;
3.4 Easy operation;
3.5 Low production cost;
3.6 High efficiency.
related products:
semi auto carton sealer JTB-05
Semi auto flaps folding and side belt driven carton sealer JTC-05
Full auto side belts driven carton sealer JTE-05
Semi auto top & bottom belts driven carton sides sealer JTS-05
Full auto carton flap folding sealer JTI-09
