Automatic Packing Line

Name: Automatic Packing Line
Brand: Jolinpack
SKU: 137403797
Availability: InStock

US$ 1 - 99,999 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Chemical

Packaging Type:

Bottles

Dalian Jialin Machine Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

DALIAN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Chemical

Packaging Type Bottles

Packaging Material Wood

Automatic Grade Automatic

Driven Type Electric

Place of Origin Liaoning, China

Brand Name Jolinpack

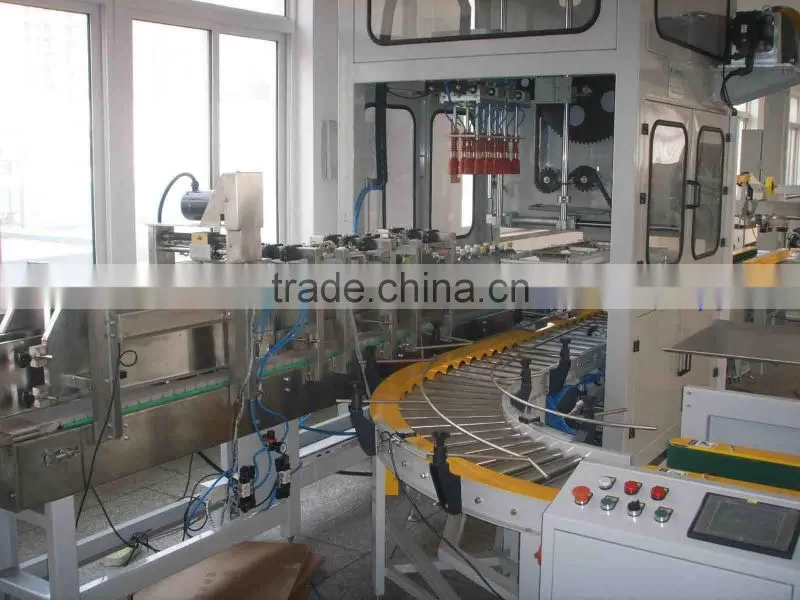

Automatic packing line

Standard Specification
Type	General
Carton size	(L)200-450(W)150-400(H)100-350mm
Table height	min. 650 mm
Working speed	600-720ctns/hour
Machine size	(L) 2000mm, (W) 1900mm, (H) 1200mm
Power	220/380V, single phase, 50/60Hz
Tape width	48mm, 60mm, 75mm (choose one)
Pneumatic	5-6kg/cm²150 L/min
Machine net weight	approx. 350kgs
Motor	Taiwan Brand, CE certified.
Pneumatic element	Taiwan AirTAC
PLC	Japan Mitsubishi
Contactor and switch	France Schneider
Photo sensor	Japan Omron
Features: 1. Perfect working on forming and sealing for soft cartons; 2. Vertical storage is adopted to for storing carton blanks, for which carton blanks can be added at any time without stopping the machine. 3. Auto process of grabbing, forming and bottom sealing; 4. Adjustment for cartons only needs 1-1.5 min , is the fastest inland for now; 5.The erector is man-machine interface control (Taiwan brand 5.7 inch color touch screen), auto updating, moving process and alarming. 6.Touch screen could help to find the fault and solve problem at the first time.
