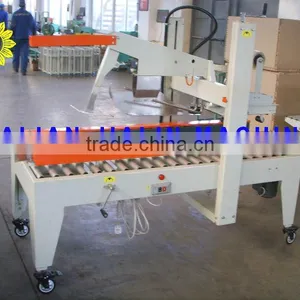

Semi-Automatic Flaps Folding And Side Belts Driven Sealer

           Semi-Automatic Flaps Folding And Side Belts Driven Sealer

(Auto Carton Flap Folding Sealer)

Standard Specification

Model

JTC-05

Carton Size

(L)200-600(W)150-500 (H)120-500mm

Table Height

Min 650 Max 800mm

Working Speed

600-1150 ctns/h

Machine Size

(L)1672(W)830(H)1180mm

Power

110/220V single phase,50/60Hz or specified by client

Pneumatic

5kg/cm²

Pneumatic component

Taiwan AIRTAC

Motor

Taiwan Brand, CE certified. Total power is 360 W,

Belt

imported from Europe

Touch sensor

Japan Omron

Switch

Taiwan Shern Dian, America’s UL certified.

Tape Width

48mm,60mm,75mm alternative use

Machine Net Weight

Approx.180kgs

Features:

 Continuous work 24 hours with trouble free per day. It helps to saving 275~400 USD electricity per year.

Adopts international newest technology designs. The parts, electrical and pneumatic components are imported from renowned companies to ensure the high quality of the machine.

The width and height are adjusted manually, the carton covers are folded automatically and the top and bottom are sealed quickly with the advantages of beautiful and smooth.

Easily operated and be used independently or as a part of the automatic packing line.

Widely used in electronics, electrical appliances, toys, food, chemical and other industries.

Adjustment for cartons only needs one minute. Key position adopts forming mould and laser cutting.

    Screw rod is processed by numerically control lathe.
