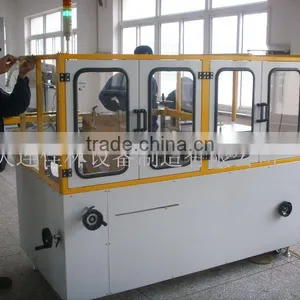

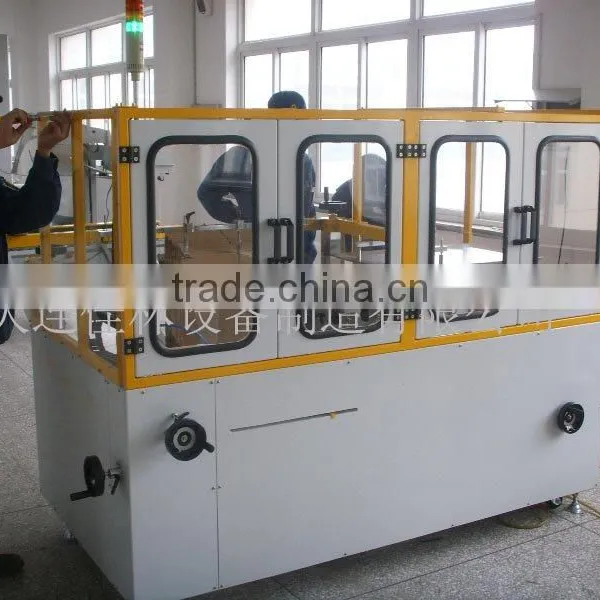

packing machine (carton erector)
- 80 Set / Sets per Month
- DALIAN
- T/T L/C D/P D/A Credit Card PayPal
- Inside and outside bag packaging line Healthy teatriangle packaging linkage line
- Pharmaceuticals industrypackaging assembly line Packaging production line
- China teatriangle packaging linkage line Green teainternal and external package linkage line
- Packing and palletizing linkage line Beverage industrybox and palletizing production line
- Pharmaceuticals industrypackaging linkage line Packaging production line
- Box code stack production line Beverage industrybox and palletizing assembly line
Product Details
Application: | Food | Packaging Material: | Plastic | Automatic Grade: | Automatic |
Driven Type: | Pneumatic | Place of Origin: | Liaoning, China | Brand Name: | Jolinpack |
Model Number: | JTK-09 |
Product Description
Specifications
packing machine (carton erector)1.JTK-09 suitable to cases,cartons, boxes
npact design and easy operation
packing machine (carton erector)
JTK-09 suitable to all kinds of cases like cartons and boxes,
food packing cases, beverage pack,juice,etc
Parameters:
Specifications | |
Case Packing Machine | |
Model | JTK-09 |
Carton size | L200-450W150-400H100-350mm |
Table height | min. 650 mm |
Working speed | 600-720ctns/hour |
Machine size | (L) 2000mm, (W) 1900mm, (H) 1200mm |
Power | 220/380V, single phase, 50/60Hz |
Tape width | 48mm, 60mm, 75mm (choose one) |
Pneumatic | 5-6kg/cm2 150 L/min |
Machine net weight | approx. 350kgs |
Motor | Taiwan Brand, CE certified. |
Pneumatic element | Taiwan AirTAC |
PLC | Japan Mitsubishi |
Contactor and switch | France Schneider |
Photosensor | Japan Omron |
Features: Perfect working on forming and sealing for soft cartons; Vertical storage is adoped to for storing carton blanks, for which carton blanks can be added at any time without stopping the machine. Auto process of grabing,forming and bottom sealing; Adjustment for cartons only needs 1-1.5 min , is the fastest inland for now; The erector is man-machine interface control (Taiwan brand 5.7 inch colour touch screen),auto updating moving process and alarming. Touch screen could help to find the fault and solve problem at the first time. |
