stainless steel drink bottle production line
Overview:
The bottle enters into the rinsing part of three-in-one machine through belt conveyor. The gripper installed on the rotary disk catches bottle and turns it over 180 degrees and makes the bottleneck face ground. In the special rinsing area, the nozzle on the gripper sprays juice to rinse bottle inwall. After rinsing and draining, the bottle turns over 180 degrees along the guide rail and make the bottleneck faces sky. Then rinsed bottle is transferred to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet
Features:
1.The full automatic filling machine apply the PLC and photoelectric control system, Air Cylinder is FESTO(Germany),PLC system is OMRON(JAPAN)
2. The machine is made of 316L stainless steel. There is no dead angle, no concave-convex face
3. The bottle washing system brings in highly pressure spray washing nozzles
4. The specially designed bottle neck clamps can avoid polluting to bottles mouthes.
5. The machine applys advanced high speed filling valve with high precision and no leakage.
6. You can changes filling bottles sizes to meet your filling demands by change the swivel wheel.
7. Capping heads adopt magnetic torquer which guarantee no damages to the caps.
8. Overload protection system, ensure the safety of operator & equipments.
We have shot many videos about this product processing when the clients checking and acceptance the machine,which can let you know better about our machine and our company, if you want more detailed information, pls don't hesitate to contact us. We'll give you reply as soon as we got your inquiry

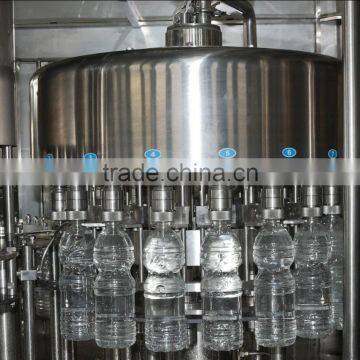

The picture of machine
The picture of samples
After-sales service
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract.
Installation and Debugging
The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side(round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
Shanghai Shouda Packaging Machinery & Material Co., Ltd. is a professional manufacturer of automatic packaging machineries & automatic filling and packing production line for liquid, gel, aerosol product.
Shouda has passed CE certificate Standard of EU and meet the requirement of GMP. The company has gained wide reputation with the immediate and perfect round-the-clock service provided by senior engineers. Please bear in mind that Shouda will make you moved at the same time.
Photos of factory
Certificate
Our business involves various markets all over the world, in many fields with our excellent product performance.
1.Q:Are you a manufacturer or a trading company?
A:We are the manufacturer with over 15 years experience.
2.Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
3.Q:How to order?
A:You can send me an inquiry,then we could confirm the details through emails or telephone.
4.Q:How much is the transportation freight?
A:The freight depends on the weight and size,also the destination port.
NOTE:When you send inquiry,please also included the capacity and bottles shape you need to work on the machine, it is easy and accurately for us to recommend a right machine! If any special,our manufacture also can design the machines according your requirement.
