Main Uses:
1.Phamaceutical industry: tablet, capsule, low sugar or no sugar granule of Chinese medcine.
2.Foodstuff: cocoa, coffee, milk powder, juice of granulate, flavoring and so on
3.Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on
4.Pharmaceutical industry: tablet
5.Coating: grain,pill layer,slow-releasing,film inteatines dissolving coating etc.
Working Principal

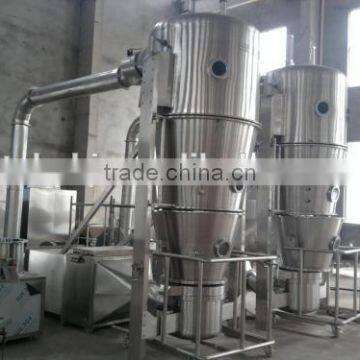

The powder grannle in the container(fluidization) appear in the state of fluidization.It is preheated and mixed with clean and heated air.At the same makes the solution of adhesive solvent is fogged and sprayed into the contaier.It makes the some particles become granulating that contains adhesive.Being of unceasing dry through hot qir,the moisture in the granulation is evaporated and the adhesive is solidification.The process is carries out continuously.Finally it forms ideal,uniform and Porous granules.
Feature:
1.Because of powder granulation, the fluidity is improved and the dust is reduced
2.Because of powder granulation, its solving property is improved
3.The mixing, granulation and drying can be completed in one step indside the machine

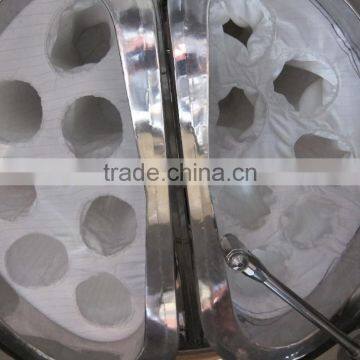

4.The operation of equipment is sage beacuse the anti static filtering cloth is adapted
5.The operating personnel can not be injured if explosion take place because there is releasing hole
6.The equipment has no dead corner. Therefore, the loading and unloading are quick, light and clean. It can meet the requirements of GMP
Technical Parameters
Model |
3 |
5 |
15 |
30 |
45 |
60 |
90 |
120 |
200 |
300 |
500 |
|
Volume(L) |
12 |
22 |
45 |
100 |
155 |
220 |
300 |
420 |
660 |
1000 |
1500 |
|
Steam amount (KG/H) |
0.5 -1 |
1 -3 |
2 -5 |
6 -15 |
7 -18 |
10 -23 |
15 -50 |
20 -60 |
40 -80 |
70 -150 |
100 -200 |
|
Processing Amount (KG/batch) |
1.5 -4.5 |
4 -6 |
10 -20 |
15 -45 |
25 -65 |
40 -80 |
60 -120 |
80 -160 |
100 -300 |
150 -450 |
300 -700 |
|
steam |
Pressure(MPa) |
00.4-0.6 |
||||||||||
Consumption(m3/min) |
12 |
223 |
42 |
70 |
99 |
141 |
169 |
211 |
282 |
366 |
451 |
|
Compressed air |
Pressure(MPa) |
0.6 |
||||||||||
Consumption(m3/min) |
0.3 |
0.3 |
0.3 |
0.4 |
0.4 |
0.6 |
0.6 |
0.9 |
0.9 |
1.3 |
1.5 |
|
Temperature(°C) |
0-120 |
|||||||||||
Wind motor power(KW) |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
|
Noise(Decibel) |
<75 (wind motor separated) |
|||||||||||
