Food Vacuum Dryer

Food Vacuum Dryer thumbnail-1
Food Vacuum Dryer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
changgan
Contact Supplier Request Quote Chat Now
Changzhou No. 2 Drying Equipment Factory Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name changgan
Model Number YZG/FZG
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

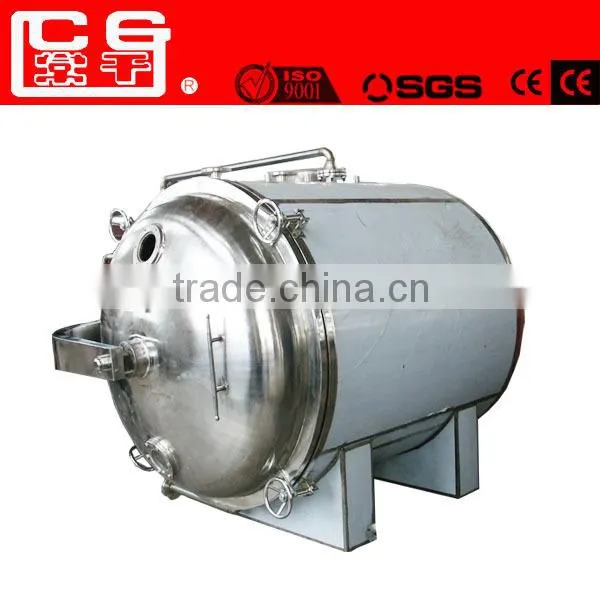

YZG/FZG Series Vacuum Drier



Application
Vacuum drier is suitable for drying heat sensitive raw materials that can decompose and polymerize and metamorphose at high temperature. It is wide used in pharmaceutical, chemical, foodstuff and electronic industries.



Principle of work
It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying. If use vacuum to take air and humidity out, the dry speed will be faster.






Note: if use condensator, the solvent in raw material can be recovered. If use SK series water ring vacuum pump or ZSWJ series hydraulic inject vacuum pump sets, condensator can not be used and the investment could be saved.









Features
Under the condition of vacuum, the boiling point of raw material will decrease and make the pushing force become greater. Therefore for a certain amount of heat radiation, the conducting area of evaporator can be saved;
The heat source for operation of evaporation may be Iow pressure steam or surplus heat steam;
The heat loss of evaporator is less;
Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixing. It is in conformity with the requirement of GMP;
It belongs to static drier. So the shape of raw material to be dried can not be destroyed.









Technical parameters

Namespecification YZG-600 Φ×L YZG-800 Φ×L YZG-1000 Φ×L YZG-1400 Φ×L FZG-15 L×W×H
inside size of chamber (mm) 600×976 800×1274 1000×1527 1400×2054 1500×1400×1200
size of chamber (mm) 1153×810×1020 1700×1040×1335 1693×1190×1500 2386×1657×1920 1513×1924×2060
layers of baking shelf 4 4 6 8 8
layer of baking shelf (mm) 81 82 102 102 122
size of baking shelf (mm) 310×600×45 460×600×45 460×640×45 460×640×45 460×640×45
number of baking disk 4 8 12 32 32
permitted pressure inside the pipe of baking shell(Mpa) ≤0.784(8kgf/cm2) ≤0.784 ≤0.784 ≤0.784 ≤0.784
temperature inside chamber() ≤150 ≤150 ≤150 ≤150 ≤150
vacuum in idle inside chamber ≤30
when vacuum is 30 torr and the heating temperature is 1100C,vaporized rate of water(kg/m2.h) 7.2
if use condensator,type and power of vacuum pump(kw)   2X-15A 2kW 2X-30A 3kW W3 5.5kW W3 7.5kW 2X-70A 7.5kW
if not use condensator,type and power of vacuum pump(kw) SK-0.8 2.2kW SK-3 5.5kW SK-3 5.5kW SK-3 7.5kW SK-3 7.5kW
weight of drying chamber(kg) 250 600 800 1000 2100







Company introduction:

Changzhou No.2 Drying Equipment Factory Co.,Ltd is an old drying enterprise which has 23 years drying history. We have got several patents in different dryers. We have much experience in different drying area. Now it holds more than 100 sets of equipment. The company has more than 100 staff and workers, including 15 engineers, with annual value of production more than thirty-eight million RMB.We attach importance to advanced technology, and have cooperated positively with universities and colleges to develop new products by using new technics. We have continuously developed several key and high-tech products with advanced technology both from domestic and abroad.During the past ten continuous years, the company has been appraised as enterprise with high reputation on contract and credit.Bases on the principle of factualism, innovation and mutual benefit, the enterprise is looking forward to creating resplendence with personages from all circles together.

food vacuum dryerfood vacuum dryerfood vacuum dryerfood vacuum dryer



Certificate and Letters Patent:

food vacuum dryerfood vacuum dryerfood vacuum dryerfood vacuum dryer



food vacuum dryerfood vacuum dryer

Service:

The Warranty Period of the dryer machine shall be 12 months from the date of completion of the installation and commissioning of the Contract.

We will provide some spare parts for free together with dryer before shipping,  paid service will be provided for the long term, and we can provide components at competitive price.
