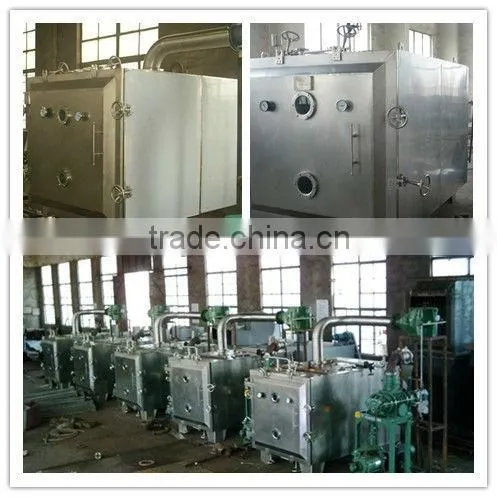

Help CenterFiber Vacuum Drying Machine
Related Products
fiber vacuum drying machine is widely used in pharmaceutical, chemical, foodstuff and electronic industries.
Principle of work
It is well known that drying machine is to put raw material into the environment of vacuum for heating and drying. If use vacuum pump to draw air and humidity out, the dry speed will be faster.
Note: if use condenser, the solvent in raw material can be recovered. If use SK series water ring vacuum pump or ZSWJ series hydraulic jet vacuum pump sets, condenser can not be used and the cost of investment could be saved
Features
Under the condition of vacuum, the boiling point of raw material will decrease and make the pushing force become greater. Therefore for a certain amount of heat radiation, the conducting area of evaporator can be saved;
The heat source for operation of evaporation may be Iow pressure steam or surplus heat steam;
The heat loss of evaporator is little;
Before drying, the treatment of disinfection can be carried out. During the period of drying, there is no impurity material mixed in. It is in conformity with the requirement of GMP;
It belongs to static drier. So the shape of raw material to be dried will not be destroyed.
Technical parameters
| Namespecification | YZG-600 Φ×L | YZG-800 Φ×L | YZG-1000 Φ×L | YZG-1400 Φ×L | FZG-15 L×W×H |
| inside size of chamber (mm) | 600×976 | 800×1274 | 1000×1527 | 1400×2054 | 1500×1400×1200 |
| size of chamber (mm) | 1153×810×1020 | 1700×1040×1335 | 1693×1190×1500 | 2386×1657×1920 | 1513×1924×2060 |
| layers of baking shelf | 4 | 4 | 6 | 8 | 8 |
| layer of baking shelf (mm) | 81 | 82 | 102 | 102 | 122 |
| size of baking shelf (mm) | 310×600×45 | 460×600×45 | 460×640×45 | 460×640×45 | 460×640×45 |
| number of baking disk | 4 | 8 | 12 | 32 | 32 |
| permitted pressure inside the pipe of baking shell(Mpa) | ≤0.784(8kgf/cm2) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
| temperature inside chamber() | ≤150 | ≤150 | ≤150 | ≤150 | ≤150 |
| vacuum in idle inside chamber | ≤30 | ||||
| when vacuum is 30 torr and the heating temperature is 1100C,vaporized rate of water(kg/m2.h) | 7.2 | ||||
| if use condensator,type and power of vacuum pump(kw) | 2X-15A 2kW | 2X-30A 3kW | W3 5.5kW | W3 7.5kW | 2X-70A 7.5kW |
| if not use condensator,type and power of vacuum pump(kw) | SK-0.8 2.2kW | SK-3 5.5kW | SK-3 5.5kW | SK-3 7.5kW | SK-3 7.5kW |
| weight of drying chamber(kg) | 250 | 600 | 800 | 1000 | 2100 |
