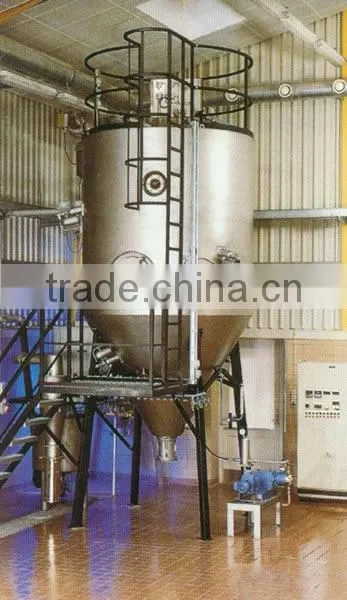

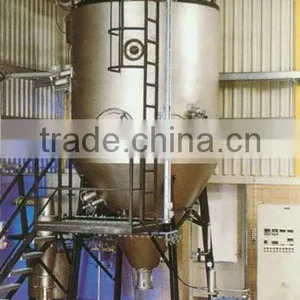

Help CenterCentrifugal Spray Dryer
Related Products
Features:
spray drier has high drying speed, usually,it just needs 5-15 seconds. It has feature of momentary dry.
Because raw material can be dried in very time,therefore, it is particularly suiable for drying heat sensitive raw materials. It can keep color, flavor in good quality. the purity quotient of finished products is high and quality is really good. The operation is simple and production procee is simplified. Its regulation and control is very convenient. It is easy to realize continuous production.
The distribution, fluidity and solubility of product are good.
Principle of work:
Air is turned into hot air through air filter and heater and enters into hot air distributor at the top of drier and then enters into drier uniformly with the state of helix. At the same time liquid of raw material is sent to centrifugal atomizer at the top of dry chamber by pump through filter, liquid of raw material jet out and tunr into small drops. Hot air and liquid of raw material contact fully. The moisture vaporize rapidly and raw material is dried into finished product of powder state in a short time. The finished product is discharged through cyclone seperator from the bottom of drier. The exhausted air is discharged through fan.
