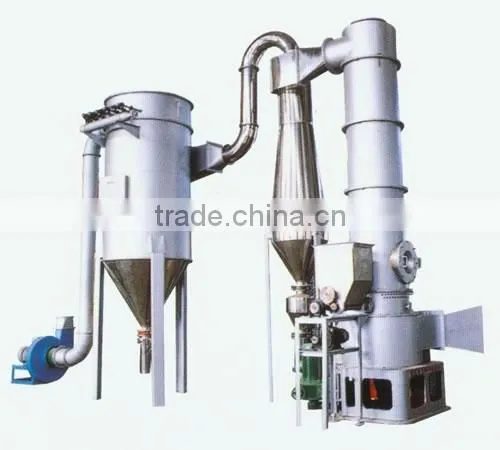

flash dryer
- 1 Set / Sets per Month
- shanghai
- T/T
Product Details
Type: | Rotary Drying Equipment | Place of Origin: | Jiangsu, China | Brand Name: | Changgan |
Model Number: | XSG | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Flash Drier's Features
There are many kinds feeding equipment for choosing,and feeding is continuous and static.
At the bottom of drier, where is high temperature area,heat sensitivity raw material can not contact with heat surface directly,therefore it solves the carbonized and color-changing problems of heat sensitivity raw material
There are airproof air pressure equipment and shaft-cooling equipment,so can prolong the life of machine.
there is special equipment for dispersing wind,and raising the amount of hot air to be processed.
There are rotational flow pieces inside the drying chamber. It is used to control the moisture and granle of raw material to needed level.
The specific gravity of raw materials can be effectively raised compared with other drying methods.
Becausw gas speed at circle inside the drying chamber is high and the staying time of raw material is short,high efficiency and quick speed can be realized. It is possible for small equipment to carry out large-scale production
Principle of work
Hot air enters into stirring and crushing and drying chamber from the bottom of drier with suitable atomizing speed. It exerts strong shearing, blowing, floating and rotating effect to raw material. There fore raw material is granulated through centrifuge, shearing, impacting and friction effect. It strengthens the process of gear exchange. At the bottom of drier,the lage and damp granule is crushed under the action of stirer and the granule that is small in partical and con tain less moisture will lift acoompainied with revolving air stream. During the periaod of lift,it is dried further. Because gas and solid two phase flow in rotating and the intertia of solid phase is more than that of gas and the relative velocity between solid and gas phase is large,so it strengthens the process of heat exchange.Therefore the machine has strong drying capacity.
Typical customers:
Gansu tianhong chemical co., ltd. (XSG-14 2 sets)
Jiangyin chengxing phosphate chemical group (XSG-10 1 set)
Zhejiang fuyang wanzh0u chemical co., ltd. (XSG-6 1 set).
