Rotary Drum Dryer
- 30 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Type: | Drum Drying Equipment | Place of Origin: | Jiangsu, China |
Brand Name: | Changgan | Model Number: | HZG | Certification: | ce |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

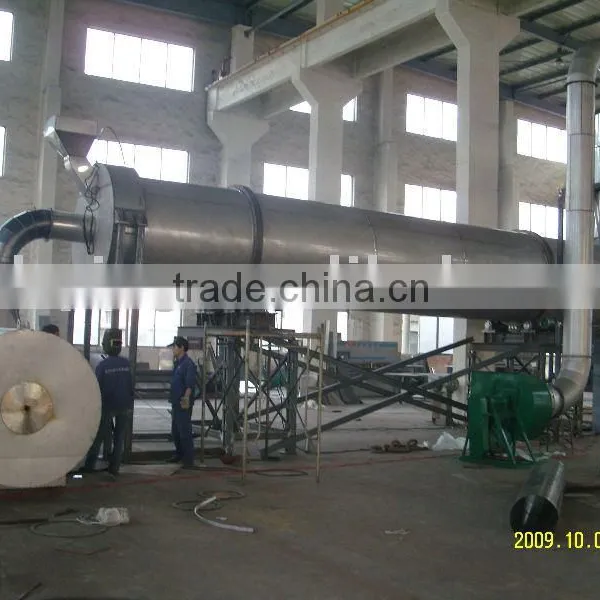

Rotary Drum Dryer is a cylinder,its main body is a litte bit slantwise,and the rotate speed can be adjusted within bounds.Wet raw materials are sent into cylinder, the materials are well-distributed and dispersed after be turned over by shovelling plate,then the materials contact with the hot air fully,the drying is accerlated.Shovelling plate can be selected to meet different materials.
This dryer is particularly suitable for drying big granules in chemicalindustry,minerals,metallurgy industry,and so on.It can also dry special powder and granule material,such as lightweight calcium carbonate,floridin,magnetic particle,graphite,and dregs of a decoction ,the drying temerature should be low, and the raw material should be dried continuously in large scale.
.
item(m) | priductive capacity(t/h) | revolution(r/min) | motor power(Kw) | install angle(.) | Temp.of final |
Φ1.0×5.0 | 0.5-1.2 | 0.6-6 | 4 | 3-5 | ≤1.5% |
Φ1.2×6-10 | 1.5-3 | 0.6-6 | 5.5 | 3-5 | ≤1.5% |
Φ1.5×12-18 | 3-5.5 | 0.6-6 | 15 | 3-5 | ≤1.5% |
Φ1.8×12-18 | 5-6.5 | 0.6-6 | 18.5 | 3-5 | ≤1.5% |
Φ2.2×12-22 | 7-12 | 0.6-6 | 22 | 3-5 | ≤1.5% |
Φ2.4×15-20 | 9-15 | 0.6-6 | 30 | 3-5 | ≤1.5% |
Φ3.0×25 | 16 | 0.6-6 | 55 | 3-5 | ≤1.5% |
model | heat direct and sequence | heat direct and retrograde | compound heating | |||
type of material | mineral | HP | ammonium sulphate | phosphorus fertilizer | coal | |
capacity kg/h | 1000 | -66 | 15000 | 20000 | 12000 | 5000 |
primary moisture % | 30 | 13 | 6 | 1.5 | 5 | 6.5 |
final moisture % | 15 | 0.3 | 1 | 0.1 | 0.1 | 0.1 |
average dim. mm | 6.5 | 0.05 | 4.7 | 0.5-0.7 | 0.5 | 5 |
thickness of material mm | 770 | 800 | 1890 | 1100 | 1500 | 750 |
capacity of hot air kg/h | 39000 | 5400 | 10750 | 9800 | 6500 | 16000 |
temp. of air in | 600 | 165 | 500 | 180 | 650 | 570 |
temp. of material out | 42 | 100 | 70 | 80 | 75 | |
heating style | gas | steam electric+heating | heavy oil | coal fuel furnace | heavy oil | heavy oil |
ratio of feed | 6.3 | 7 | 7.5 | 7.8 | 18 | |
rotation speed rpm | 4 | 4 | 3.5 | 3 | 4 | 2 |
angel . | 0.04 | 0.005 | 0.03 | 0.05 | 0.05 | 0.043 |
quatity of oar | 12 | 24 | 12 | 22 | 8 16 | 6 12 |
dim. of drier m | 2.0 | 1.5 | 2 | 2.3 | 2 0.84 | 24 0.95 |
length of drier m | 20 | 12 | 17 | 15 | 10 | 16 |
driving power kw | 22 | 7.5 | 15 | 11 | 11 | 15 |
Company introduction:
Changzhou No.2 Drying Equipment Factory Co.,Ltd is an old drying enterprise which has 23 years drying history. We have got several patents in different dryers. We have much experience in different drying area. Now it holds more than 100 sets of equipment. The company has more than 100 staff and workers, including 15 engineers, with annual value of production more than thirty-eight million RMB.We attach importance to advanced technology, and have cooperated positively with universities and colleges to develop new products by using new technics. We have continuously developed several key and high-tech products with advanced technology both from domestic and abroad.During the past ten continuous years, the company has been appraised as enterprise with high reputation on contract and credit.Bases on the principle of factualism, innovation and mutual benefit, the enterprise is looking forward to creating resplendence with personages from all circles together.
Certificate and Letters Patent:
Service:
The Warranty Period of the dryer machine shall be 12 months from the date of completion of the installation and commissioning of the Contract.
We will provide some spare parts for free together with dryer before shipping, paid service will be provided for the long term, and we can provide components at competitive price.
