Home > Products > rotary drum dryer > Rotary Drum Drier
Rotary Drum Drier
- shanghai
- T/T
You May Like
Product Details
| Type | Rotary Drying Equipment | Place of Origin | Jiangsu, China | |
| Brand Name | chang gan | Model Number | HZG | |
| Certification | ce | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

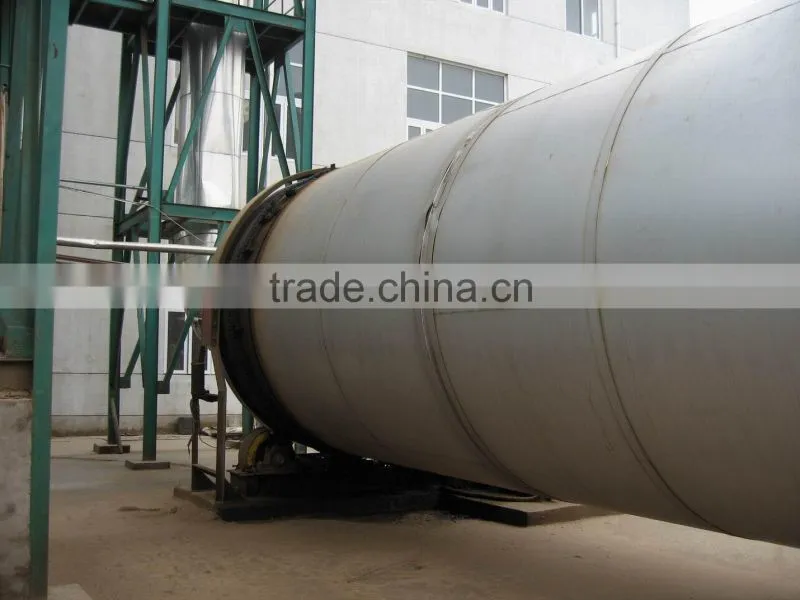

drier is a cylinder,its main body is a litte bit slantwise,and the rotate speed can be adjusted within bounds.Wet raw materials are sent into cylinder, the materials are well-distributed and dispersed after be turned over by shovelling plate,then the materials contact with the hot air fully,the drying is accerlated.Shovelling plate can be selected to meet different materials
This dryer is particularly suitable for drying big granules in chemicalindustry,minerals,metallurgy industry,and so on.It can also dry special powder and granule material,such as lightweight calcium carbonate,floridin,magnetic particle,graphite,and dregs of a decoction ,the drying temerature should be low, and the raw material should be dried continuously in large scale.
| item(m) | priductive capacity(t/h) | revolution(r/min) | motor power(Kw) | install angle(.) | Temp.of final |
| Φ1.0×5.0 | 0.5-1.2 | 0.6-6 | 4 | 3-5 | ≤1.5% |
| Φ1.2×6-10 | 1.5-3 | 0.6-6 | 5.5 | 3-5 | ≤1.5% |
| Φ1.5×12-18 | 3-5.5 | 0.6-6 | 15 | 3-5 | ≤1.5% |
| Φ1.8×12-18 | 5-6.5 | 0.6-6 | 18.5 | 3-5 | ≤1.5% |
| Φ2.2×12-22 | 7-12 | 0.6-6 | 22 | 3-5 | ≤1.5% |
| Φ2.4×15-20 | 9-15 | 0.6-6 | 30 | 3-5 | ≤1.5% |
| Φ3.0×25 | 16 | 0.6-6 | 55 | 3-5 | ≤1.5% |
| model | heat direct and sequence | heat direct and retrograde | compound heating | |||
| type of material | mineral | HP | ammonium sulphate | phosphorus fertilizer | coal | |
| capacity kg/h | 1000 | -66 | 15000 | 20000 | 12000 | 5000 |
| primary moisture % | 30 | 13 | 6 | 1.5 | 5 | 6.5 |
| final moisture % | 15 | 0.3 | 1 | 0.1 | 0.1 | 0.1 |
| average dim. mm | 6.5 | 0.05 | 4.7 | 0.5-0.7 | 0.5 | 5 |
| thickness of material mm | 770 | 800 | 1890 | 1100 | 1500 | 750 |
| capacity of hot air kg/h | 39000 | 5400 | 10750 | 9800 | 6500 | 16000 |
| temp. of air in | 600 | 165 | 500 | 180 | 650 | 570 |
| temp. of material out | 42 | 100 | 70 | 80 | 75 | |
| heating style | gas | steam electric+heating | heavy oil | coal fuel furnace | heavy oil | heavy oil |
| ratio of feed | 6.3 | 7 | 7.5 | 7.8 | 18 | |
| rotation speed rpm | 4 | 4 | 3.5 | 3 | 4 | 2 |
| angel . | 0.04 | 0.005 | 0.03 | 0.05 | 0.05 | 0.043 |
| quatity of oar | 12 | 24 | 12 | 22 | 8 16 | 6 12 |
| dim. of drier m | 2.0 | 1.5 | 2 | 2.3 | 2 0.84 | 24 0.95 |
| length of drier m | 20 | 12 | 17 | 15 | 10 | 16 |
| driving power kw | 22 | 7.5 | 15 | 11 | 11 | 15 |
