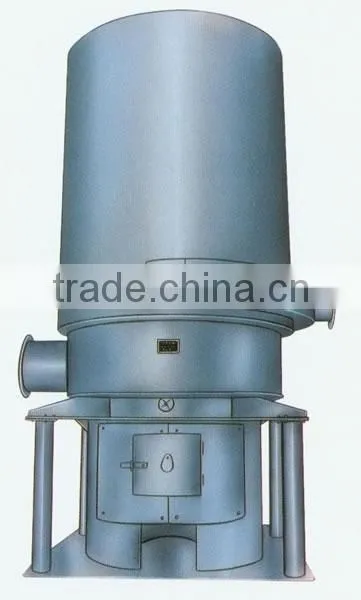

JRF Series Indirect Combustion Air Heating Furnace

JRF Series Indirect Combustion Air Heating Furnace thumbnail-1
JRF Series Indirect Combustion Air Heating Furnace photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Hot Air Furnace
Place of Origin:
Jiangsu, China
Brand Name:
changgan
Contact Supplier Request Quote Chat Now
Changzhou No. 2 Drying Equipment Factory Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Hot Air Furnace
Place of Origin Jiangsu, China
Brand Name changgan
Model Number JRFY
Certification ce
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas


JRF Series Indirect Combustion Air Heating Furnace



Principle of work
The air heating furnace is the versatile hot air equipment. It is used with other equipment for drying various materials. The furnace is widely used for the heating and moisture removing for the grain, seed, feed, fruit, de-watering vegetable, mushroom, edible fungus, tremella, tea, tobacco leaf, other farming products, food, medicine, chemical raw material, light and heavy industry products



Application
The furnace combines the combustion with the heat exchange, using the latest indirect heating technology that the heat exchange is taken place at the position of the high temperature in the furnace. The smoke and the air go into the different channels, without any pollution for the heating. The heat efficiency rate is high (can up to 60 - 75%). The temperature increase is fast. The furnace is small in size, easy in the installation, reliable in the operation and Iow in the price (making a comparison with one ton boiler, the price of this system is only half price of the heating system for the boiler.).



Technical parameters

modeltechnical parameter heat output air output ×104kcal/h hot air temperature (m3/h) coal consumption smoke and air () leading blower blower for cocking (kg/h) blower for cocking
JRF4-2.5 2..5-3 1500-560 60-200 10-12 80-100W
JRF4-4 4-5 3500-930 60-200 14-17 200-300W
JRF5-8 6-8 5600-1480 60-200 18-24 350-550W
JRF5-15 10-15 12000-2160 60-300 40-45 Y5-47 4C 2000rpm 2.2kw
JRF5-30 25-30 25000-4330 60-300 80-90 Y5-47 4C 2520rpm 3kw
JRF5-60 55-60 45000-8660 60-300 150-175 Y5-47 4C 2900rpm 4kw
JRF6-100 80-100 84000-1400 60-300 220-290 Y5-47 5C 2900rpm 7.5kw
JRF6-160 150-160 134400-23000 60-300 410-460 Y5-47 6C 2620rpm 15kw







































































Note:
The environmental temperature standard takes 18±2.The thermal value for the coal takes 5500kcal/kg for the calculation.

The hot air temperature in the table is decided according to the air output. When the temperature is more than 300,the internal wall will be made from stainless steel ,but its price is different.

The layout of equipment will be provided as request.
