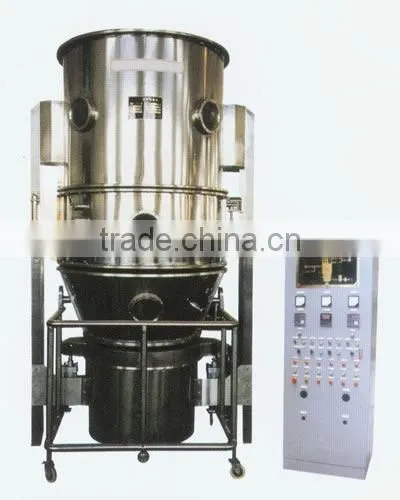

Help CenterBoiling Granulating Drier
Related Products
Drier Application
Medicine granulating and coating
Granulating: granulae of tablet, quick solved drink,granule used for cpsule Coating: granulae, pill protection layer, formulated color, slow release, film, coating for intesting solving.
Foodstuff granulating and coating
Sugar, coffee,c ocoa powder, cream, powder syrup, amino acid, flavoring, puffed food
Granulating for pesticide, pigment, dyestuff
Drying for powder, granule, block raw materials
Features
Because of powder granulating, the fluidity can be improved and the powder dust can be reduced.
Because of powder granulating, the solubility is improved
The produres of mixing, granulating and drying can be finished in one step (granulaying through one step)
Because the atomizer for adhesive adapts multi-fluid spray lance, the particle is uniform and the percent of pass of finished products is raised greatly.
There is no dead corner in equipment. It is quick and convenient to feeding and discharge, The equipment is clean through washing, and is in conformity with the requirements of GMP
Technical parameters
| item | model | |||||||||||||
| name | unit | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | |
| container | volume | L | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 550 | 670 | 1000 | 1500 |
| diameter | m | 0.3 | 0.4 | 0.55 | 0.7 | 0.86 | 1 | 1.1 | 1.2 | 1.5 | 1.4 | 1.6 | 1.8 | |
| capability | kg | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 | |
| working time | min | decided in accordance with the properties of raw materials 45-90 | ||||||||||||
| steam | pressure | Mpa | 0.4-0.6 | |||||||||||
| expenditure | kg/h | 10 | 18 | 35 | 60 | 99 | 120 | 130 | 140 | 161 | 180 | 310 | 400 | |
| temperature | adjustable at the range from room temperature to 120 | |||||||||||||
| fan power | kw | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 30 | 30 | 45 | |
| noise | dB(A) | when installation,main machine is separated from fan | ||||||||||||
| compressed air | pressure | Mpa | 0.6 | |||||||||||
| expenditure | m3/h | 0.3 | 0.3 | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | |
| overall dimension(L×W×H) | m | 1.3 ×1.6 ×1.9 |
1.3 ×1.7 ×2.2 |
1.35 ×1.85 ×2.2 |
1.8 ×1.28 ×3.68 |
1.8 ×1.28 ×3.68 |
2.4 ×1.43 ×4.33 |
2.4 ×1.43 ×4.33 |
3.2 ×1.78 ×3.35 |
3.2 ×1.78 ×3.35 |
3.8 ×1.88 ×4.82 |
4.2 ×2.6 ×5.6 |
4.2 ×2.26 ×6.88 |
|
