Inner Heating Fluid Bed Drier

Inner Heating Fluid Bed Drier thumbnail-1
Inner Heating Fluid Bed Drier photo-1
US$ 10,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Fluid Bed Drying Equipment
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Changzhou No. 2 Drying Equipment Factory Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Fluid Bed Drying Equipment
Place of Origin Zhejiang, China
Certification ce
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
Model Number NLG
Brand Name changgan

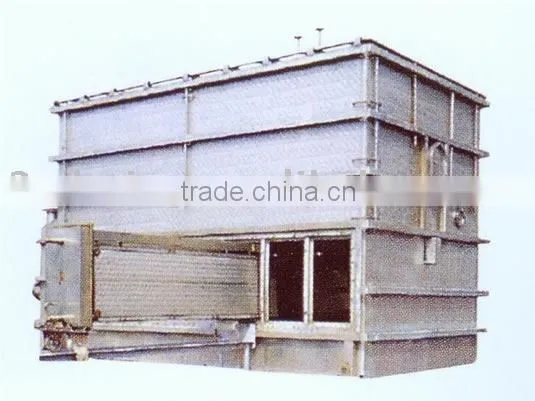

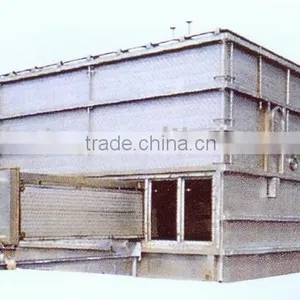

NLG lnner heating fluid bed drier





Description
Inner heating fluid bed drier is developed based on normal fluid bed dryer and indirect heated dryer. Immerse the heat exchanger in the material that is fluidized and dried. The heat required for dewatering is provided by tube heat exchanger and fiuidizing hot air. The air velocity required for to dry the material is less. The main heat is provided by the heat exchanger inside, the hot air is mainly for fiuidization of material, so the hot air velocity required is much less compare to normal fluid bed dryer, power consumption and heat lost with the tail gas are sharply reduced.



Features
Energy saving, Iow running cost The amount of drying air is less; the power consumption is Iow.
The drying capacity is high; the volume of equip-ment is small; the area occupied is less.
The operation flexibility is high; the operation of system is steady.
Adopt special air distributing board, so to avoid leakage of material, and it's good for discharg- ing material of big particles.
Adopt two grades of dust filter, so to meet exhaust requirements of environment.



Technical parameters

spec fluidized
(m2)		 power
(Kw)		 steam
 pressure
(MPa)		 steam
consumption
(kg/h)		 Tem. of
inlet air		 Overall diemensions
(LxWxH)		 occupying
area
(m2)
NLG2.0 2 50 0.2-1.0 400-1000 100-300 3000x1300x4500 45
NLG2.5 2.5 65 0.2-1.0 600-1200 100-300 3500x1300x4500 55
NLG3.0 3 85 0.2-1.0 1400-2200 100-300 3600x1400x4500 65
NLG3.5 3.5 95 0.2-1.0 1000-2000 100-300 4000x1500x4500 80
NLG4.0 4 110 0.2-1.0 1200-2000 100-300 4600x1600x5000 90
NLG5.5 5.5 130 0.2-1.0 1400-2200 100-300 5000x1650x5000 100
NLG6.0 6 140 0.2-1.0 1600-2800 100-300 6000x1700x5000 110
NLG7.0 7 165 0.2-1.0 1800-3200 100-300 6600x1750x5000 120
NLG8.0 8 170 0.2-1.0 2000-2500 100-300 7500x1800x5000 130
NLG10 10 210 0.2-1.0 2400-3600 100-300 10000x1850x6000 140
NLG15 15 300 0.2-1.0 3200-4400 100-300 15000x1900x6500 200
NLG20 20 320 0.2-1.0 4000-6000 100-300 20000x2000x7000 240
