2013 new XPS Foam Board Production Line

Specifications

XPS Foam Board Production Line
1.Excellent insulation
2.Low water absorbance
3.High mechanical resistance

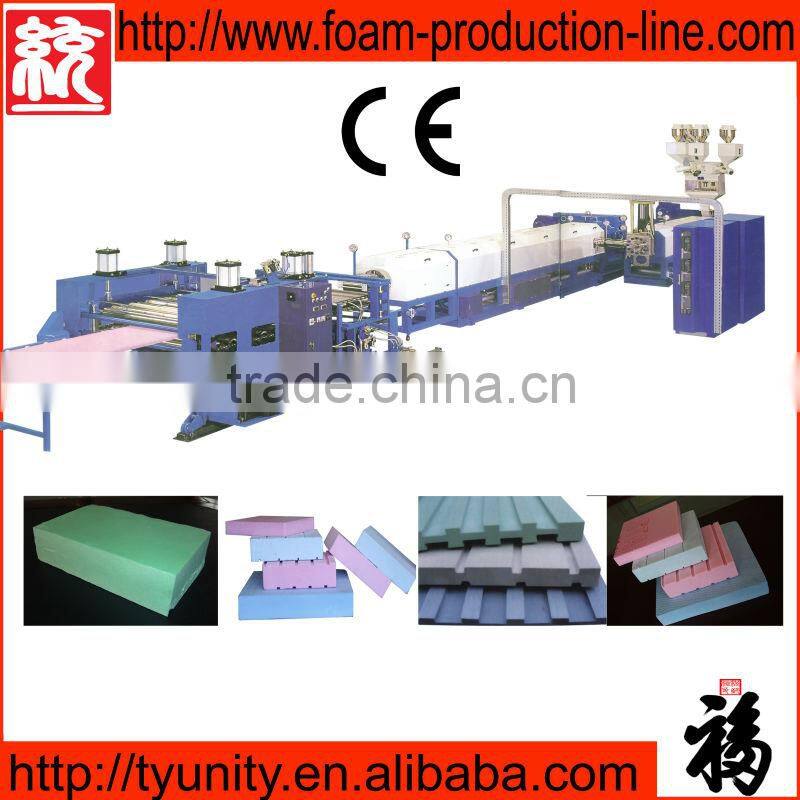

XPS Foamed Board Production Line 135/150

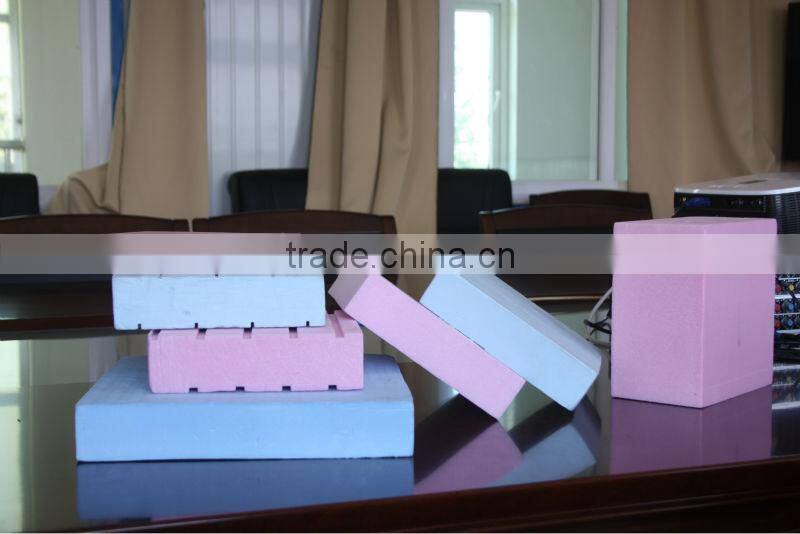

XPS foamed board, also named as Polystyrene Extrusion Plastic Sheet (XPS for short) has a perfect closed-pore alveolate structure. Its density, water absorption, coefficient of heat conducting and the coefficient of steam pervasion are all lower than those of other sheet heat insulating materials.

Characteristics

---strong intensity,

---light material,

---airtight,

---anticorrosion,

---ageing resistance,

---low cost, etc.





It has been widely used in the fields of heat preservation in the construction industry and the highway, railway, airport, square of the heat preservation and household fitment. It is the generally acknowledged and the best heat insulator in the market.



XPS Construction Board Production Line



Model	Unit	TYXPS-135/150		TYXPS-150/170		TYXPS-170/200
Extruder		135/150		150/170		170/200
Heating power	kw	50	52	58	68	78	100
Driving motor power	kw	75	90	90	110	110	132
Thickness of board	mm	20,25,30,40,50,60,75,80		20,25,30,40,50,60,75,100		40,50,60,75,100,120
Width of board	mm	600,900		600,900,1200		600,900,1200
Length of board	mm	1200,1250,2450,2500
Edge of board		SS flat head (SL lap joint, RC rain groove)
Output	kg/h	280-320		300-360		380-500
Installed capacity	kw	300		380		400
Dimensions(L×W×H)	mm	35000×10000×4000		35000×10000×4000		35000×10000×4000
Total weight	T	28		30		33
