fish meal machinery line
SPECIFICATION:
NO |
Name and Specification |
QTY (SET) |
1 |
MAIN MACHINE SYSTEM |
|
1.1 |

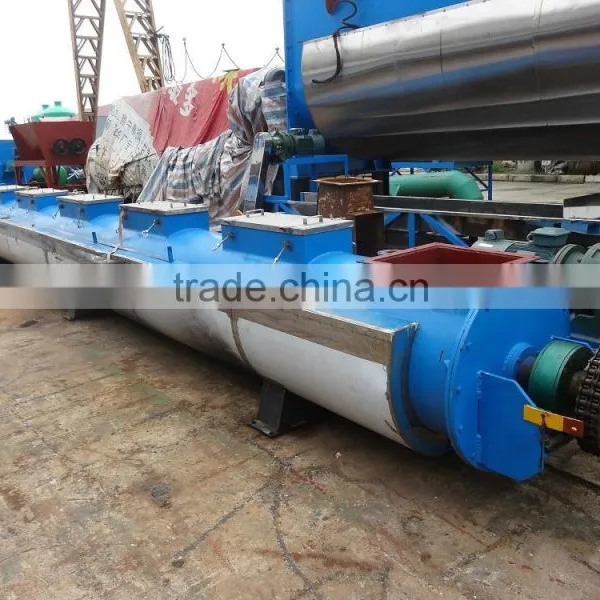

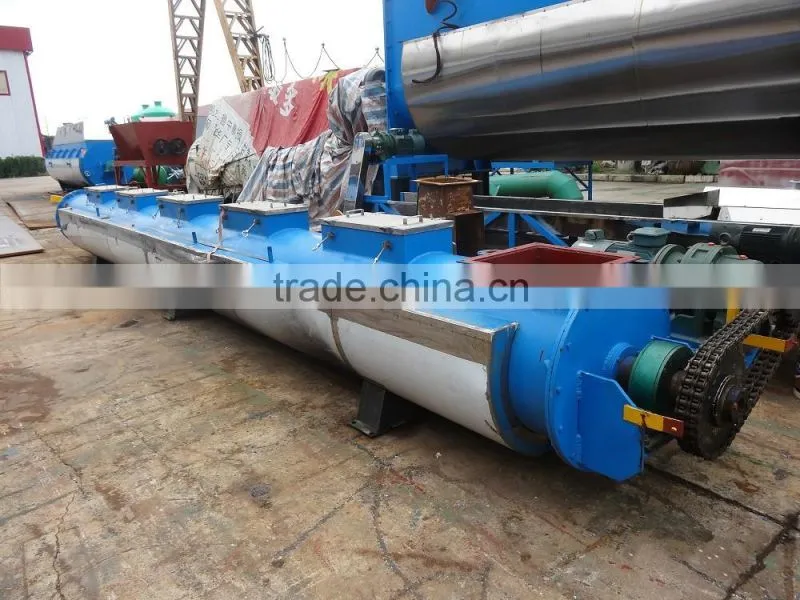

SCREW CONVEYORΦ200×4500 Raw material are made of SUS304 stainless steel;,δ=2.5mm,blade made of SUS304 stainless steel,δ=3mm; Dimensions:5.0X0.3X0.3m; |
3 |
1.2 |
COOKER Φ426X6000 The rotor is made of 426X12 seamless stainless steel tube; The disks and the jacket are made of Q345 low alloy steel plate; The upper cover is made of SUS304 stainless steel; Famous brand rotary joints and stainless steel flexible hoses; Insulation made of aluminum silicate,heated board made of stainless steel SUS304,thickness δ=1.0mm; Dimensions:6.5×0.6×1.0m |
1 |
1.3 |

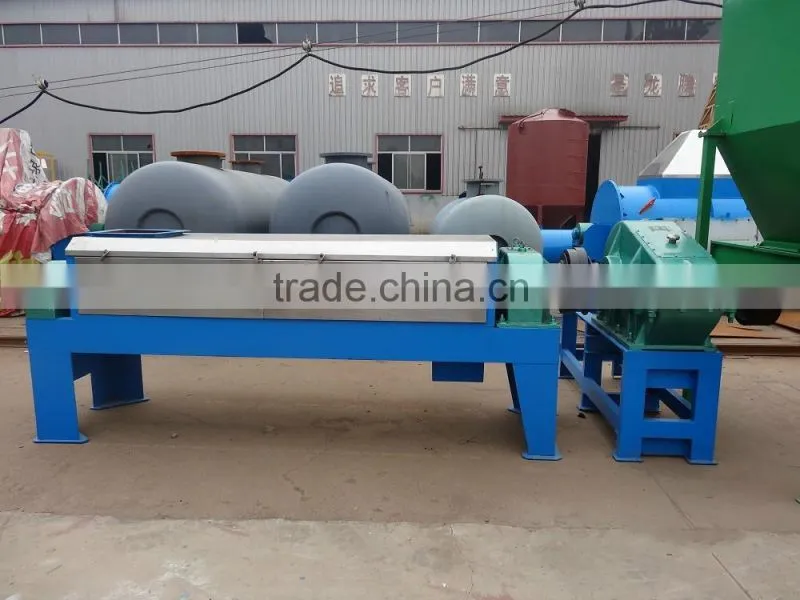

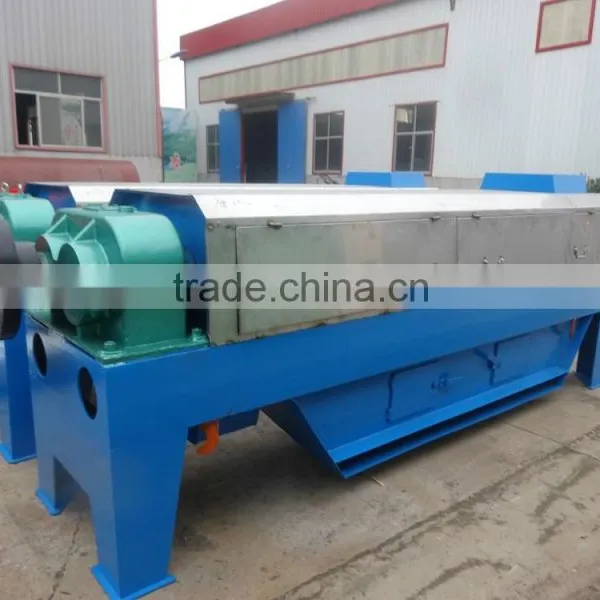

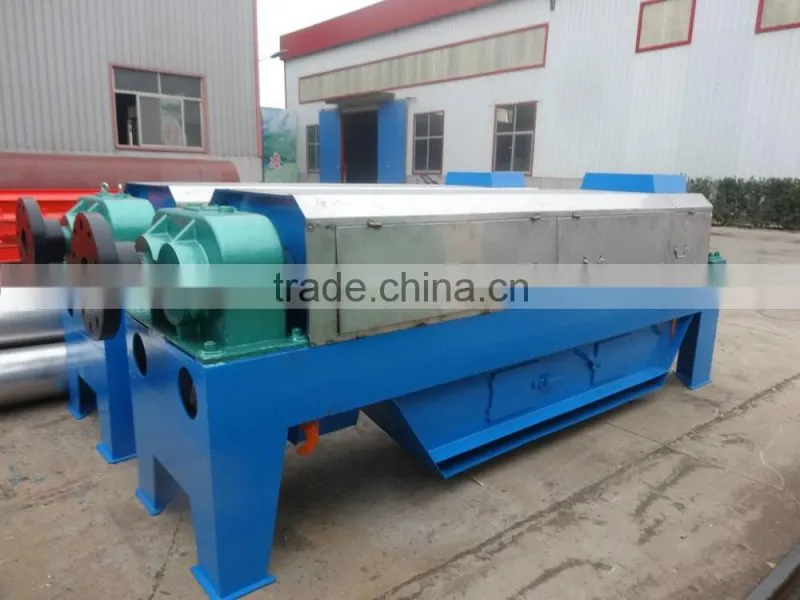

PRESS Φ400X1600 One screws effect efficient oil separation; The screw vane is made of 12mm thickness, 16MnR low alloy steel plate, and good durability; Special compression ratio designed according to special raw material; Heavy ZLY224 group for reduction gearbox; The cover and hatch doors are made of SUS304 stainless steel; Dimensions:3.0×1.2×1.2m; |
1 |
1.4 |

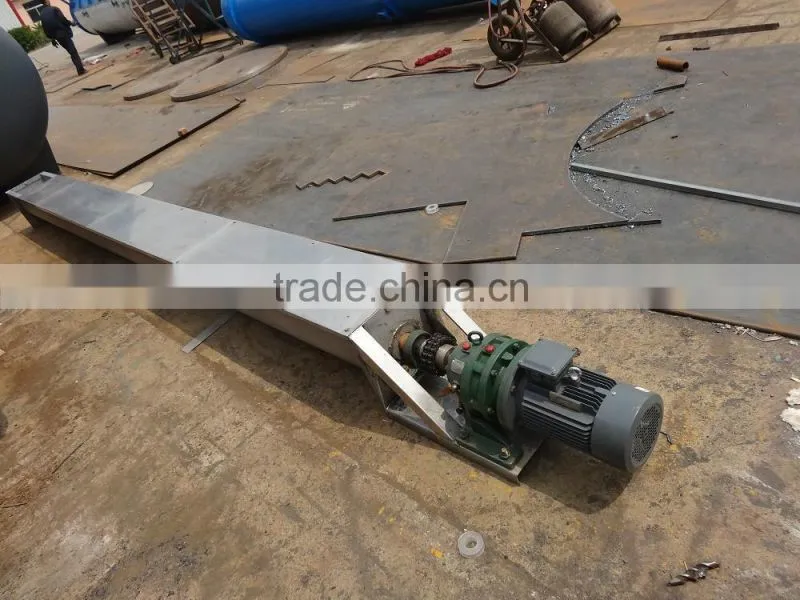

SCREW CONVEYER Φ200×4500 The upper cover is made of SUS304 stainless steel,δ=2.5mm,The lamina made of SUS304 stainless steel,δ=3mm; Size:5.0X0.3X0.3m; |
1 |
1.5 |
STEAM DRYER Φ1200×6000 the jacket (inner: 14mm,outer;10mm) are all made of Q235B steel plates, good durability; The rotor is made of Φ325 X12 seamless steel tube; ZLY224 group for reduction gearbox; The cover made of SUS304 stainless steel; Equipment adopts the type of structure, internal and clamping less than 60mm; Insulation made of aluminum silicate,heated board made of stainless steel SUS304,thickness δ=1.0mm Famous brand rotary joint and stainless steel flexible hose; Dimensions:5.2×1.4×2.1m; |
1 |
|
1.7
|
9FQ50-40 GRINDER Particle Suitable for the national standards Made of T12 low alloy steel, good durability; Dimensions:1.0×0.8×1.0m; |
1 |
2 |
EFFLUENT GAS SYSYTEM |
|
2.1 |
DPF The jacket made of SUS304stainless steel,δ=2.5mm Dimensions:0.8X0.8X2.0m; |
1 |
2.2 |
WATER COOLING All things made of PP, it is replace the stainless, Configuration spray head, increase the contact area Size: 0.8x0.8x2.0m; |
1 |
2.3 |
STORE WATER PAIL The barrel made of Q235B,δ=3mm; |
1 |
2.4 |
AIR PUMP |
1 |
2.5 |
WASTE GAS PIPELINE PIPELINE MADE OF STAINLESS STEEL |
ATTACHED |
3 |
EQUIPMENT SPAREPART |
ATTACHED |
4 |
INSTRUMENT VALVES PARTS |
ATTACHED |
5 |
FISH OIL TREATMENT SYSTEM |
|
5.1 |
FISH LIQUID TRAPS |
3 |
5.2 |
Fat separation machine |
1 |
5.3 |
OIL SEPARATOR Φ1300×2600 The jacket made of Q235B stainless steel,δ=5mm; Heating spiral pipeΦ57×4, Enhance separation effect; Dimensions:1.3X1.3X3.0m; |
1 |
5.4 |
FISH OIL STORAGE TANK The jacket made of Q235B,δ=3mm; |
1 |
6 |
ELECTRICAL CONTROLER Famous brand electrical apparatus elements; Flow diagram with indication lamps; Convenience inspection and maintenance |
1 |
1.8 |
PNEUMATIC CONVEYING MACHINEdir catcher Φ1000*3500,made of Q235Bcarbon steel,thickness δ=3mm;Fall feeder machine Φ500*300,power P=1.5Kw,it is convenient to dropping material ;High pressure exhaust fan Y6-41,power 5.5kw |
1 |
1.9 |
AUTOMATIC WEIGHING SCALES AND MANUAL SEAM CHARTER FLIFHTS |
1 |
7 |
Total: |
18 |
