NO. |
MACHINE & SPECIFICATION |
QTY (SET) |
POWER (KW) |
|
1 |
|
|||
1.1 |
COOKING MACHINE Φ377-2×6000 Spindle: Φ219×12 seamless steel tube. Heating vane: 16MnR with thickness 6mm; Inside and outside heating cylinder: Q235B steel plate with thickness 12mm. Upper cover: SUS304 stainless steel. Working pressure: 0.7MPa, steam consumption : 600kg/h. Dimension: 8.8×1.0×1.4m. |
1 |
8
|
|
1.2 |

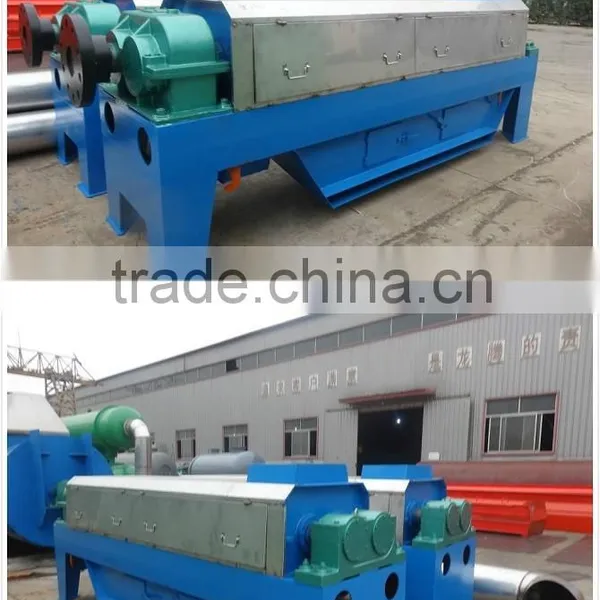

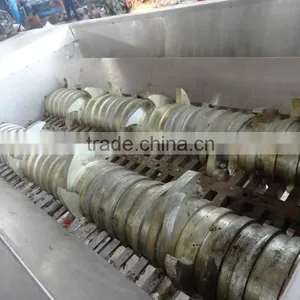

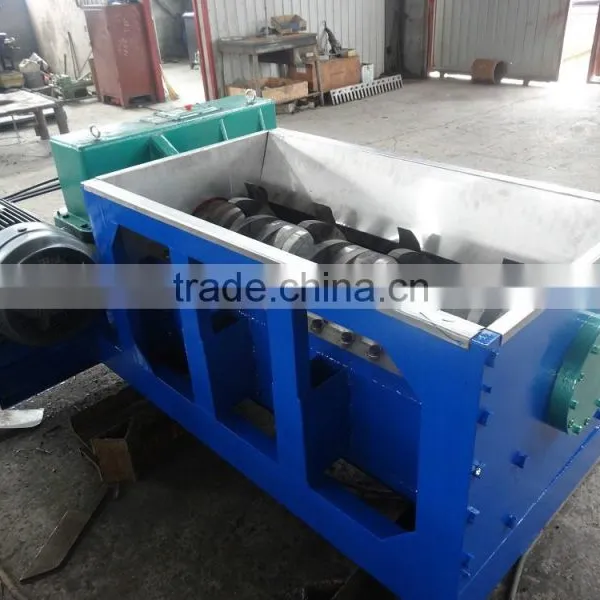

PRESSING MACHINE Φ320X2-2800 Twin-screw extrusion Screw blade: 16MnR, 18mm Reduction gearbox: heavy type ZQ650-1. One-piece frame, easy to install Dimension: 5.4×1.2×1.8m |
1 |
22 |
|
1.3 |

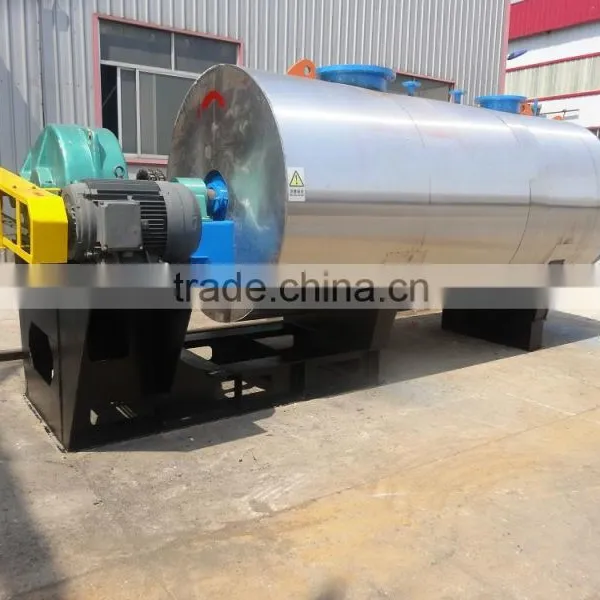

STEAM DRYER Φ1600×6000 Heating area up to 120m2, quick speed and high output. Inside cylinder: Q235B material, δ=16mm. Outside cylinder: Q235B material, δ=12mm. Heating plate: Q245Bsteel. Spindle: Φ510X25 seamless steel tube. Reduction box: ZLY280 type, Bearing: 3540 Working pressure: 0.7MPa, Steam consumption: 1200kg/h. Dimension: 8.8×1.6×2.2m
|
1 |
30
|
|
1.4 |
DRYER SHAFT Φ1300×7000 Heating coil: Φ76X6mm seamless steel tube. Spindle: Φ377X25 seamless steel tube. |
1 |
-
|
|
1.5 |
FINISHED PRODUCT STORAGE BIN U1500×3000 Shell: Q235B carbon steel, thickness 3mm. Dimension: :4.5X1.6X2.5m.
|
1 |
3
|
|
1.6 |
AUTOMATIC PACKING MACHINE |
1 |
5.5 |
|
2 |
|
|||
2.1 |

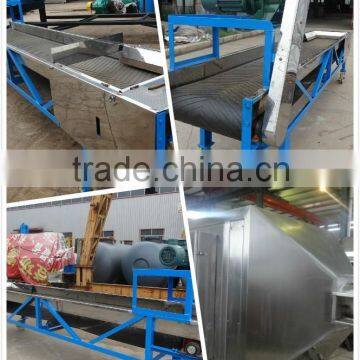

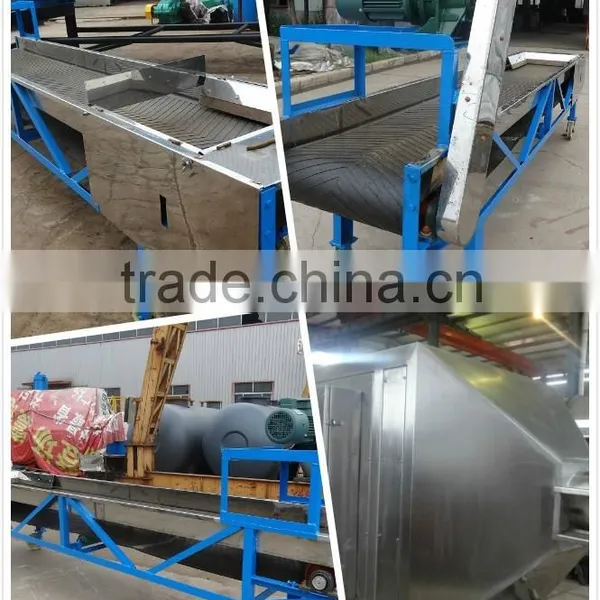

CONVEYOR Raw material bin→ Cooking machine Φ300×5000 Pressing machine → Steam dryer φ300×4000 Cooling and screening → Storage bin Φ273×5000 Material: SUS304 stainless steel. |
3 |
2.2*3 |
|
3 |

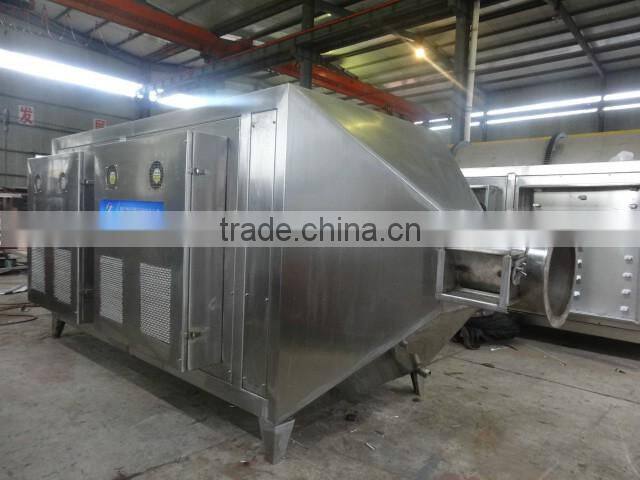

WASTE GAS TREATMENT EQUIPMENT |
|
|
|
3.1 |
TRAP Φ800X1600 Material: SUS304 stainless steel, δ=2.0mm |
2 |
---
|
|
3.2 |
HORIZONTAL CONDENSER Φ800X4000 Dimension: 6000X900X900mm Outside sheel: Q235Bcarbon steel, thickness 6mm. Ends: 304 stainless steel. Cooling pipe: Φ32×2.0, SUS304 steel. Heat exchange area per set: 502.
|
4 |
---
|
|
|
3.3
|
INDUCED DRAFT FAN Y6-41-5.4C Material: SUS304 stainless steel.
|
1 |
11 |
|
3.4 |
COOLING WATER CIRCULATION POOL |
1 |
|
|
3.5 |
PIPELINE PUMP 100-100A Power: 4kw
|
2 |
4*2 |
|
3.6 |
COOLING TOWER NBDL80 Cooling circulation of hot water. Material: fiberglass. Handling capacity: 80m3/h.
|
2 |
2.2*2 |
|
3.7 |
SPRAY TOWER Φ1500X3500 Material: fiberglass. Four fluorine pump: FS102-3 |
1 |
1.5 |
|
4 |
STEAM RECYCLING MACHINE |
1 |
5.5 |
|
5 |
ELECTRIC CONTROL CABINET
|
1 |
--
|
|
6 |
INSTRUMENT, VALVE, QUICK-WEAR PARTS.
|
--- |
|
|
TOTAL |
|
22
|
105.5 |
|
