Help CenterFish Meal
Related Products
Specifications
fish meal1,we have done that more than 5 years
2,Professional engineers
3,with high quality and competitiv
fish meal
1,we have done that more than 5 years
2,Professional engineers
3,with high quality and competitive price

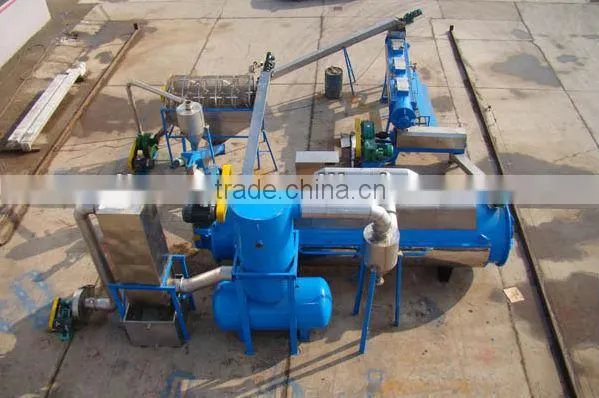

TECHNOLOGICAL PROCESS
details machins

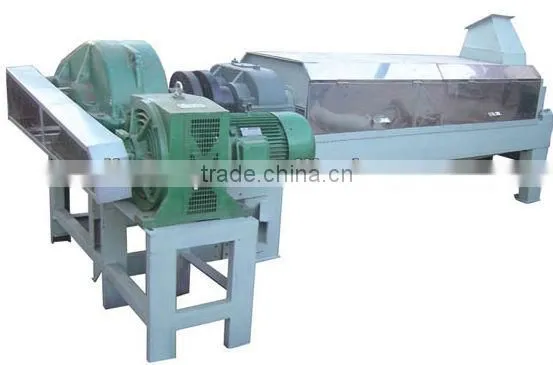

squeezer:
PRESS 400X1600
One screws effect efficient oil separation;
The screw vane is made of 12mm thickness, 16MnR low alloy steel plate, and good durability;
Special compression ratio designed according to special raw material;
Heavy ZLY224 group for reduction gearbox;
The cover and hatch doors are made of SUS304 stainless steel;
Dimensions:3.0×1.2×1.2m;
screw coverey:
The upper cover is made of SUS304 stainless steel,2.5mm,The lamina made of SUS304 stainless steel,3mm;
Size:5.0X0.3X0.3m;
main line:
fat seperation:
dry machine:
STEAM DRYER 1200×6000
the jacket (inner: 14mm,outer;10mm) are all made of Q235B steel plates, good durability;
The rotor is made of 325 X12 seamless steel tube;
ZLY224 group for reduction gearbox;
The cover made of SUS304 stainless steel;
Equipment adopts the type of structure, internal and clamping 60mm;
Insulation made of aluminum silicate,heated board made of stainless steel SUS304,thickness δ=1.0mm
Famous brand rotary joint and stainless steel flexible hose;
Dimensions:5.2×1.4×2.1m;
deodorizer syste:
cook staming:
COOKER 426X6000
The rotor is made of 426X12 seamless stainless steel tube;
The disks and the jacket are made of Q345 low alloy steel plate;
The upper cover is made of SUS304 stainless steel;
Famous brand rotary joints and stainless steel flexible hoses;
Insulation made of aluminum silicate,heated board made of stainless steel SUS304,thickness 1.0mm;
Dimensions:6.5×0.6×1.0m
we export to many countries.
2.Delivery time: Within 60 days after the L/C is received.
3. Payment term: L/C at sight
5. Will supply the general technology recipes, know-how information for free .
6. Will send engineer for installation, debugging and training after-sale services.
7. The guarantee time is 1 year and seller shall supply the spare parts and services at cost price after one year.
Believe we can meet your demands.
Thank you!!
