Modular vehicle disinfection system
Specifications
Food processing disinfection for vehicles and personnel
1. Intelligent type, auto on/off.
2. Double row design, efficiency.
Modular vehicle disinfection system
Main Technical Parameters
|
Static wind Spray Range (Each Single Nozzle) |
3m (Adjustable) |
|
||
Particle Size |
30-150 μm |
|
||
Doser Mixed Proportion |
0.4%—4% |
|
||
Spray Time |
1-100min. (Adjustable) |
|
||
Spray Volume(Single Channel) |
4.8L/min |
|
||
The Parameters For Each Single Nozzle(Water Pressure on 4 bars) |
|
|||
Air Pressure(bar) |
Liquid Float Volume(L/h) |
Air Consumption(L/min) |
||
4.6 |
59 |
106 |
||
5.3 |
40 |
132 |
||
5.6 |
32 |
145 |
||
6.0 |
26 |
158 |
||
6.3 |
20 |
172 |
||
6.7 |
15.9 |
185 |
||
7.0 |
12.7 |
198 |
||
Modular vehicle disinfection system
Field of application:
The vehicle disinfection for breeding farm, food pocessing plant, pharmaceutical facory, electronics, laborator etc.
Modular vehicle disinfection system
Feature:
1. Qick installation: It can be quickly installed on any road entrance in affected areas.
2. Rabid disinfection- Using the air-water mixed misting method, it can ensure a rapid and thoghly uniform disinfection for the vehicle, taking only 5% of the time compared to the traditional methods.
3. Intelligent disinfection: Equipped with sensor monitoring control device, th disinfection equipment automatically start when the needed vehicle arrived; and shut down automatically when the vehicle left.
4. Solution saving: using the ai & water mixed mising technology for disinfection, the dosage is only 10% of the convential method.
Modular vehicle disinfection system

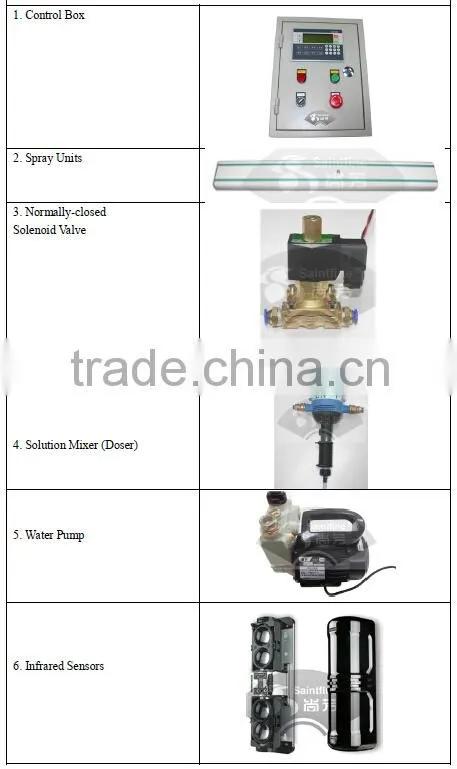

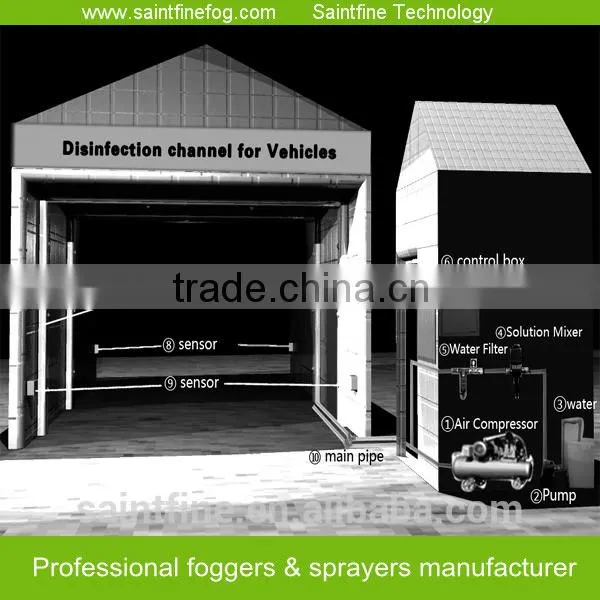

Main Parts Name
Diagram
Modular vehicle disinfection system

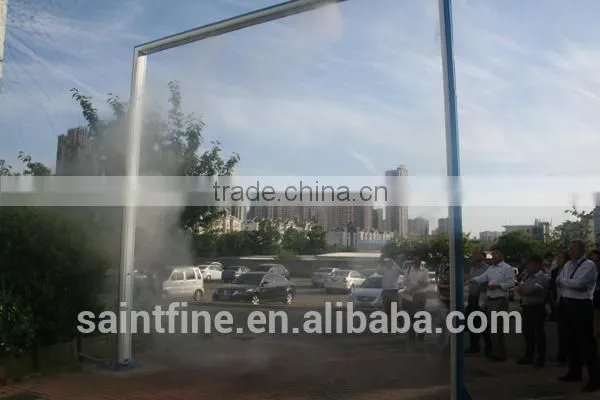

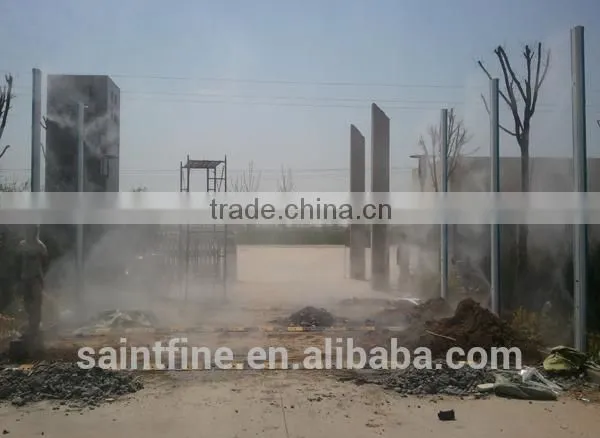

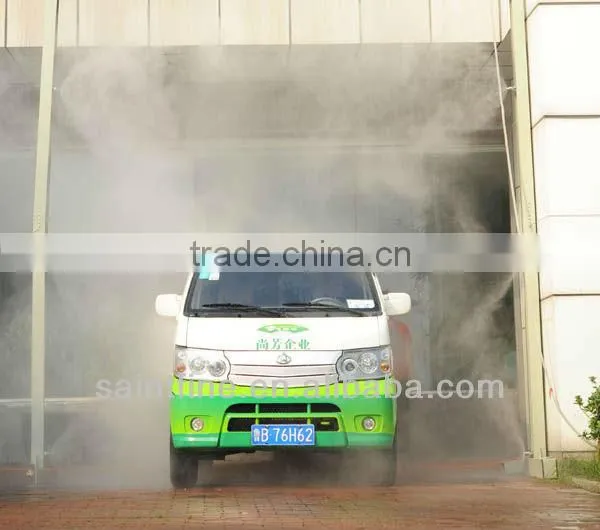

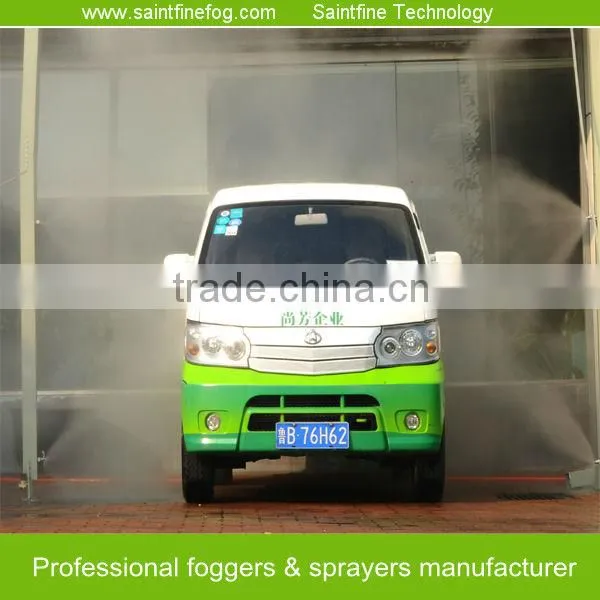

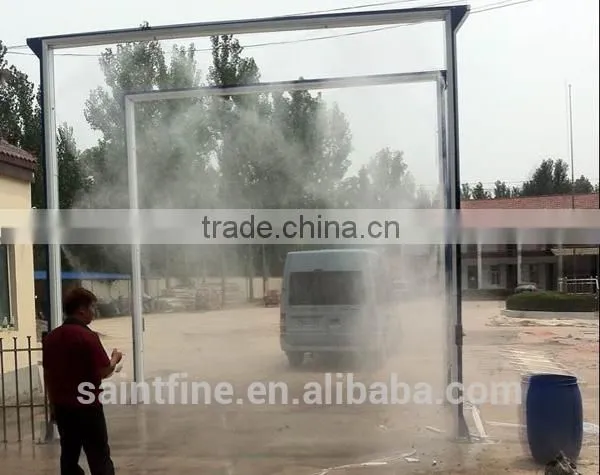

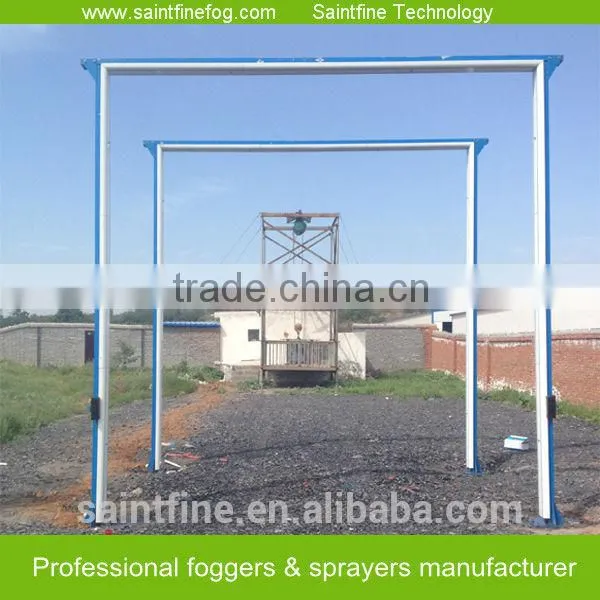

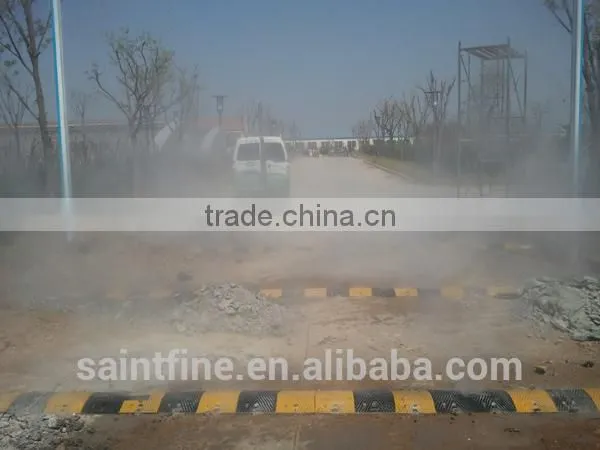

Installed Projects
