1.8T mini crawler excavatorhydraulic operation
YanMa engine
digging,smashing,cleaning,soil grabbing and pushing

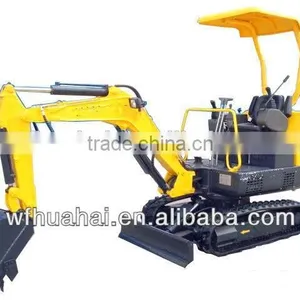

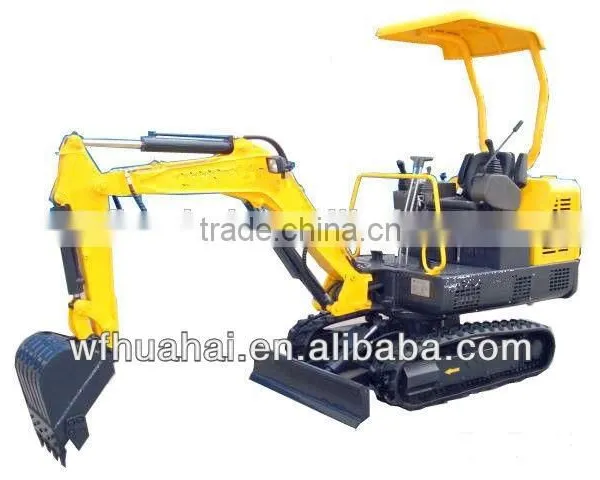

1.8T mini crawler excavator HHM18
mini crawler excavator
mini excavator
Hydraulic pump, main valve,walking motor and slewing motor all adopt world top products with good quality and steady working to ensure the whole system to run smoothly. Hydraulic system adopts three-pump three-loop system, constant power variable control,and flow limiter with the third pump(spurgear pump)control to fully harness the engine power to work. Outside swing arm valve two pumps confluent at big chamber and inside bucket pole valve two pumps confluent in double direction quicken working speed and improve working efficiency. Optimized design can ensure the effectiveness of independent and combined movements. Control parts are perfectly matched to ensure the whole machine’s adequate handleability. It’s also among the first to adopt hydraulic breaker operating mode with manual electromagnetic control.
model |
unit |
HDE18 |
machine weight |
Kg |
1750 |
Capacity of bucket |
m3 |
0.05 |
Rated power |
Kw |
16.0KW@2200 |
size | ||
length |
Mm |
3800 |
width |
Mm |
1200 |
height |
Mm |
2260 |
Min. slewing radius |
Mm |
1700 |
Min. ground clearance |
Mm |
210 |
Rated flow |
|
2×20+10 |
Working pressure |
Map |
21 |
Performance parameters | ||
Slewing speed |
rpm |
11 |
Traveling speed |
km/h |
4.5 /2.3 |
Dipper digging force |
KN |
15 |
Digging ability of dipper handle |
KN |
11.5 |
Climbing ability |
° |
≥30(58%) |
Working parameters | ||
C Max digging depth |
mm |
2180 |
D Max. vertical digging depth |
mm |
1700 |
F Max. digging height |
mm |
2280 |
A max. digging radius |
mm |
3650 |
B Max ground digging diameter |
mm |
3550 |
Dozer blade | ||
width*height |
mm |
1200×200 |
Operating range up/down |
mm |
220/250 |
fuel tank volume |
L |
20 |
water tank |
L |
3 |
Hydraulic oil tank |
L |
26 |
Travel reducer |
L |
0.4×2 |
