Color Steel Roll Forming Machine
- qingdao tianjin ningbo shanghai port
- Credit Card
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Glaze | Use | Wall | |
| Production Capacity | 8-12m/min | Place of Origin | Henan, China | |
| Brand Name | SL | Model Number | roll forming machine | |
| Power(W) | 5.5KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 5500*1350*1200 | Weight | About 3.2T | |
| Certification | CE &ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Contact me :
skype:shuliy218
QQ:2508590019
phone:0086-13837171981

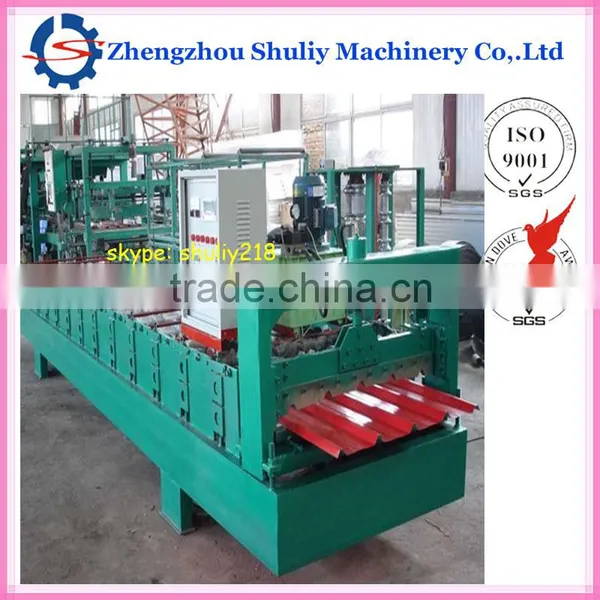

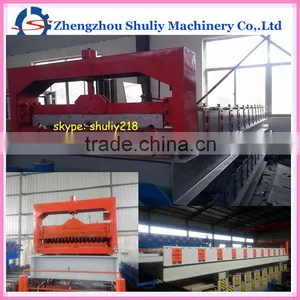

Corrugated roof panel roll forming machine
The production process
Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter

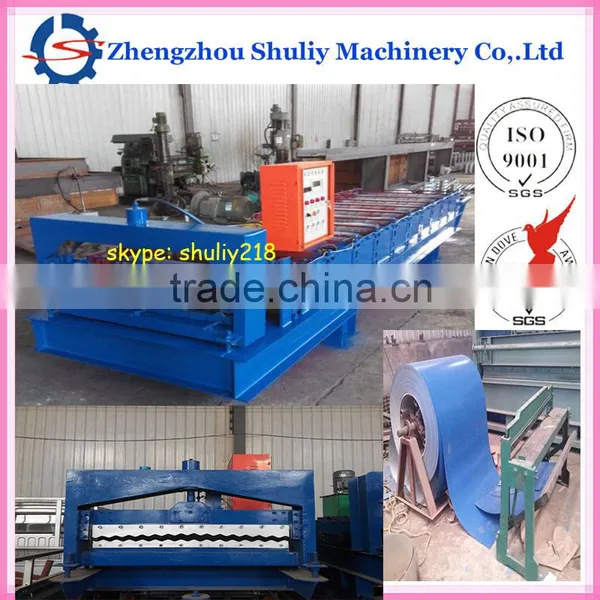

Components
Technical Parameter:
Configurations | Manual Uncoiler ,Feeding platform,Coil Strip Leveler ,Roll froming machine,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
Control System | PLC Delta Inverter |
Main Frame | 300mm H-Beam |
Main Power | 4 kw |
Pump Power | 4 kw |
Power Supply | 380V, 3-Phase,50Hz |
Forming Speed | 8-15/min |
Roll Station | 13stands |
Roller Diameter | 80mm |
Hydraulic Pressure | 10-12MPa |
Forming Size | 780mm |
Feeding Thickness | 0.3-0.8mm |
Feeding Width | 1000mm |
Backboard thickness | 14mm |
Chain Size | 20mm |
Cutter Materail | Cr12 |
Roller Material | Cr12 |
Cr-Plating Size | 0.05mm |
Overall Size | 8000×1500×1600mm |
Total Weight | 4T |

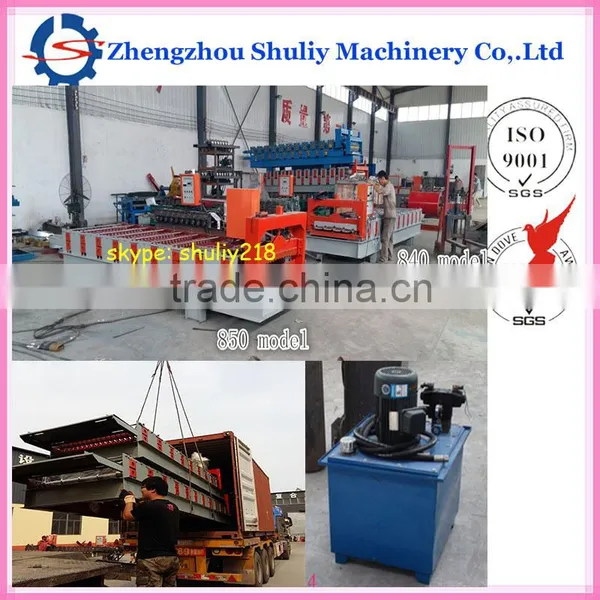

840 ,850single layer roll forming machine

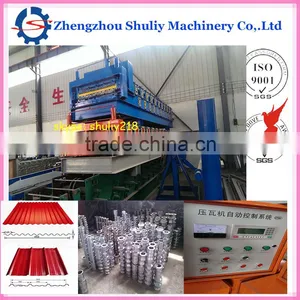

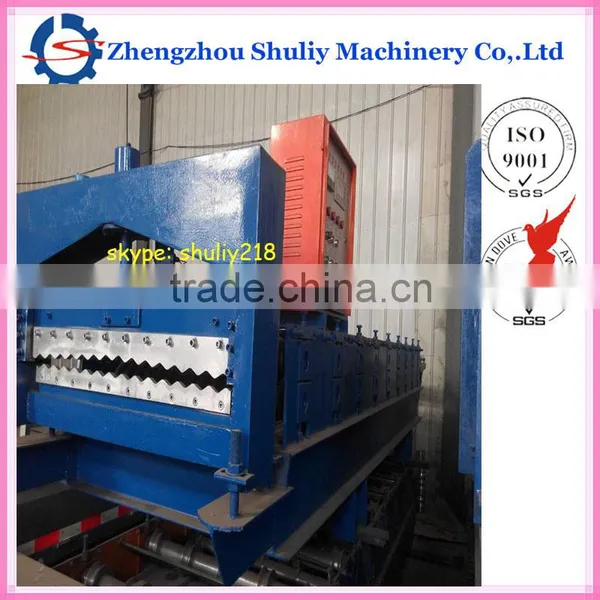

Double layer roll forming machine:
Why choose us :
1. What's your MOQ?
Answer: 1 set.
2. When to deliver the machine?
Answer: We deliver the machine within 40 days after receiving the prepaid. Some machines are in stock, so can be delivered at any time.
3. Are you a foreign trade company or factory?
Answer: We are a factory, specialized in producing all kinds of roll forming machines.
4. How can i visit your factory?
Answer:
Fly to Xinzheng Airport: directly , then we will pick you up.It's only 30min from our office to Xinzheng airport.
5. How can i trust you?
Answer: As for the quality, CE&ISO certifications have been achieved. For our innovations on the machines, We also get the Certificate of Utility Model Patent from State Intellectual Property Office of the People's Republic of China. And, we are Trade Assurance supplier, our customers are covered for on-time shipment, pre-shipment product quality, most importantly, will refund you the covered amount when we supplier does not meet the requirements in the contract. so trade with confidence.
Thank you for your attention.
Any need, please contact me ..
