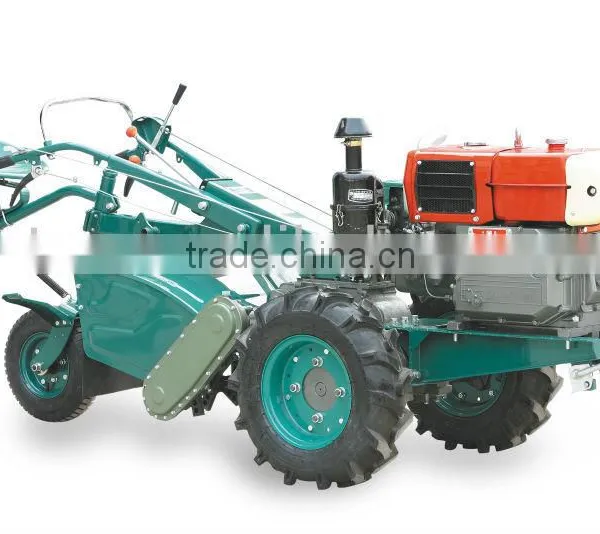

| chassis information | |
| model | GN12 |
| size | 2950*980*1240mm |
| wheel tread | 570,630,690,750,810mm |
| tyres | front 6.00-12 |
| rear4.00-8 | |
| skid wheels | 2 NOs.42kg |
| ground clearence | 210mm |
| working weight (with rotary tiller | 480kg |
| speed (km/hr) | forward 1.41,2.51,4.21,5.22,9.27,15.56 |
| reverse 1.11,4.12 | |
| rotary tiller | model:1 GL-60 |
| whole weight :118kg | |
| width:600mm | |
| transmission type:chain drive | |
| turning speed :1st :low:200,high:251,2nd :low:233,high :291 | |
| blades No;18 pcs | |
| engine information | |
| model | S195 diesel |
| type | single cylinder ,4 -stroke ,horixional ,water -cooled ,diesel |
| cooling model | condenser(radiator) |
| rated power | 9.7kw |
| rated speed | 2000rpm |
| fuel efficience | <244.8gl/kw.hr |
| net weight | 150kg |
| packing | case dimensions 113*108*108cm |
| N.W/G.W:480/540KG | |
| optional accessories | trailer |
| disc plough | |
| double plough | |
| single plough | |
| water pump | |
| container load | |
| packing | 22pcs /20FCL,48PCS/40H |
1. How about your after-sale system?
Our company provides perfect after-sale service, if there is any problem that you can not solve by yourself, please contact with our salesman, and they will try to help you together with our engineers.
2. How to order spare parts? Is that available?
For each TNS-80 power tiller there is one tool bag, inside it there are three copies of catalogue, one of them is spare parts catalogue, if you want to order some spare parts, please refer to it. If you can not match the real parts to the reference number, please contact with our salesman, they will help you. All of those spare parts are available. It is easy to purchase from us.
3. How to packing?

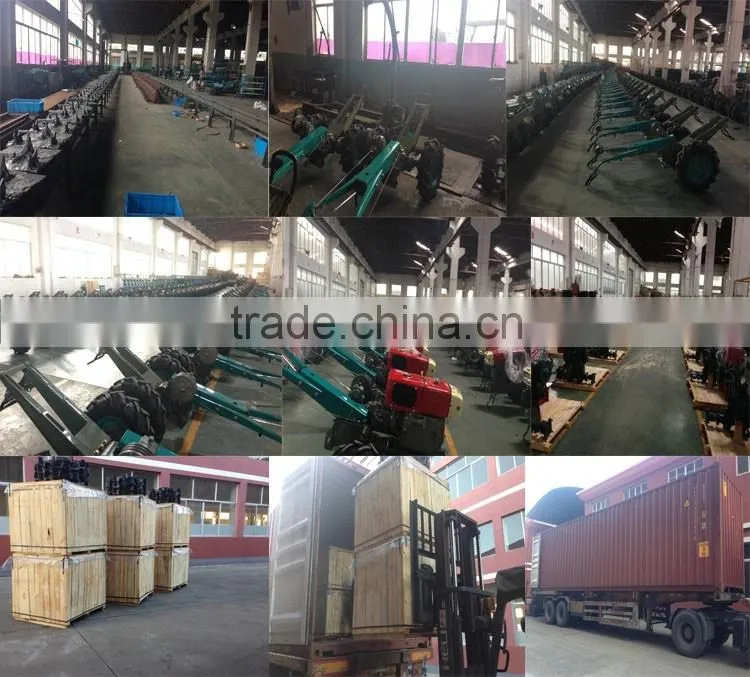

For the packaging, we will use a wooden box ,If you want to do the outside marks, please inform our salesman in advance, and leave them enough time to do the preparation.
4. About orders
Generally there are two seasons in the whole year, are March to April and September to October. But different areas still depend. Anyway, if you are interested in our machine, please try to contact with our salesman in advance so that there is enough time for manufacturing.
5. If there is something unclear for you, please feel ease to contact with us, all the staff are convenient for you.
This information will be updated from time to time, so please pay attention to us. Our company reserves the final rights to explain anything that is unclear.
