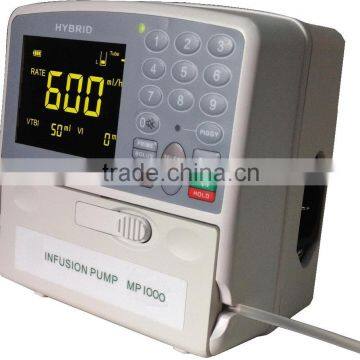

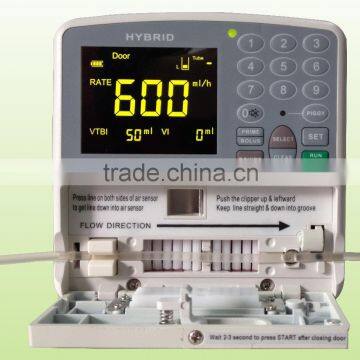

Mini infusion pump MP1100

Accuracy error rate

±5%(±3%after proper calibration)

Applicable IV sets

All brands of IV sets of national standard (tubing diameter: 3.5-4.5mm)

Rate range

1~600 ml/h, 1~1200 ml/h

VTBI

1-9999ml

Prime/Bolus rate

600ml/h

Piggy function

Piggy rate: 1-600ml/h, Piggy VTBI: 1-9999ml

KVO rate

Upon ‘over’ alarm, the pump continues at 6ml/h to keep vein open.

Power

AC100~240V, 50/Hz±1Hz

Fuse

T 2AL 250V

Built-in battery

Rechargeable lithium ion battery, 8.4V, 1600mAh

Duration of battery

Run continuously for over 2 hours at the fastest rate (600 ml/h) after being fully charged.

Battery charging

The pump starts charging the battery automatically after being connected to AC power. It needs 8~12 hours (power-on) to get battery fully charged.

Displayed information

Rate, VTBI, VI, air, occl, over, AC / battery symbol, L.batt., Er, door open, tube, occlusion level, piggy indicator light

Alarm functions

over, L.batt., air, occl, er, door open

Occlusion gate

“Occl” alarm shall be given when tubing pressure reaches 0.08Mpa~0.16 Mpa. The occlusion dose is ≤0.8ml. The responsive time is respectively: 2~3 seconds at higher rate (400ml/h)

5~7 seconds at lower rate (200ml/h)

35~50 seconds at very low rate (25ml/h)

Shell size

130x130x80 mm (LxHxD)

Net weight

≤1.15kg

Classification

Class II, type BF, waterproof level: IXP3

Shell material

Environmental-friendly ABS plastic

Operation conditions

Ambient temperature: 5~40℃, atmospheric pressure: 70~106kPa,relative humidity: 20%~80%

Storage conditions

Ambient temperature: -15~50℃, atmospheric pressure: 70~106kPa, relative humidity: 20%~80%

Electricity safety

GB 9706.1-2007,GB 9706.27-2005
