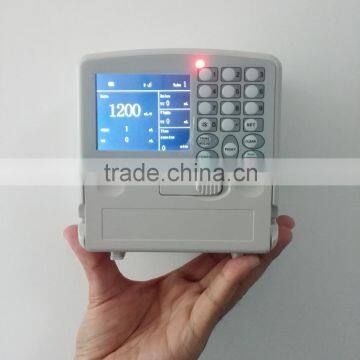

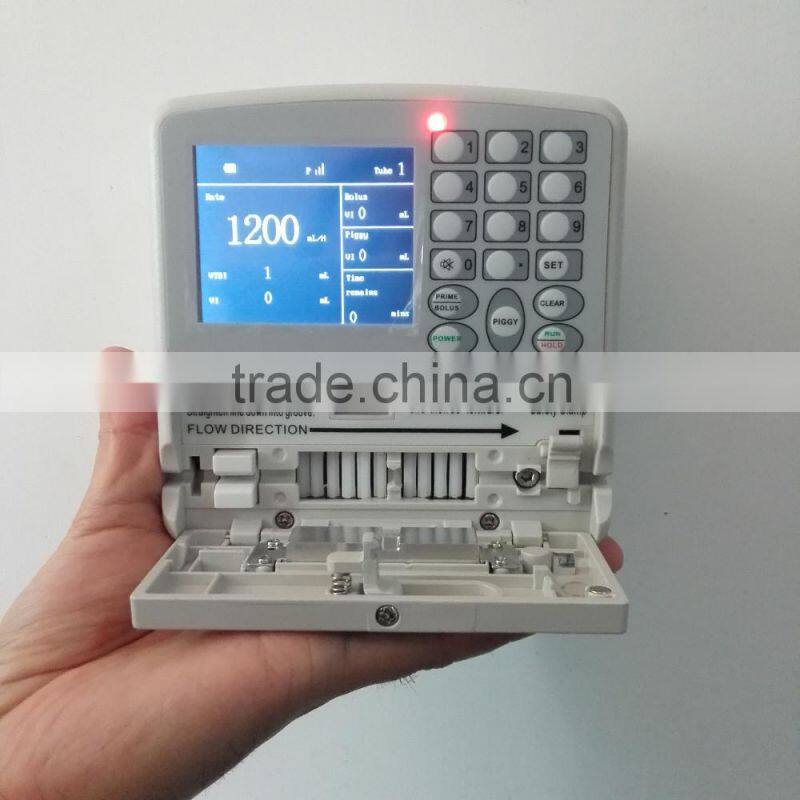

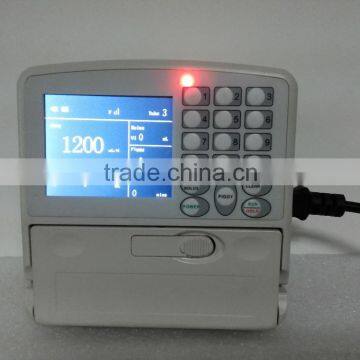

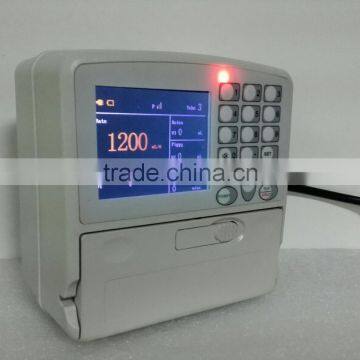

Mini infusion pump MP1200

Accuracy error rate

±5%(±3% after proper calibration)

Applicable IV sets

All brands of IV sets of national standard (tubing diameter: 3.5-4.5mm)

Rate range

0.1~1200 ml/h

VTBI

0.1-9999ml

VI

0.1-9999ml

Prime/Bolus rate

1-1200ml/h, adjustable

KVO rate

Upon ‘over’ alarm, the pump continues at 5ml/h to keep vein open.

Power

AC100~240V, 50Hz±1Hz

Fuse

T 2AL 250V

Built-in battery

Rechargeable lithium battery,

7.4V, 1600mAh

Duration of battery

Run continuously for over 2 hours at the fastest rate (600 ml/h) after being fully charged.

Battery charging

The pump starts charging the battery automatically after being connected to AC power. It need 8~12 hours (the pump being powered on) to get battery fully charged.

Displayed information

Rate, VTBI, VI, air, occl, over, AC / battery symbol, L.batt., Er, door open, tube, occlusion level

Alarm functions

Over, L.batt., air, occl, er, door open

Occlusion gate

‘Occl’ alarm shall be given when tubing pressure reaches 0.08Mpa~0.16 Mpa. The occlusion dose is ≤0.8ml. The responsive time is respectively: 2~3 seconds at higher rate (400ml/h)

5~7 seconds at lower rate (200ml/h)

35~50 seconds at very low rate (25ml/h)

Shell size

130x130x80 mm (LxHxD)

Net weight

≤1.1kg

Classification

Class II, type BF, waterproof level: IPX1

Shell material

Environmental-friendly ABS plastic

Operation conditions

Ambient temperature: 5~40°C, atmospheric pressure: 70~106kPa, relative humidity: 20%~80%

Storage conditions

Ambient temperature: -15~50°C,atmospheric pressure: 70~106kPa, relative humidity: 20%~80%

Electricity safety

GB 9706.1-2007,GB 9706.27-2005
