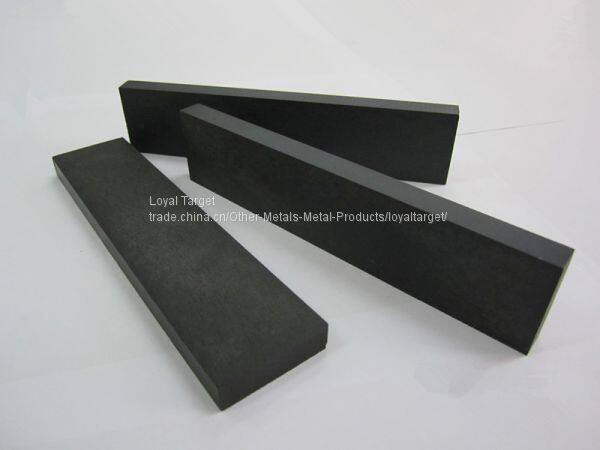

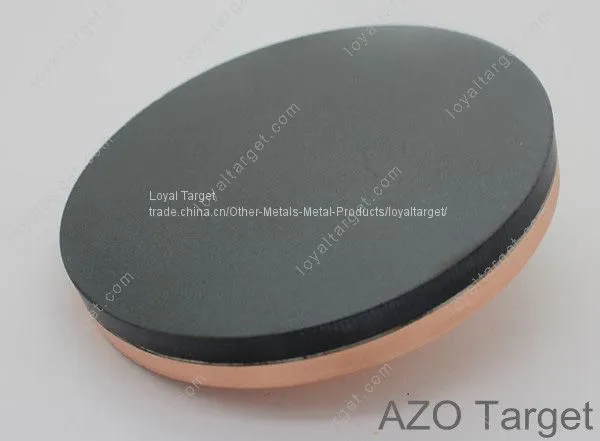

Products attributes of Aluminum zinc oxide target
AZO (Al2O3-ZnO) target is able to form TCO (Transparent Conductive Oxide) film which is a transparent film with high conductivity.
AZO has been drawing more attention lately as an alternative to ITO (In2O3-SnO2) while ITO is much more expensive and grows more concerns about its bad influence on human bodies.
AZO Sputtering Target (Alumina Doped Zinc Oxide) is a transparent conductive oxide commonly used as a transparent electrode for solar photovoltaic applications and in large area architectural glass coating.
Item Name |
ZnO+Al2O3 (ZnO+Al2O3=98:2 (wt%)) |
Linear Formula |
ZnO:Al2O3 |
Purity |
99.99% |
production method |
melting, spraying |
CAS. No |
37275-76-6 |
Resistivity |
5×10-4Ω·cm |
Theoretical Density |
5.4g/cm3 |
Shape |
Square/Round, According to your request |
Available size |
Round: dia 25~300mm,Thickness:3~10mm Rectangular: Length up to 1500mm Customization is available |
Certificates |
ISO9001:2008, SGS, the third test report |
Technics |
Hot Isostatic Pressing, Vacutln Sintering/HIP |
Application |
semiconductor, chemical vapor deposition (CVD), physical vapor deposition (PVD) display and optical |
Packaging and shipping
Packaging of Aluminum zinc oxide target: Vacuum sealed package inside, then wrapped with bubble and loaded to carton outside.
Shipping of Aluminum zinc oxide target:
| Shipping way | Time |
Notes |
EMS |
7-10 days |
Sample delivery |
DHL,Fedex,TNT,UPS |
7-10 days |
For your choice |
By Air |
7-10 days |
25-100KG |
By Sea |
25-30 days |
Sometimes need more than 30days |
Compamy Information
Loyal Target is focused on high purity metal processing, ceramic sintering and thin film deposition materials. Loyal Target is one of the leading producers of materials for high vacuum coating with more than 10 years experience.
Thin Film Products of Loyal Target covers a wide range of highly effective sputtering targets, evaporation materials and high purity metals for Optics, Wear Protection, Microelectronics and Large Area Coating applications.
Our company objective is to provide materials scientists and engineers with highly individualized solutions for their specific R&D requirements at a optimized budget.
Main Product
Sputtering Targets: Ceramic Targets, Metal Targets, Custom-made Targets
Evaporation Materials: Metals Pellets, Oxide Granules
High pure Metals: Targets, Pellet, Wires, Foils
Target Boning Service: Indium, Copper backing plate
