RE-301 Rotary Vacuum Evaporator Distillation Crystallization

RE-301 Rotary Vacuum Evaporator Distillation Crystallization thumbnail-1
RE-301 Rotary Vacuum Evaporator Distillation Crystallization thumbnail-2
RE-301 Rotary Vacuum Evaporator Distillation Crystallization thumbnail-3
RE-301 Rotary Vacuum Evaporator Distillation Crystallization thumbnail-4
RE-301 Rotary Vacuum Evaporator Distillation Crystallization thumbnail-5
RE-301 Rotary Vacuum Evaporator Distillation Crystallization photo-1
RE-301 Rotary Vacuum Evaporator Distillation Crystallization photo-2
RE-301 Rotary Vacuum Evaporator Distillation Crystallization photo-3
RE-301 Rotary Vacuum Evaporator Distillation Crystallization photo-4
RE-301 Rotary Vacuum Evaporator Distillation Crystallization photo-5
US$ 1000 - 2000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Touch Science
Place of Origin:
China
Model Number:
RE-301
Contact Supplier Request Quote Chat Now
Henan Touch Science Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou, Beijing, Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Touch Science
Place of Origin China
Model Number RE-301
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty One Year
Weight 38Kg
Dimension(L*W*H) 660*330*970mm
Condition New
Voltage 220V/50Hz
Application Distillation
Power(W) 40W
Power Source Electric
Process Vacuum Distillation

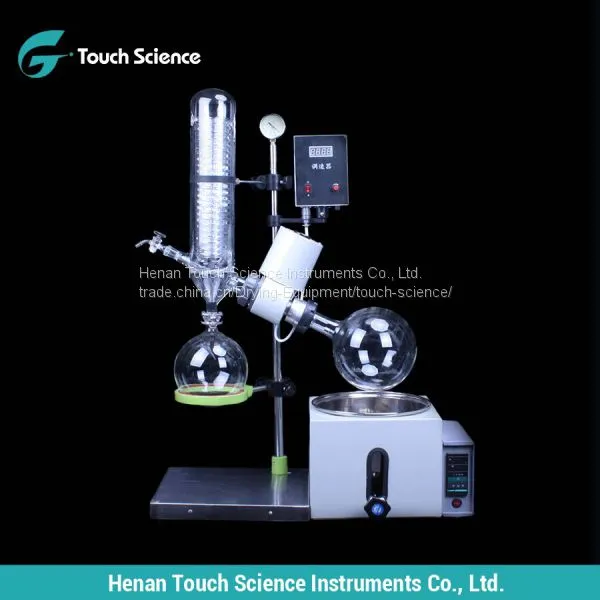

RE-301 Rotary Vacuum Evaporator Distillation Crystallization

Product Description

Introduction:

Rotary vacuum evaportaor is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It can be used for distillation, evaporation, concentration, extraction, separation and solvent recovery etc. Widely used in chemistry, pharmacy, lab and biology.

Features:

1. AC motor, stepless speed regulation, no brushes, no sparks, long life;
2. Automatic lifting, easy and quick operation;
3. High borosilicate glass, good physical and chemical properties;
4. Stepless speed control and LCD speed display;
5. PTFE sealing parts, tight sealing, high vacuum degree, high evaporation rate and recovery rate;
6. Teflon heating bath, even temperature, fully enclosed design.

Parameters:

Model
RE-2000B
Re-5299
RE-201D
RE-301
RE-501
RE-5000
Evaporating Flask(L)
2
1/24#(0.25-2L)
2
3
5
5
Receiving Flask(L)
1
0.5/24#
1
2
2
2
Rotating Motor(W)
40
30
40
Rotating Speed(R/MIN)
0~120
0~180
Water(Oil) Bath Power(W)
1500
1200
1500
Temperature Control Range
RT～99℃
RT-399℃
Temperature Fluctuation(℃)
±1
±2
±1
Evaporation Rate(H2O)
≥1L/h
≥1.5L/h
Max Vacuum Degree
＜133pa(1.33mbar,1Torr，0.098Mpa)
Water Bath Size(mm)
Φ230*130
Φ240*150
Φ240*150
Φ240*150
Φ280*170
Condenser
Vertical Condenser
Lifting Mode
Electric
Mannal
Water(Oil) Bath Mannal Lifting
Electric
Lifing Height(mm)
0~120
0~150
Voltage
220V/50Hz or as your request
Sealing Mode

PTFE,Fluoro Rubber Sealing

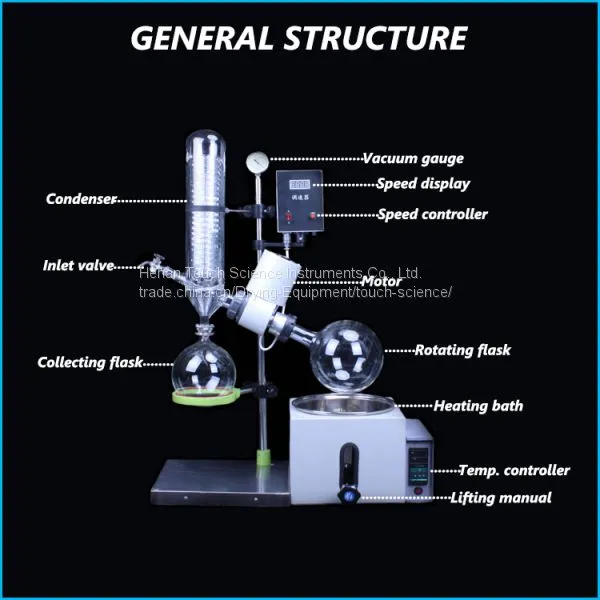

Detailed Images

301


Packing & Delivery

Packing:

-The rotary vacuum evaporator glass parts will be wrapped with foam, then put into the carton;

the mainbody parts will be packed in wooden cases.

-Both neutral and customized packaging can be available.

Shipping:

Usually we ship the goods by one of three methods as below. You can chose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.

Shipping method
Note
By express
Door to door, very convenient, don't need to do customs clearance or pick-up
By air to the airport
Airport to airport, you need to do customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By air and dispatch
Airport to door. You need to cooperate with our shipping broker to do customs clearance and don't need to pick up at the airport.


Our Company
Henan Touch Science Instruments Co., Ltd

     Founded and based in Henan, China, Touch Science is a professional manufacturer and exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more then 15 years of manufacturing experience with rotary vacuum evaporator, glass reactors, drying ovens, chillers, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europ, Chile, Japan, India, etc.

     We attach importance to every customer and every order. 100% customer satisfaction is always our first priority. We provide quantity discounts and will reply to your requests within the same business day. Our goal is to build up business partnerships with friends around the world.

Contact Us

Contact person: Anna Gu
Email: anna(@)
Tel/What'sapp: +86 18337135840
Instragram: guyuye227
Phone: 86-371-86051511
Henan Touch Science Instruments Co., Ltd

Add: Room 2109, #56 Zijingshan Road, Guancheng, Zhengzhou, Henan, China

Product Tags: Rotary Vap , Mini Rotary Evaporation , Lab Crystallizer Equipment
