5L Lab Vacuum Distillation Unit Rotavap Re-5000E

5L Lab Vacuum Distillation Unit Rotavap Re-5000E photo-1
5L Lab Vacuum Distillation Unit Rotavap Re-5000E photo-2
5L Lab Vacuum Distillation Unit Rotavap Re-5000E photo-3
5L Lab Vacuum Distillation Unit Rotavap Re-5000E photo-4
5L Lab Vacuum Distillation Unit Rotavap Re-5000E photo-5
US$ 1000 - 2000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Touch Science
Place of Origin:
China
Model Number:
RE-5000E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Zhengzhou Tianjin
Delivery Detail:
3 days
Brand Name Touch Science
Place of Origin China
Model Number RE-5000E

5L Lab Vacuum Distillation Unit

Introduction:

     5L lab vacuum distillation unit is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It can be used for distillation, evaporation, concentration, extraction, separation and solvent recovery etc. Widely used in chemistry, pharmacy, dab and biology.

Features:

1. AC motor, stepless speed regulation, no brushes, no sparks, long life;
2. Automatic lifting, easy and quick operation;
3. High borosilicate glass, good physical and chemical properties;
4. Stepless speed control and LCD speed display;
5. PTFE sealing parts, tight sealing, high vacuum degree, high evaporation rate and recovery rate;
6. Teflon heating bath, even temperature, fully enclosed design.

Parameters:

Tips: All the lab vacuum distillation unit below can be make in 110~120 voltage.

Model
RE-2000B
Re-5299
RE-201D
RE-301
RE-501
RE-5000
Evaporating Flask(L)
2
1/24#(0.25-2L)
2
3
5
5
Receiving Flask(L)
1
0.5/24#
1
2
2
2
Rotating Motor(W)
40
30
40
Rotating Speed(R/MIN)
0~120
0~180
Water(Oil) Bath Power(W)
1500
1200
1500
Temperature Control Range
RT~99℃
RT-399℃
Temperature Fluctuation(℃)
±1
±2
±1
Evaporation Rate(H2O)
≥1L/h
≥1.5L/h
Max Vacuum Degree
<133pa(1.33mbar,1Torr,0.098Mpa)
Water Bath Size(mm)
Φ230*130
Φ240*150
Φ240*150
Φ240*150
Φ280*170

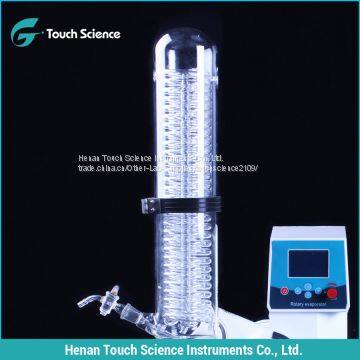

Condenser
Vertical Condenser
Lifting Mode
Electric
Mannal
Water(Oil) Bath Mannal Lifting
Electric
Lifing Height(mm)
0~120
0~150
Voltage
220V/50Hz or as your request
Sealing Mode
PTFE,Fluoro Rubber Sealing
Detailed Images

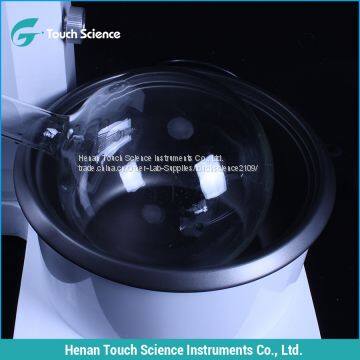

Heating Bath

Material: aluminium alloy and teflon

Size: Φ280*170mm

Capacity: 10L

--Fully enclosed heating

--Constant temperature

--Efficient and durable

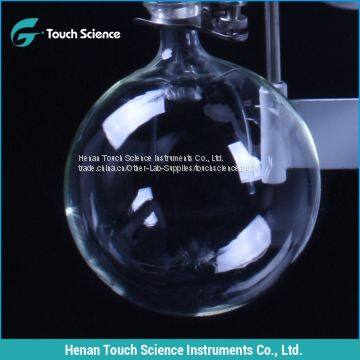

Receiving Flask

Material: GG-17 high borosilicate glass

Capacity: 2L

Temp. range: -100℃~400℃

--High temperature resistance

--Anti-corrosion

--High strength and hardness

Control Panel

LCD screen

Temperature and rotating speed display

Stepless speed regulation

Precise temperature control

Easy operation

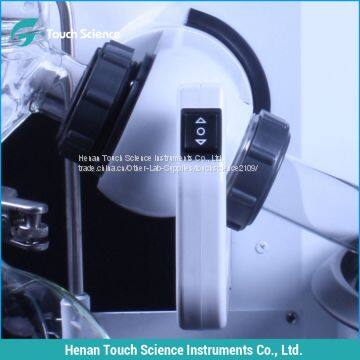

Drive Head and Lifting Button


Strong force and steady rotation

Continuous rotating and stable

No brush and spark

Easy lifting

Durable service

Packing & Delivery
Picking:

-The 5L lab vacuum distillation unit glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
-Both neutral and customized packaging can be available.

Shipping:

Usually we ship the goods by one of three methods as below. You can chose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.

Shipping Method
Note
By express
Door to door, very convenient, don't need to do customs clearance or pick-up
By air to the airport
Airport to airport, you need to do customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By air and dispatch
Airport to door. You need to cooperate with our shipping broker to do customs clearance and don't need to pick up at the airport.
Our Company
Henan Touch Science Instruments Co., Ltd

     Founded and based in Henan, China, Touch Science is is a professional manufacturer and exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more than 15 years of manufacturing experience with 5L lab vacuum distillation unit, glass reactors, drying ovens, chillers, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europe, Chile, Japan, India, etc.
     We attach importance to every customer and every order. 100% customer satisfaction is always our first priority. We provide quantity discounts and will reply to your requests within the same business day. Our goal is to build up business partnerships with friends around the world.

Contact Us
Contact person: Tina
Email: tina(@)
Tel/What'sapp: +86 13393723769
Instragram: ts.tina.sun
Phone: 86-371-86051511
Henan Touch Science Instruments Co., Ltd

Add: Room 2109, #56 Zijingshan Road, Guancheng, Zhengzhou, Henan, China
