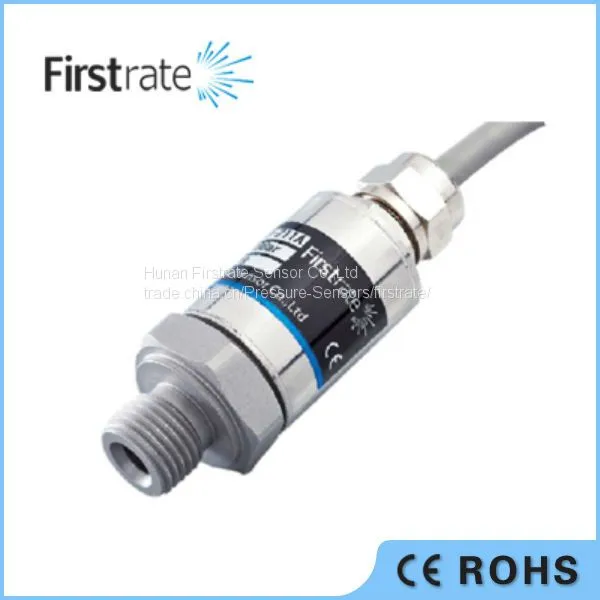

Help CenterFST800-211B Low Price 4-20mA / 0-5V Ceramic Pressure Transmitter, Ceramic Pressure Transducer / Sensor
Related Products
-
FST800-201 RoHS Approved Universal Industrial Pressure Sensor, MEMS Pressure SensorsUS$ 1000 - 2000MOQ: 1 Set -
FST800-501 Miniature Pressure Transducer, Piezoelectric Pressure Transducer,melt Pressure TransducerUS$ 1000 - 2000MOQ: 1 Set
-
FST800-501A Manufacturer Economic Air Conditioner Refrigerant Pressure SensorUS$ 1000 - 2000MOQ: 1 Set
-
FST800-213 High Accuracy Range to be 7000bar High Pressure SensorUS$ 1000 - 2000MOQ: 1000 Sets
-
FST800-211 CE and RoHS Approved Universal 4-20mA Pressure TransmitterUS$ 1000 - 2000MOQ: 1 Set
Product introduction
FST800-211B Ceramic piezo-resistive pressure transmitter is a ceramic piezo-resistive pressure-sensitive core which made by Hotpress moulding technique, it is featured with the advantage of strong anti-corrosion, wear-resistance, anti-shock. The product is built in a high-performance transmission circuit which compensate the offset, sensibility and temperature offset. It is featured with the strong interference resistance. The consummate welding seal technology and refined assembly assured the good quality and excellent performance
Features
· Solid ceramic sensitive diaphragm
· laser-calibrated zero and full scale.
· strong anti-corrosion, wear-resistance, anti-shock and good stability
· Wide working temperature and small size
Applicable Scope
· Industrial process testing and control, Environmental controls
· Hydraulic and pneumatic systems
· Vales and servo actuator
· Air compressor, refrigeration and water treatment
· Chemicals , chemistry industry and medical instrument
Technical Index:
Project |
Parameter |
|
Standard Range |
Pressure type: gauge pressure |
|
Pressure range (bar) : 0~2…60 | ||
Technical Index |
Signal output |
4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC |
Signal line specification |
2wire 3wire 3wire 3wire |
|
Power supply |
9~30VDC 5VDC 9~30VDC 15~30VDC |
|
Accuracy |
±0.5%FS ±1%FS ±3% FS |
|
Working Temperature |
-20~+85°C |
|
Storage Temperature |
-40~+105°C |
|
Overload Pressure |
150% span |
|
Burst Pressure |
200% span |
|
Mechanical Vibration |
±20g |
|
Impact (11ms) |
100g |
|
Environmental Protection |
IP65 |
|
Housing |
Stainless steel |
|
Electrical connection |
Packard Hirschmann(Mini) Hirschmann(DIN43650) Direct Lead M12connector |
|
Pressure connection |
M20×1.5 M12×1.5 G1/4 NPT1/4 R1/4 7/16-20UNF |
|
EMC |
EN61000-6 |
|
Certificates |
CE RoHS |
|
