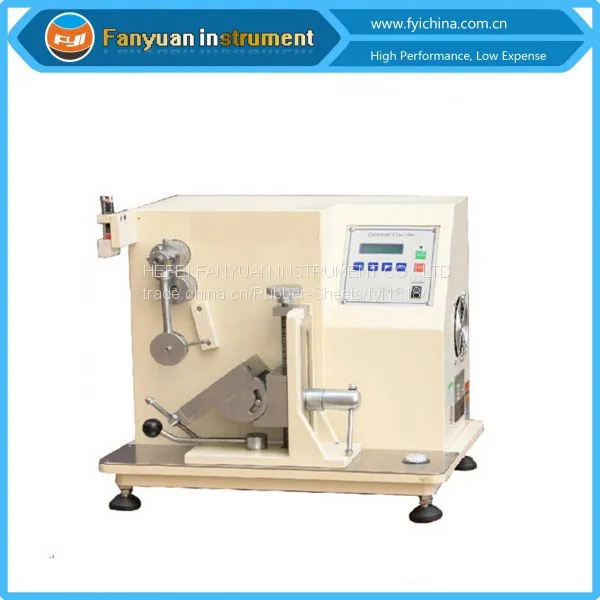

Heel Impact Fatigue Tester
MODEL NO.
DW9710 Heel Impact Fatigue Tester
Application:
DW9710 Shoe Heel Impact Fatigue Tester is used to determine impact strength of heels of ladies' shoes to continuous impact. Blow heels with certain impact energy and frequency until fatigue failure happens to judge heels' durable quality.
Related Standards:
STANDARDS |
BS-5131 |
SATRA TM21 |
Note: this Heel Impact Fatigue Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features:
l LCD counter;
2 Adjustable specimen bracket;
3 Easy to operate.
Key Specification:
l Impact energy 0.68 J/blow
2 Impact frequency 60 blows/min
3 Adjustment range of specimen bracket
Up and down 90mm
Left and right 80mm
Angle 0~180°
4 Impact hammer ￠57×20mm
5 Center distance between drive shaft and impact hammer 152mm
6 Impact head
Length 35mm
Width 20mm
Radius 3mm
Thickness 6mm
7 Distance between the top of impact head
and the center of impact hammer 64mm
8 Counter LCD, 0~999,999
9 Dimensions 500×450×500mm
10 Weight approx. 69kg
11 Power supply 220V, 50/60Hz single phase; 110V, 60Hz,single phase (as required)
Standard configuration:
No. |
Item |
Quantity |
1 |
Main machine |
1set |
2 |
Clamps |
1set |
3 |
Impact hammer |
1set |
4 |
User manual |
1copy |
Optional Accessories:
No. |
Item |
1 |
ISO17025 Certificate (CNAS certificate) |
Good service and quantity .
A. We supply one year warranty and 12 hours service per day .
B. Our skilled engineer can go to your company for installation service
C. Our Shoe Heel Impact Fatigue Tester adopts top quality material including imported parts, most of the critical component are adopting first class brand .
D. Our company passed ISO and have strict quality control before delivery goods
E. We can customized and also supply OEM service
F.. We also can supply different language user's manual . The
user manual of Shoe Heel Impact Fatigue Tester can help you operate our machine easily.
G ; we supply operation video if customer need it . .
Payment and delivery :
A..We accept payment such as TT , Western union, and L/C,DP etc . you can contact with us if you need
B. Normally we can delivery time in 3-4 weeks it depend on we have stock or not .
