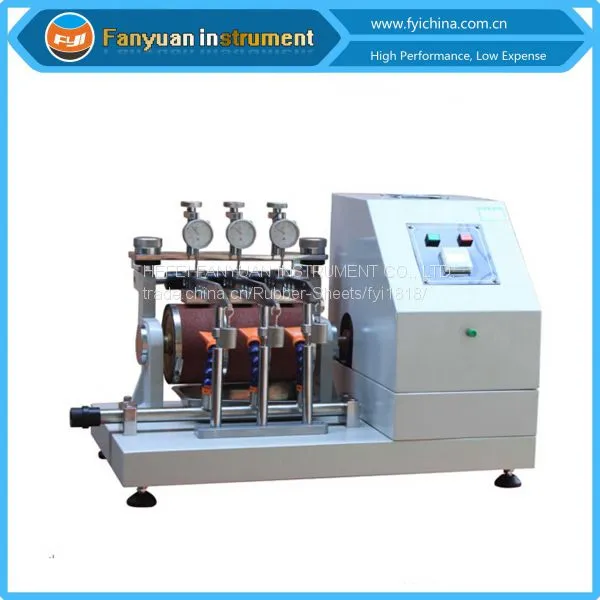

NBS Rubber Abrasion Tester
MODEL NO.
DW9650 NBS Rubber Abrasion Tester
Application:
DW9650 NBS Rubber Abrasion Tester is used to determine the resistance to abrasion of rubber products and sole materials. Mount specimens on this machine and rub specimens by the rotating abrasive paper, and then their abrasion condition will be checked out.
Related Standards:
STANDARDS |
ASTM D1630 |
Note: this NBS Rubber Abrasion Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features:
l Counter with 6-bit electronic LCD display;
2 Equipped with dust collector to collect powder produced in test process;
3 Worm reducer driving;
4 With protective equipments: short circuit protection, automatic stop, motor control device and support device for fine-tuning nut.
Key Specification:
l Specimen No. 3pcs
2 Specimen size 25.4×25.4×6.35mm
3 Load 2265g (5LB)×3pcs
4 Counter 6-bit electronic LCD display
5 Drum diameter ￠150mm
6 Speed 45±5rpm
7 Thickness selected mode dialgauge
8 Suction of dust collector 2kg/cm2
9 Abrasive paper 40# (imported)
10 Dimensions 550×300×500mm
11 Weight approx. 70kg
12 Power supply 220V, 50/60Hz single phase; 110V, 60Hz,single phase (as required)
Standard configuration:
No. |
Item |
Quantity |
1 |
Main machine |
1set |
2 |
40# abrasive paper |
2pcs |
3 |
Dust collector |
1set |
4 |
User manual |
1copy |
Optional Accessories:
No. |
Item |
1 |
ISO17025 Certificate (CNAS certificate) |
