HDT Vicat Softening Point tester

HDT Vicat Softening Point tester

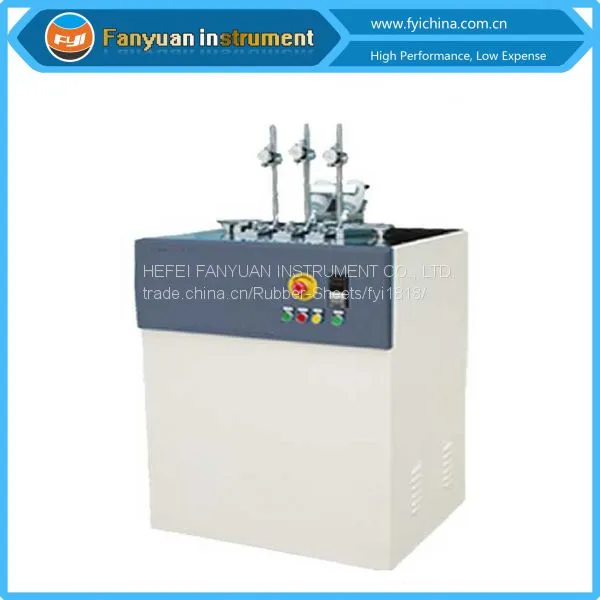

DW5340 HDT Vicat Softening Point tester

Application:

DW5340 HDT Vicat Softening Point tester , It is used to determine heat distortion temperature and Vicat softening temperature of high polymer materials, as an index of controlling quality and identifying thermal property of new products.

Sample is immerged in liquid and fixed by a pressure needle. Heat liquid with specified heating rate, sample becomes soft and will distort under the pressure. The liquid temperature is Vicat softening temperature when distortion reaches 1mm

Related Standards:

Note: this HDT Vicat Softening Point tester  can conform to but not limit to all the standards above, for more standards conformance, please contact us.

Features:

l         Deformation acquired via dial indicator, heating speed set by temperature controller;

2         Sample holder automatically up and down, possible to test 3pcs of samples at a time;

3        Nice appearance, novel design, high reliability, easy to operate;

4         Conforms to GB/T1633, GB/T1634, GB/T8802, ISO75, ISO306, ISO2507, etc.

Key Specification:

l         Temperature range                          room temperature~300℃

2         Heating speed                              (12±1)℃/6min (120±10℃/h)

(5±0.5)℃/6min (50±5℃/h)

3         Max. temperature error                       ±0.1℃

4         Measuring range of deformation                0~3mm

5         Measuring error of deformation                0.01mm

6         Heating medium                            methyl silicone oil

7        Heating power                              4kw

8         Cooling method

 more than 150℃                            natural cooling
    less than 150℃                             water cooling or natural cooling

9        Power supply                               AC220V±10%, 20A, 50Hz

l0         Dimensions                                720×700×1380mm

l1         Net weight                                 180kg

Standard Configuration:

*Weights:

Good service and quantity .

 A. We supply one year warranty and 12 hours service per day .

 B. Our skilled engineer can go to your company for installation service

 C. Our  HDT Vicat Softening Point tester  adopts top quality material including imported parts, most of the critical component are adopting first class brand .

 D. Our company passed ISO and have strict quality control before delivery goods

 E. We can customized and also supply OEM service

 F.. We also can supply different language user's manual . The

    user manual of HDT Vicat Softening Point tester can help you operate our machine easily.

 G ; we supply operation video if customer need it . .

 Payment and delivery :

A..We accept payment  such as TT , Western union, and L/C,DP etc . you can contact with us if you need

B. Normally we can delivery time in 3-4 weeks it depend on we have stock or not .

FAQ

 Q: Are your company a trading one or a factory?
A:Factory + trader , 30  years focusing on test instruments field

 Q What's about delivery time ?
A: Generally about 2-3 Weeks ,  If we have stock , we can arrange shipment within 3 days after re-tester in our factory , Some machine need customized. Deliver time is longer .

Q: What about the warranty with after - sales services?
A: The testing machine is guaranteed for 12 months by Hefei Fanyuan Instrument
of course .we can help you to repair your problem controller freely ,even it's not from our factory.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

 Q:What about  services and quality?
A:Each HDT Vicat Softening Point tester  must be carried out 100% quality examination and test when shipping and delivery goods.
Each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer's company when you need.
our products are widely recognized and trusted by users.
