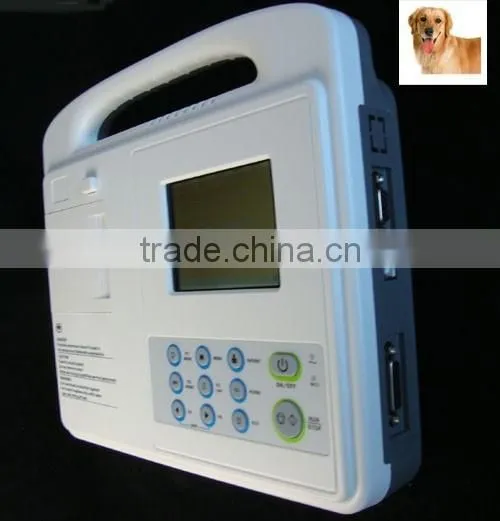

CE Approved Portable 1-channel Veterinary Electrocardiograph/EKG/ECG Machine EKG-901V

CE Approved Portable 1-channel Veterinary Electrocardiograph/EKG/ECG Machine EKG-901V thumbnail-1
CE Approved Portable 1-channel Veterinary Electrocardiograph/EKG/ECG Machine EKG-901V thumbnail-2
CE Approved Portable 1-channel Veterinary Electrocardiograph/EKG/ECG Machine EKG-901V thumbnail-3
CE Approved Portable 1-channel Veterinary Electrocardiograph/EKG/ECG Machine EKG-901V thumbnail-4
CE Approved Portable 1-channel Veterinary Electrocardiograph/EKG/ECG Machine EKG-901V photo-1
CE Approved Portable 1-channel Veterinary Electrocardiograph/EKG/ECG Machine EKG-901V photo-2
CE Approved Portable 1-channel Veterinary Electrocardiograph/EKG/ECG Machine EKG-901V photo-3
CE Approved Portable 1-channel Veterinary Electrocardiograph/EKG/ECG Machine EKG-901V photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Physical testing
Model Number:
EKG-901V
Place of Origin:
Beijing, China
Contact Supplier Request Quote Chat Now
Beijing Carejoy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Physical testing
Model Number EKG-901V
Place of Origin Beijing, China

Features:

  • Waveforms display and parameters configurable
  • Built-in high-resolution thermal printer
  • Built-in rechargeable lithium battery, AC/DC power supply
  • Well designed membrane keyboard

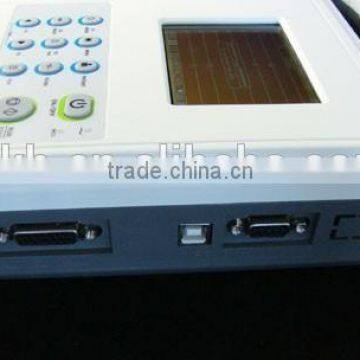

  • Input/Output port
  • Complete digital filtering, avoiding baseline drift, AC, EMG interference
  • Automatic baseline adjustment optimizing printing position
  • Auto/manual operation selectable
  • Lead-Off detection and alert
  • AHA/IEC five-lead veterinary ECG cable

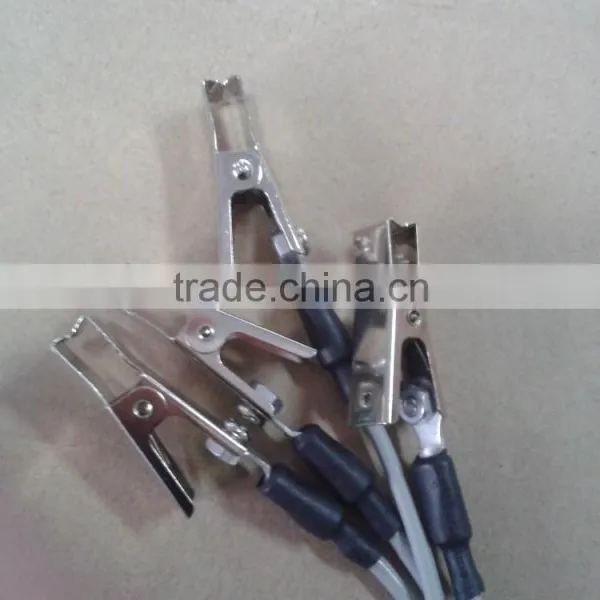

  • Alligator clip and flat clip electrodes

Specification:



Safety standard

IEC60601-1 class I, type CF

Input circuit

Floating; Protection against Defibrillator effect

Lead

Standard 12 Leads, Lead change automatically

Patient current leakage

<10μA

Input impedance

≥10ΜΩ

Calibrating voltage

1mV±3%

A/D conversion

 12 bit

Frequency response

0.05Hz~150Hz (IEC)

Time constant

>3.2seconds

CMRR

>80dB



>100dB (with filter)

EMG filter

35Hz (-3dB) / 25Hz (-3dB)

Sensitivity

1/2, 1, 2 (cm/mV), Conversion Deviation≤5%

Recording system

Thermal-array



8 dots/mm ( vertical )



16 dots/mm ( horizontal, 25mm/sec )

Paper speed

25, 50mm/s±3%

Recording paper

50mm,20m, high-speed roll

Input circuit current

≤50nA

Power supply

AC: 220V / 110V, 50/60Hz

DC: 12V rechargeable battery

Skin voltage tolerance

±300mV

Noise level

<15uVp-p

Dimensions

310×230×70mm

Dimension of packing

400×280×160mm

Weight

2.75kg
