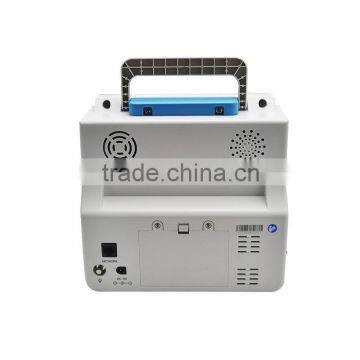

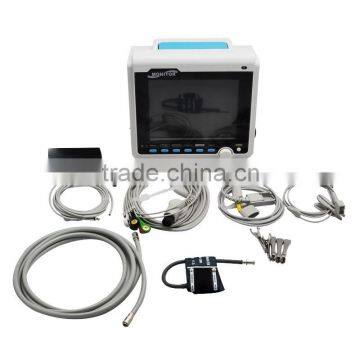

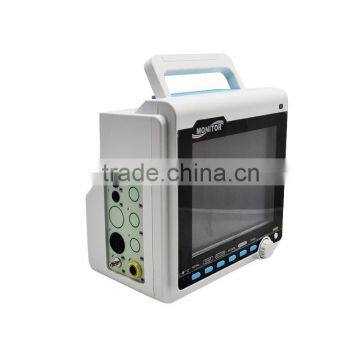

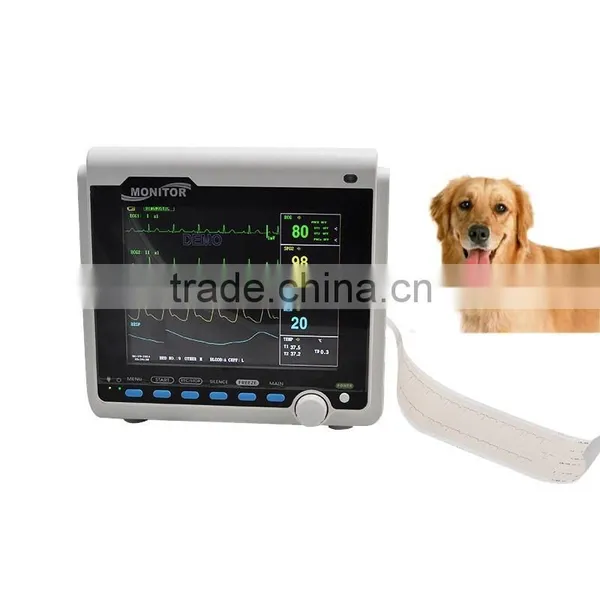

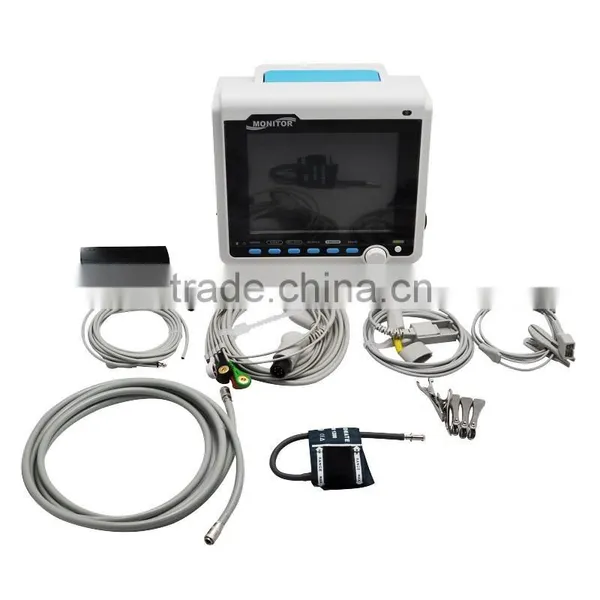

CE Approved Portable 8.4 Inch Veterinary Patient Monitor / Professional Six Parameter Vet Patient Monitor With Printer RPM-9000V
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Model Number:
RPM-9000V2
Properties:
Other, Diagnosis & Injection
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hand-held Vet Pulse Oximeter Veterinary Use Animal Blood OximeterNegotiableMOQ: 1 Set -
2015 New Handheld Vet Pulse Oximeter Veterinary Use With Free SoftwareNegotiableMOQ: 1 Set
-
2016 Hand-held Vet/Veterinary Pulse Oximeter-ShellyUS$ 10 - 100MOQ: 1 Set
-
CE Approved Portable Veterinary B-Ultrasound Diagnostic System With 3.5Mhz Convex Probe for Pets RUS-9000V2NegotiableMOQ: 1 Set
-
CE Approved 3.5Mhz Convex Probe Portable Veterinary Ultrasound Scanner for PetsNegotiableMOQ: 1 Set
Place of Origin
Beijing, China
Model Number
RPM-9000V2
Properties
Other, Diagnosis & Injection
Features:
- 8.4” color TFT display
- Unique digital SPO technology with excellent measurement and interference-free
- Audible and visual alarms with adjustable alarm range
- Anti electrosurgical interference and defibrillation
- Can be connected with LAN to work with central monitoring system
- Powerful data management and storage capacity
- Suitable for vet use
Standard configuration:
- ECG, NIBP, SPO2, RESP, TEMP, PR, Built-in rechargeable battery
Optional:

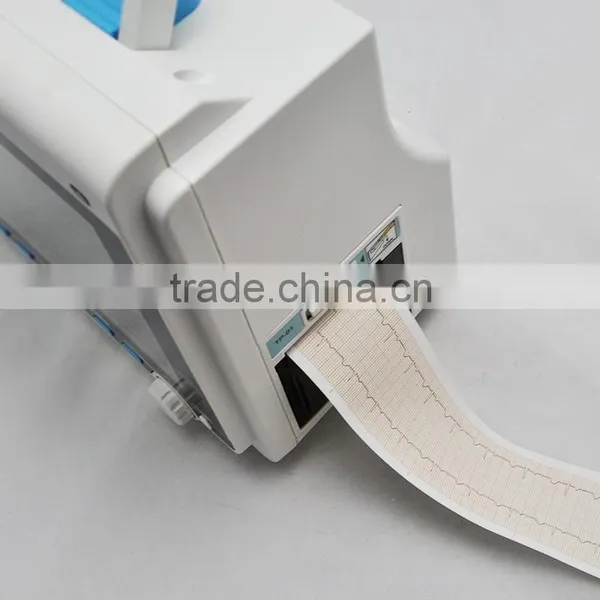

- 2-IBP, ETCO2, Thermal printer
Technical Specifications:
ECG:
- Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)
- Lead selection: I, II, III, avR, avL, avF, V
- Waveform: 2 ch
- Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
- HR and Alarm Range:
Adult: 15 ~ 300 bpm
Neo/Ped: 15 ~ 350 bpm
Accuracy: ±1% or ±1bpm, which great
Resolution: 1 bpm
Sensitivity: >200uV P-P - Differential Input Impedance: >5MΩ
- CMRR:
Monitor: >105dB
Operation: >105dB
Diagnosis: >85dB - Electrode offset potential: 300mV
- Leakage Current: <10uA
- Baseline Recovery: <3s after Defi.
- ECG Signal Range: 8mV(Vp-p)
- Calibration Signal: 1mV (Vp-p), 5% Accuracy
- ST Segment measure and alarm: -2.0 ~ +2.0 mV
NIBP:
- Method: Oscillometry
- Mode: Manual, Auto, STAT
- Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90Min
- Measuring Period in STAT Mode: 5 Min
- Pulse Rate Range: 40 ~ 240 bpm
- Alarm Type: SYS, DIA, MEAN
- Measuring and alarm Range
Adult Mode:
SYS: 40 ~ 270 mmHg
DIA: 10 ~ 215 mmHg
MEAN: 20 ~ 235 mmHg
Pediatric Mode
SYS: 40 ~ 200 mmHg
DIA: 10 ~ 150 mmHg
MEAN: 20 ~ 165 mmHg
Neonatal Mode
SYS: 40 ~ 135 mmHg
DIA: 10 ~ 100 mmHg
MEAN: 20 ~ 110 mmHg
Resolution: 1mmHg - Over-pressure protection: YES
SPO2:
- Measuring Range: 0 ~ 100%
- Alarm Range: 0 ~ 100%
- Resolution: 1%
- Accuracy:
70% ~ 100%: 2 %
0% ~ 69%: unspecified - Actualization interval: About 1Sec.
- Alarm Delay: 10 Sec.
- Pulse Rate
Measuring and Alarm Range: 0~254bpm
Resolution: 1bpm
Accuracy: 2bpm
Alarm Delay: 10 Sec.
