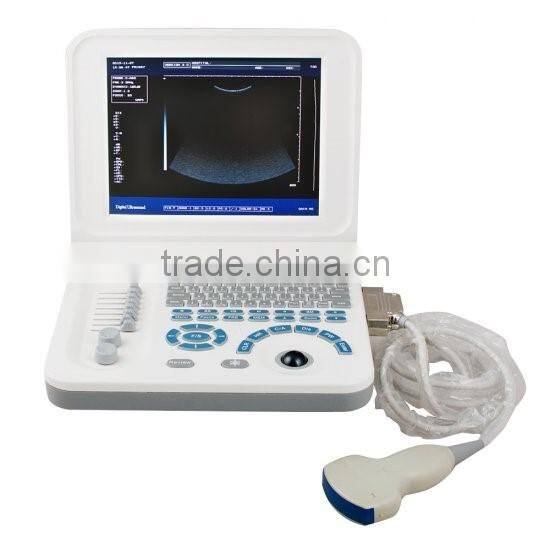

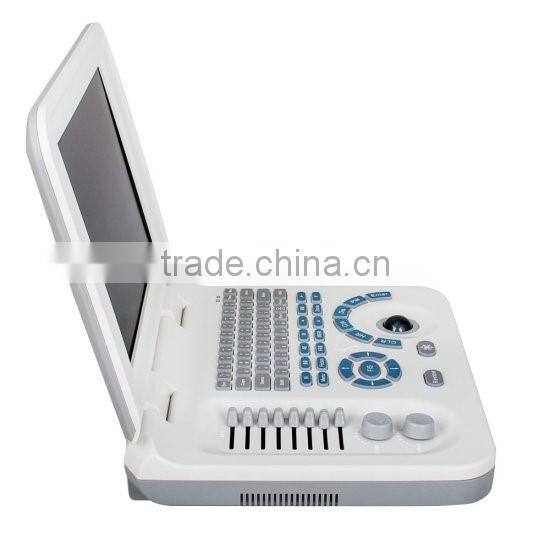

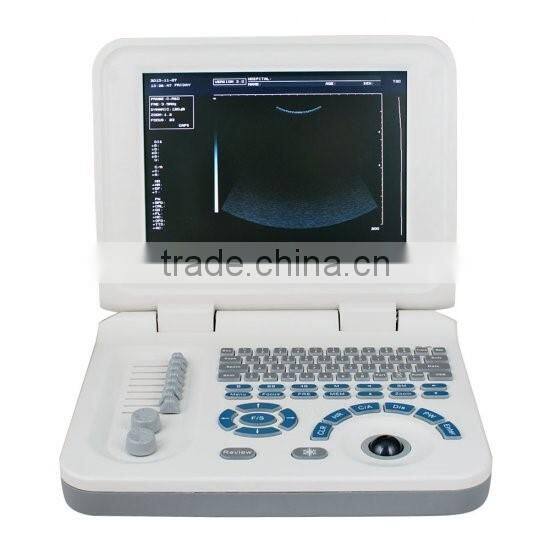

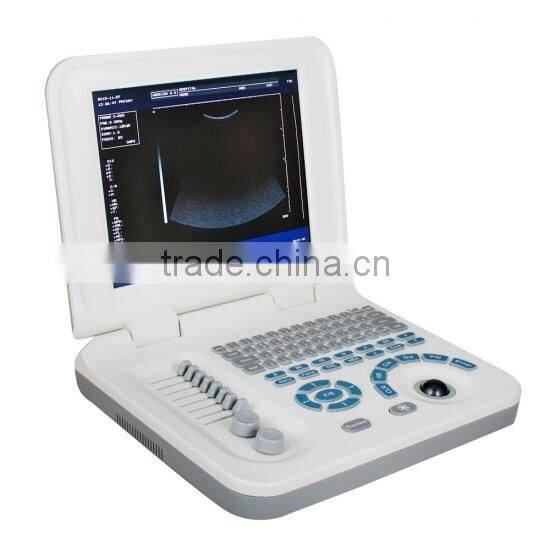

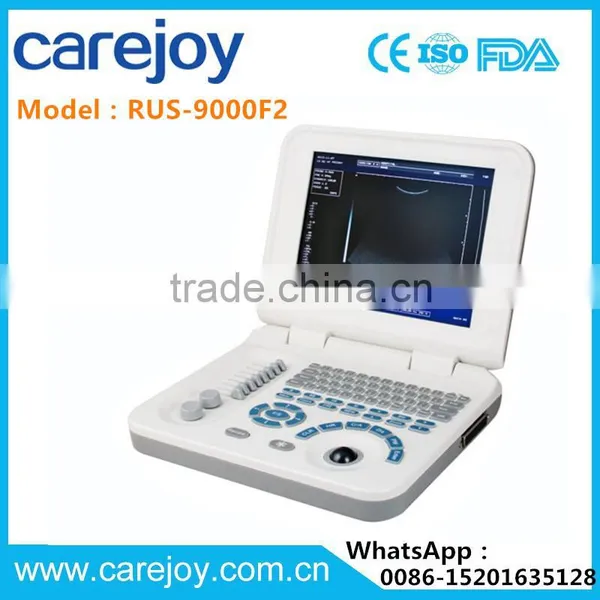

Full Digital Laptop Ultrasound Scanner
Specification for Laptop Ultrasound Scanner:
Scan pattern: electron convex array scanning

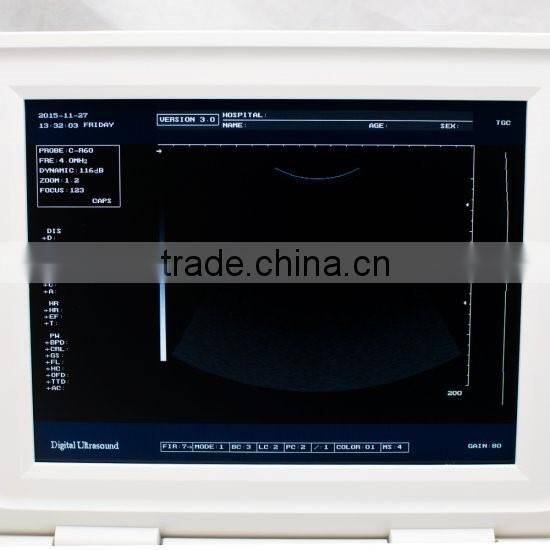

Display mode: B, B/B, 4B, B+M, and M
Image Magnification: x2.0
Dynamic range: 0~120dB adjustable.
Focus position: dynamic digital electron focusing point-by point.
Manu function: 8 types of γ correction, , line correlation, frame correlation, point-line correlation, linear interpolation and 16 types of pseudo color processing, etc.
Frequency conversion: T35R60GZ convex array probe, 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz
T65R13GZ cavity probe, 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz
Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL,etc), expected date of confinement and so on.
Annotation function: hospital name, patient’s name, gender and age: 64 body marks (with probe), full-screen character annotation, real-time clock display;
Puncture guide:The puncture guide line can be displayed under B mode.
Gain control: 8 segments TGC and full gain can be adjusted respectively.
Image polarity: left/right, black/white and up/down reverse.
Capacity cine loop: 256 consecutive images can be memorized successively when the real-time is displayed.
Image playback: series playback or check one by one
Permanent storage: 128 images

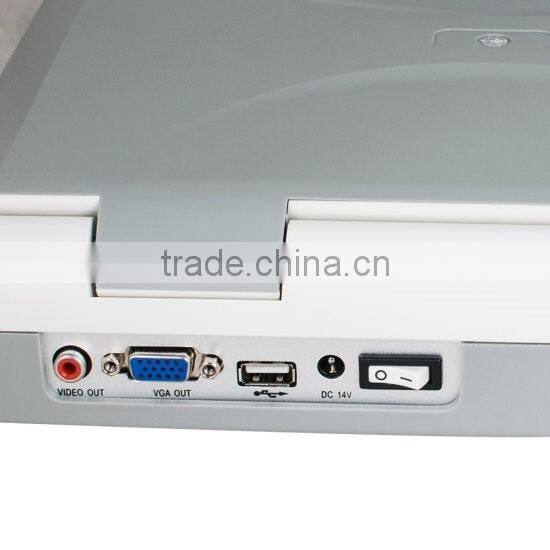

Output interface: SVGA video output offers connection to SVGA color display;
PAL video output offers connection to PAL display, video image recorder and image workstation, etc.
USB port.
Main Technical Indexes
Probe: 80-element 60R
Probe frequency: 3.5MHz
Scan depth: ≥180mm
Lateral resolution: ≤2mm (depth≤80mm)
≤3mm (80< depth≤130mm)
Axial resolution: ≤1mm (depth≤80mm)
≤2mm (80< depth≤130mm)
Blind area:≤3 mm
Geometry position precision: horizontal≤5%
vertical≤5%
Monitor: 10 inch SVGA mode HR LCD
Capacity cine loop: 256
Power supply: AC 220V±22V 50Hz
Input power: ≤ 300VA
Running hours: ≥8h
Packing list:
1×Main Unit
1×3.5MHZ convex array probe
1×Power adapter

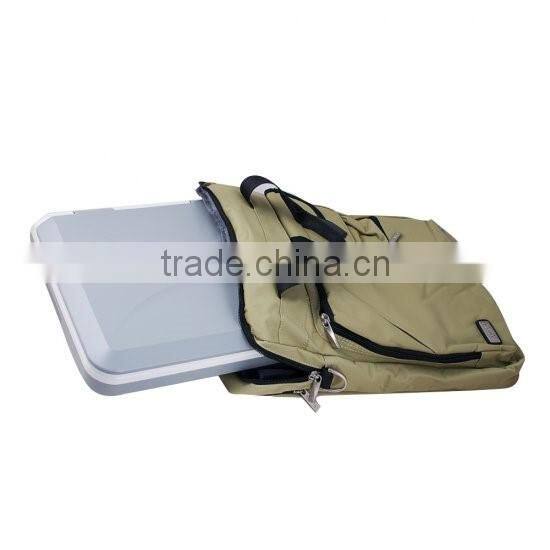

1×Carry bag
1×User Manual
